Uponor SmatrixMove User Manual

Two types of thermostats, both analogue and digital,
can be used in an Uponor Smatrix Move PLUS system.
The digital thermostats have a display relaying
information to the user and buttons for control.
Digital thermostats:
• Uponor Smatrix Wave Thermostat Dig T-166
• Uponor Smatrix Wave PLUS Thermostat D+RH
T-167 (Wave PLUS only)
• Uponor Smatrix Wave Thermostat Prog.+RH T-168

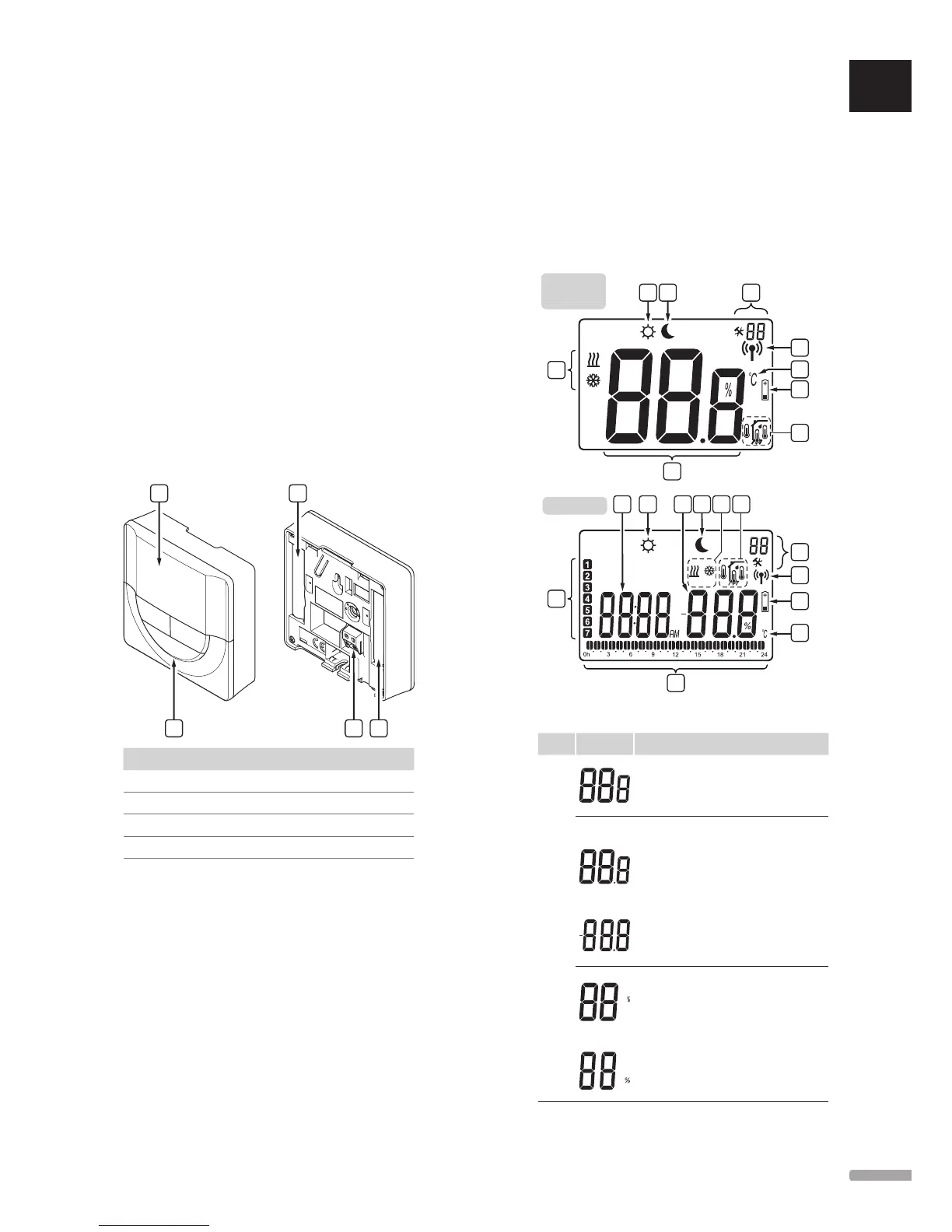

10.1 Thermostat layout
The illustration below shows the parts of the
thermostat.
D
DCB
A
Item Description
A Display
B Buttons
C Terminal for external sensor (non-polarised)
D Batteries
10.2 Display layout
The figure below shows all possible symbols and
characters that can be shown on the display:
A
E
B
C
D
FH I
G
T-166
T-167
L
C
B
D
F
EG
K
J IH A
T-168
Pos. Icon Description
A
T-166 and T-167 only
Message field using three
alphanumerical characters
T-166,
T-167
T-168
Temperature reading using a - or + sign,
two digital characters, a decimal point
and a character showing either 0 or 5
T-167
T-168
Relative humidity reading using two
digital characters. Indicated with a “%”
character
10 Operate Uponor Smatrix Wave/Wave PLUS digital
thermostats
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
59
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
