8.1 Principle of operation
Uponor Smatrix Move
The controller calculates the supply temperature
using the outdoor temperature and a heating curve.
The calculated supply temperature is compared to
the measured supply temperature. If the measured
temperature differs from the calculated, the controller
adjusts the flow through the mixer valve to raise or
lower the supply temperature.
Uponor Smatrix Move PLUS
The controller calculates the supply temperature
using the outdoor temperature and a heating curve.
The calculated supply temperature is compared to
the measured supply temperature. If the measured
temperature differs from the calculated, the controller
adjusts the flow through the mixer valve to raise or
lower the supply temperature.
If a thermostat is present in the system, it is also used
to further adjust the flow to the reference room and to
reach the setpoint quicker.
As soon as the temperature measured at the thermostat
is lower (heating mode) or higher (cooling mode) than
the setpoint temperature, a demand to change the room
temperature is created and sent to the controller. The
controller will open the actuator according to current
operating mode and other settings. Once the set
temperature is reached, the actuator closes.
8.2 Controller layout

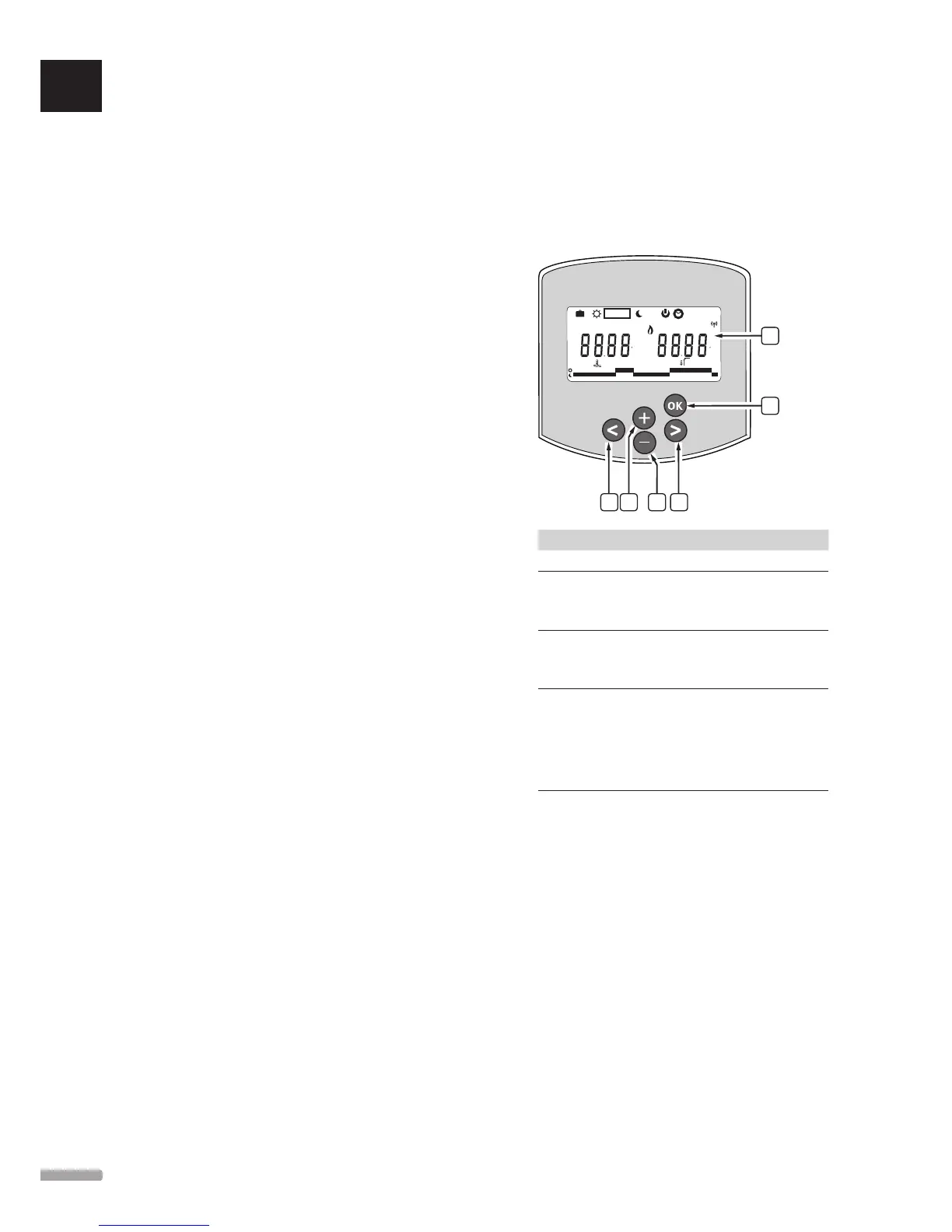

The illustration below shows parts of the controller.
0h 2 10 12 14 16 18 20
C
C
AUTO
22 24
468
P
BB
A
D
C C
Item Description
A Display
B Navigation buttons
Used for selecting mode, parameter, and
scheduling program
C The - and + buttons are used to:
• Adjust setpoint temperature
• Modify parameters in the settings menus
D The OK button is used to:
• Toggle between current status data, and
values of available sensors connected to the
controller
• Enter and exit the settings menu
• Confirm a setting
