4.2. PANO Collimator Alignment with EzAlign
1. Select PANO and click the Start button: The system will move into its capturing position and
Collimator auto-align will be started.
2. Remove the Bite Block.

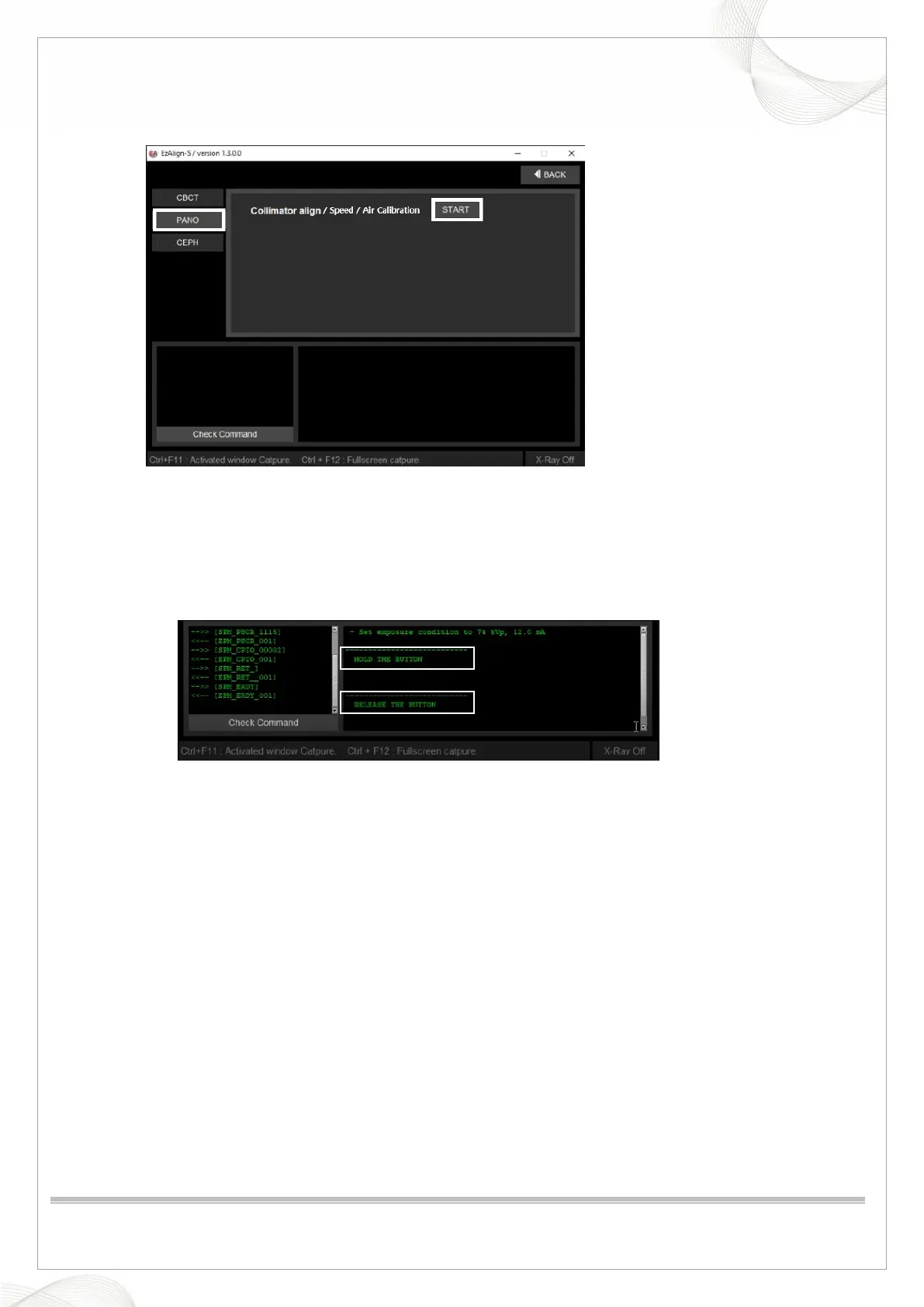

3. When you see the message HOLD THE BUTTON as marked in the white box below, press and
hold the exposure switch until RELEASE THE BUTTON message appears.
4. If the system displays the HOLD THE BUTTON message again instead of the succeeding
message, repeat step 3.
5. If the PANO Auto Alignment is completed successfully, the pop-up message which notifies the
completion of the alignment displays on the screen. Then, click the OK button to start PANO
Collimator Speed Alignment.
6. If the Error message appears, follow the guide. Then proceed the steps 1~5.
To Next Page
