Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
154 / 214
COPYRIGHT© 2020 VATECH.
2.4. CEPH Ear-Rod Alignment
1. Run the Console Software.
2. Click CEPH > High Resolution > Lateral > CONFIRM and wait until READY button is enabled.

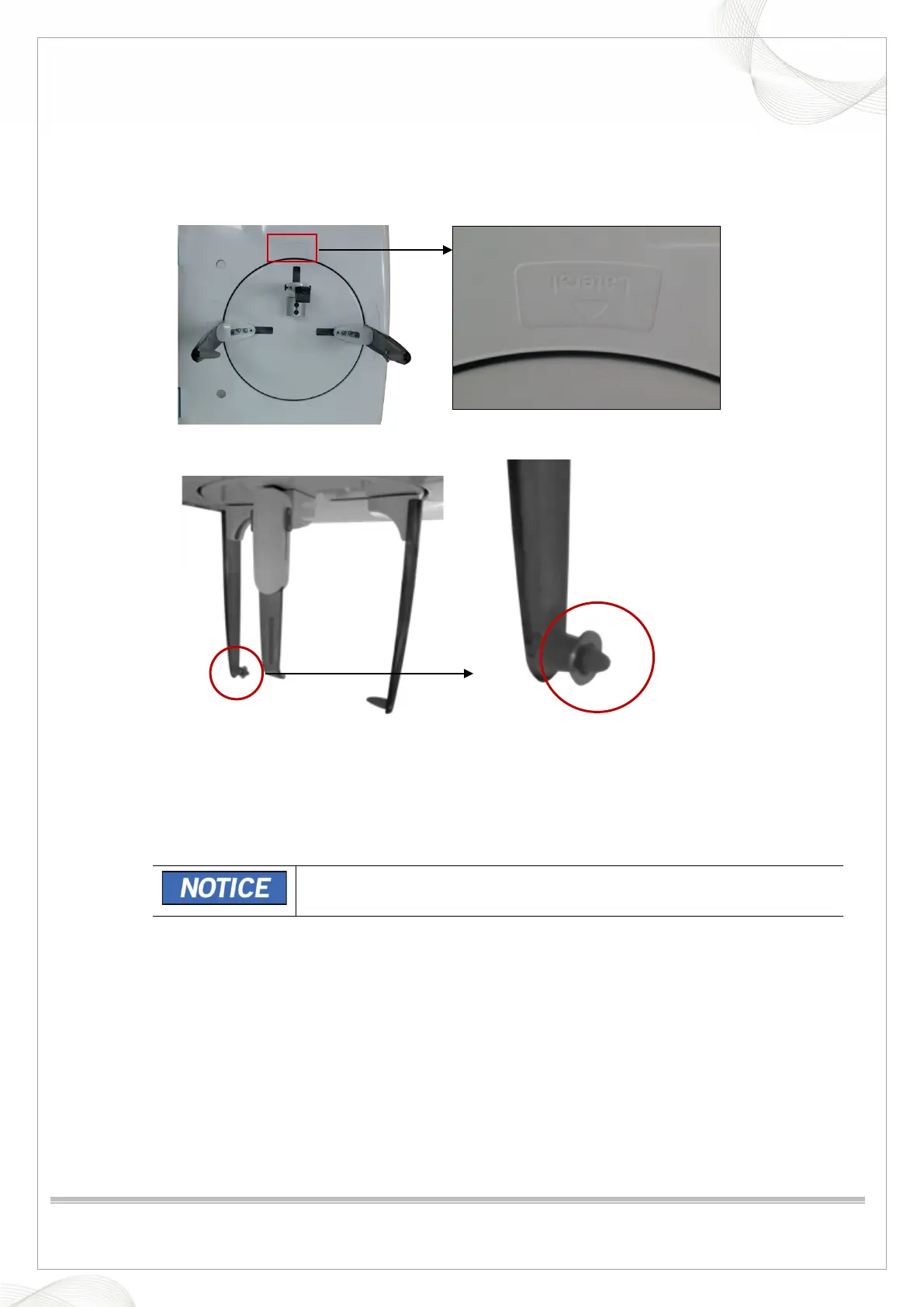

3. Turn CEPH Ear-Rod to the Lateral Mode position as shown in the figure.
4. Put a flat washer into the right Ear-Rod as shown below.
5. Click the READY button.
6. Perform the image acquisition according to the Console Software guidance.
7. When the image acquisition is completed, run the VAKCAP.exe file.
8. Click the Panorama tab > V Pan button to open the View16 program.
9. Click the Brw button and select the Capture.raw file to open the captured image.
• Capture.raw file path :
C:\VCaptureSW\Acquisition\Ceph\AnyCeph\Fast\PAN folder
To Next Page
