Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
129 / 214
COPYRIGHT© 2020 VATECH.
5.2. PANO Collimator Speed Alignment with EzAlign
1. After PANO Auto Alignment is completed, PANO Collimator Speed Alignment will be started
automatically.

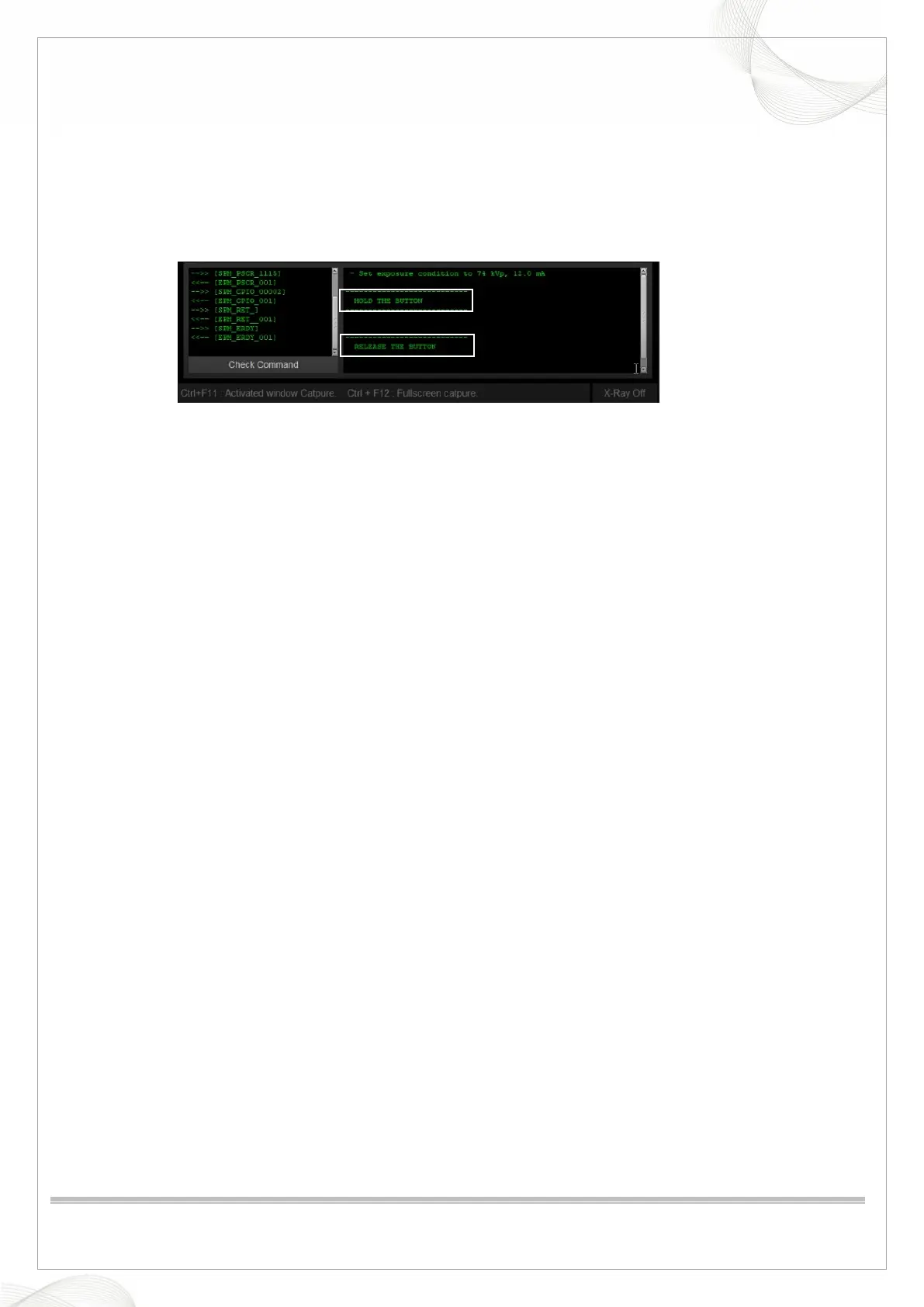

2. When you see the message HOLD THE BUTTON as marked in the white box below, press and
hold the exposure switch until RELEASE THE BUTTON message appears.
3. If the system displays the HOLD THE BUTTON message again instead of the succeeding
message, repeat step 2.
4. If the PANO Collimator Speed Alignment is completed successfully, the pop-up message
which notifies the completion of the alignment displays on the screen. Then, click the OK
button to finish.
5. If the Error message appears, follow the guide. Then click the Start button again.
To Next Page
