PaX-i3D Green (PHT-60CFO) User Manual
107
7 Acquiring CEPH Images
Ask the patient not to block the ruler on the nasal
positioner by his / her fingers. It could deteriorate image
quality.

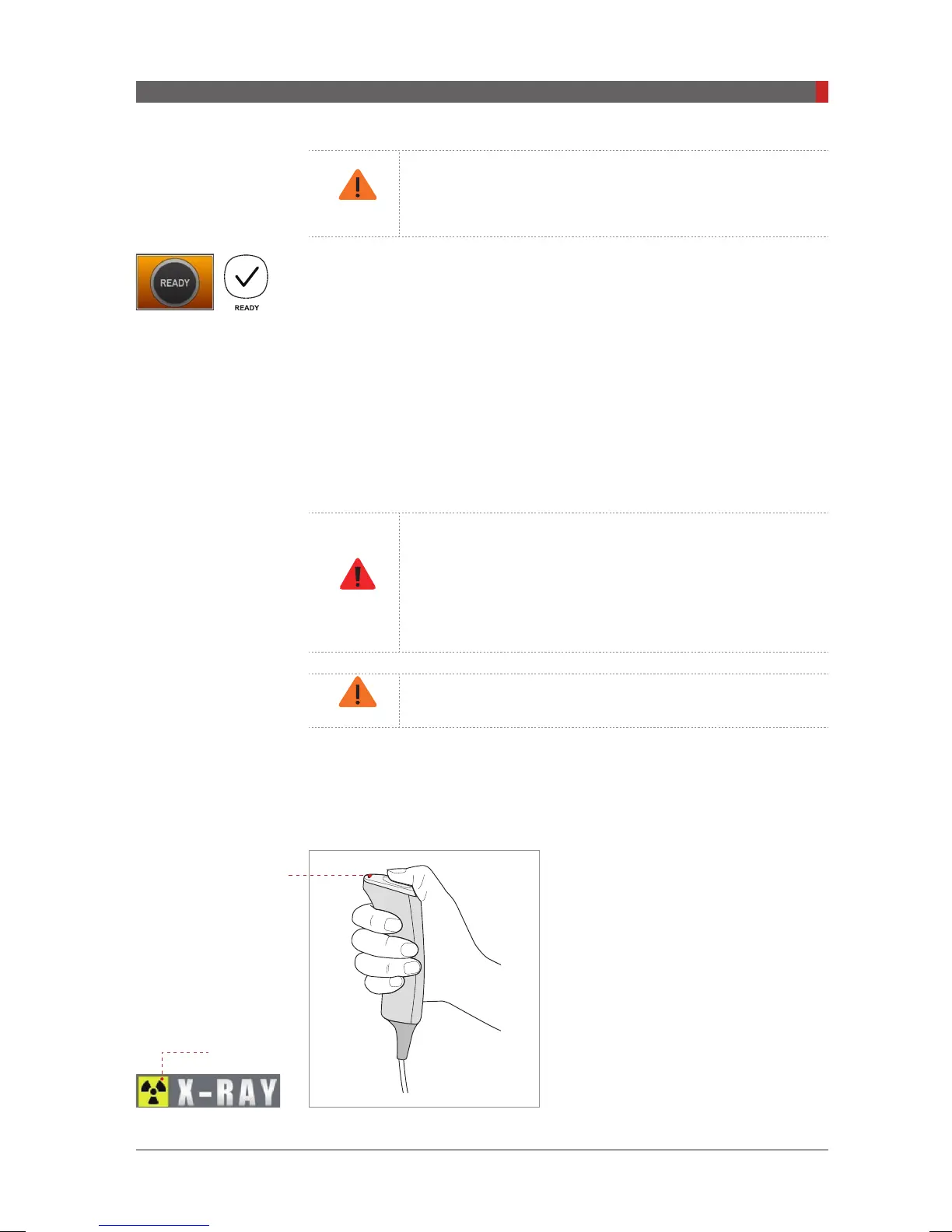

C. Click the
READY
button after the patient has been properly positioned. No
X-ray will be emitted at this point.
D. Proceed to section
7.3 Initiating X-ray exposure.
7.3
Initiating X-ray Exposure
The X-ray exposure method and process is the same for all CEPH modes. The example
and images below are taken from an X-ray performed in
CEPH Lateral
mode.
RNIN
- Do not operate the PC during exposure. Failure to
comply with this instruction may cause the system to
malfunction.
- The operator shall observe the X-ray safety regulations
applicable to their area at all times during the operation
of this equipment.
If an emergency occurs during image acquisition, release
the exposure switch to cease X-ray emission.
A. Leave the X-ray room and close the door. The operator must visually monitor
the patient at all times during image acquisition.
B. Press and hold down the exposure switch until image acquisition is complete.
During X-ray irradiation, ensure that
-
The LED lamp on top of the equipment
turns orange to indicate X-ray emission.
-
The warning lamp outside the X-ray
room turns on.
-
The sound (beep or music: optional) goes off.
-
The radiation symbol on the upper left
corner of GUI turns yellow to indicate X-
Rays are being emitted.
X-ray ON
Exposure indicator
light turns orange
Orange: Exposure
[PI3DG_130U_44A_en]User Guide.indd 107 2016-05-24 오후 4:19:07
