PaX-i3D Green (PHT-60CFO) User Manual
124
8 Acquiring CT Images
8.4
Initiating X-ray Exposure
Perform the following process to acquire an image in CT mode.
RNIN
- Do not operate the PC during exposure. Failure to
comply with this instruction may cause the system to
malfunction.
- The operator shall observe the X-ray safety regulations
applicable to their area at all times during the operation
of this equipment.
A. Leave the X-ray room and close the door. The operator must visually monitor
the patient at all times during image acquisition.

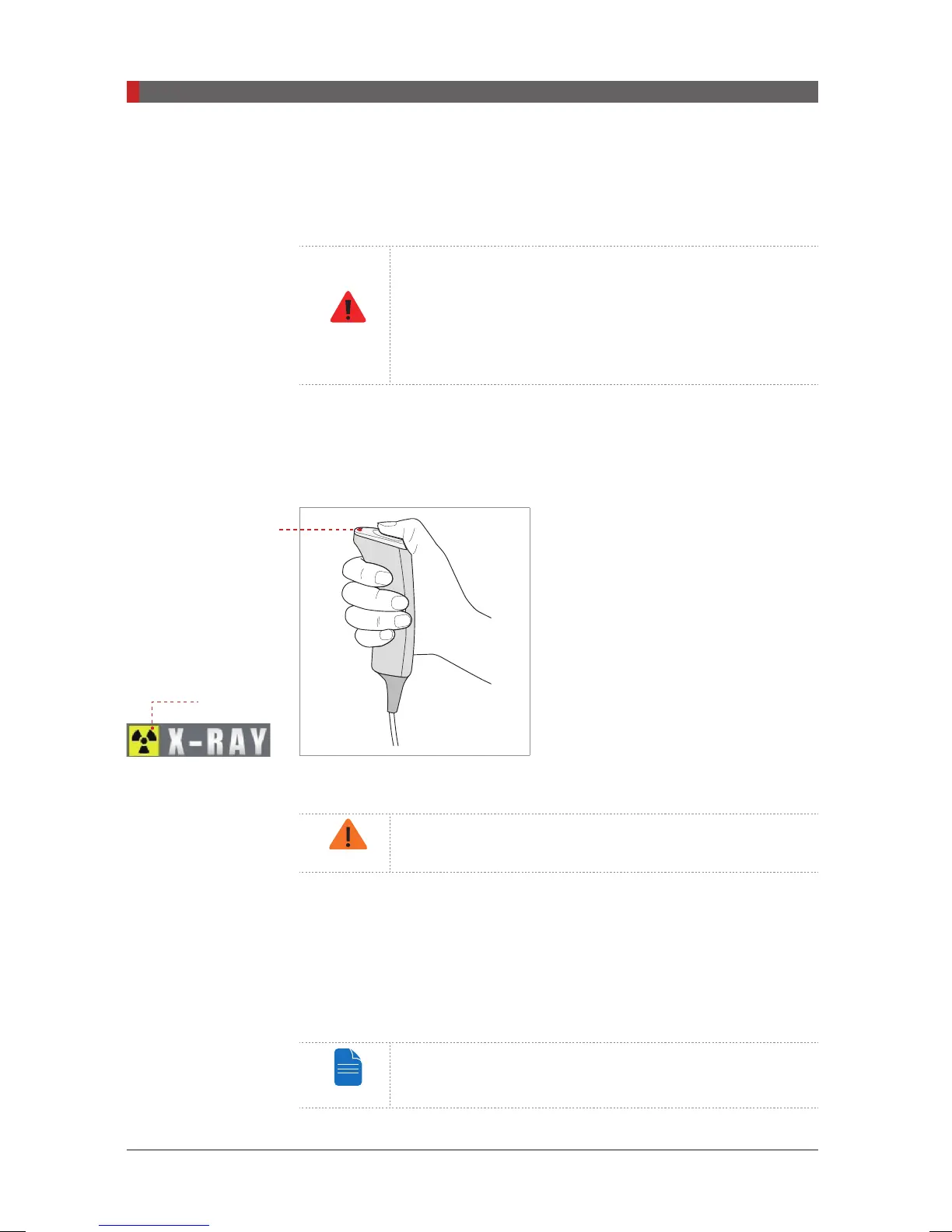

B. Press and hold down the exposure switch until image acquisition is complete.
During X-ray irradiation, ensure that
-
The LED lamp on top of the equipment
turns orange to indicate X-ray emission.
-
The warning lamp outside the X-ray
room turns on.
-
The sound (beep or music: optional) goes off.
-
The radiation symbol on the upper left
corner of GUI turns yellow to indicate X-
Rays are being emitted.
The image appears in real time on the imaging GUI.
If an emergency occurs during image acquisition, release
the exposure switch to cease X-ray emission.
C. The captured image is automatically reconstructed and converted into a DICOM
file. Click the Save button to store the file in the patient database (If automatic
save is selected in the program settings, the image will be saved automatically).
Once acquisition is complete, the image is automatically transferred to
EasyDent / EzDent-i.
For more details about 2D or 3D viewer, refer to EasyDent /
EzDent-i, and Ez3D plus / Ez3D-i user manual.
X-ray ON
Exposure indicator
light turns orange
Orange: Exposure
[PI3DG_130U_44A_en]User Guide.indd 124 2016-05-24 오후 4:19:13
