PaX-i3D Green (PHT-60CFO) User Manual

6 Acquiring PANO Images

6.3.1 PANO Standard and Bitewing mode

Positioning the patient

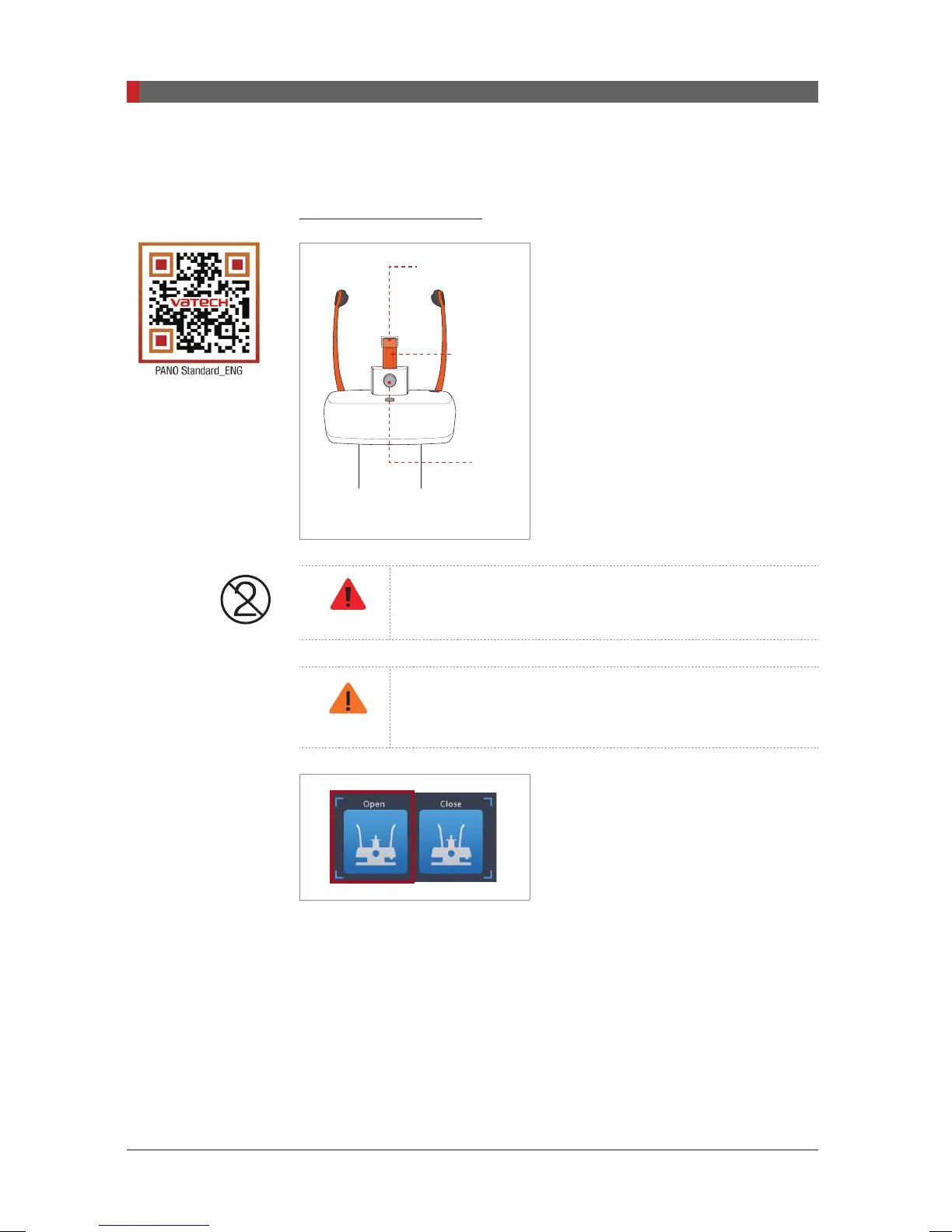

A. Insert the bite block into the Chinrest

receptacle on the equipment.

B. Place a hygienic cover over the bite

block.

RNIN

The hygiene cover for the bite block and chin support is

intended for single use only. Always replace the hygiene

cover for each new patient.

CAUTION

Disinfect the Chinrest, Chin support and bite block using

an alcohol-based cleaning solution and wipe away all

residue with dry cloth.

C. Open the temple supports by clicking

the temple support adjustment button.

D. Guide the patient —facing the Chinrest — to the equipment.

E. Adjust the height of the column using the column up/down button or switch

(optional) until the patient’s chin rests comfortably on the Chinrest.

Bite block

Hygiene cover

*To link to the video

manual: scan the

QR code with smart

phone or pad.

Lock /

Release knob

for bite block

[PI3DG_130U_44A_en]User Guide.indd 82 2016-05-24 오후 4:18:57
