PaX-i3D Green (PHT-60CFO) User Manual
34
3 PaX-i3D Green Imaging System Overview
3.3.2 Touch Screen
You can congure the parameter settings in each mode using the touch screen.
The
touch screen
on the equipment and
the imaging program (See 4.3
Imaging Software Overview)
on the PC are synchronized in real time, and
display the same parameter settings.
Never use pointed objects, such as a ballpoint pen or pencil,
to manipulate the LCD screen as they could scratch or
damage the LCD screen.

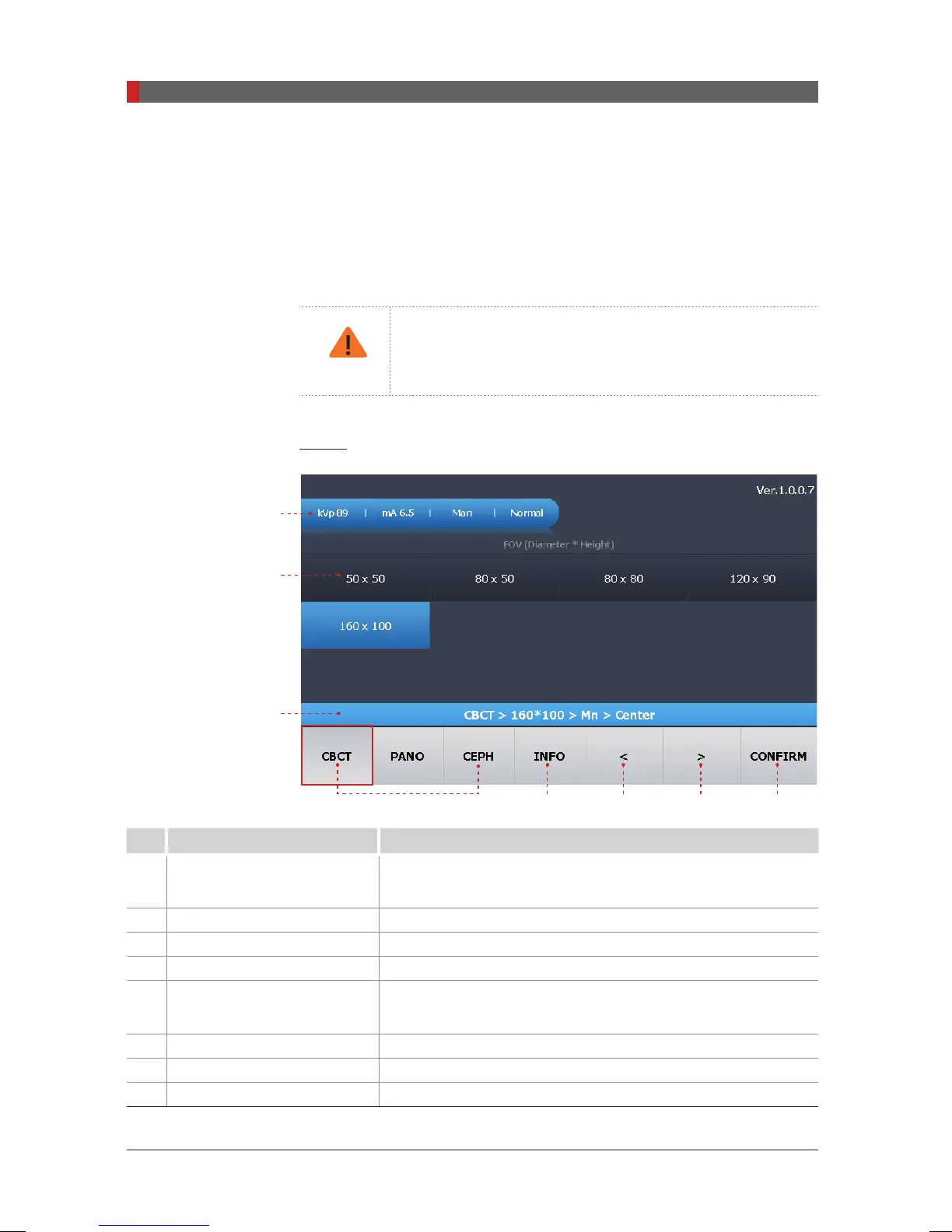

CBCT
No. Function Description
1
Imaging parameter settings
information
Displays currently set information such as patient type and
X-ray setting values.
2
FOV selection Shows the CT sensor model mounted.
3
Selection settings Displays the current selections in sequential order.
4
Imaging mode selection Select the imaging mode.
5
INFO
Enables the user to set a patient’s gender and X-ray intensity
and controls kVp / mA.
6
Back Moves to the previous level
7
Forward Moves to the next level
8
CONFIRM Click this button when the parameter settings are nished.
1
2
3
4 5 6 7 8
