98
Repair instructions
Final assembly

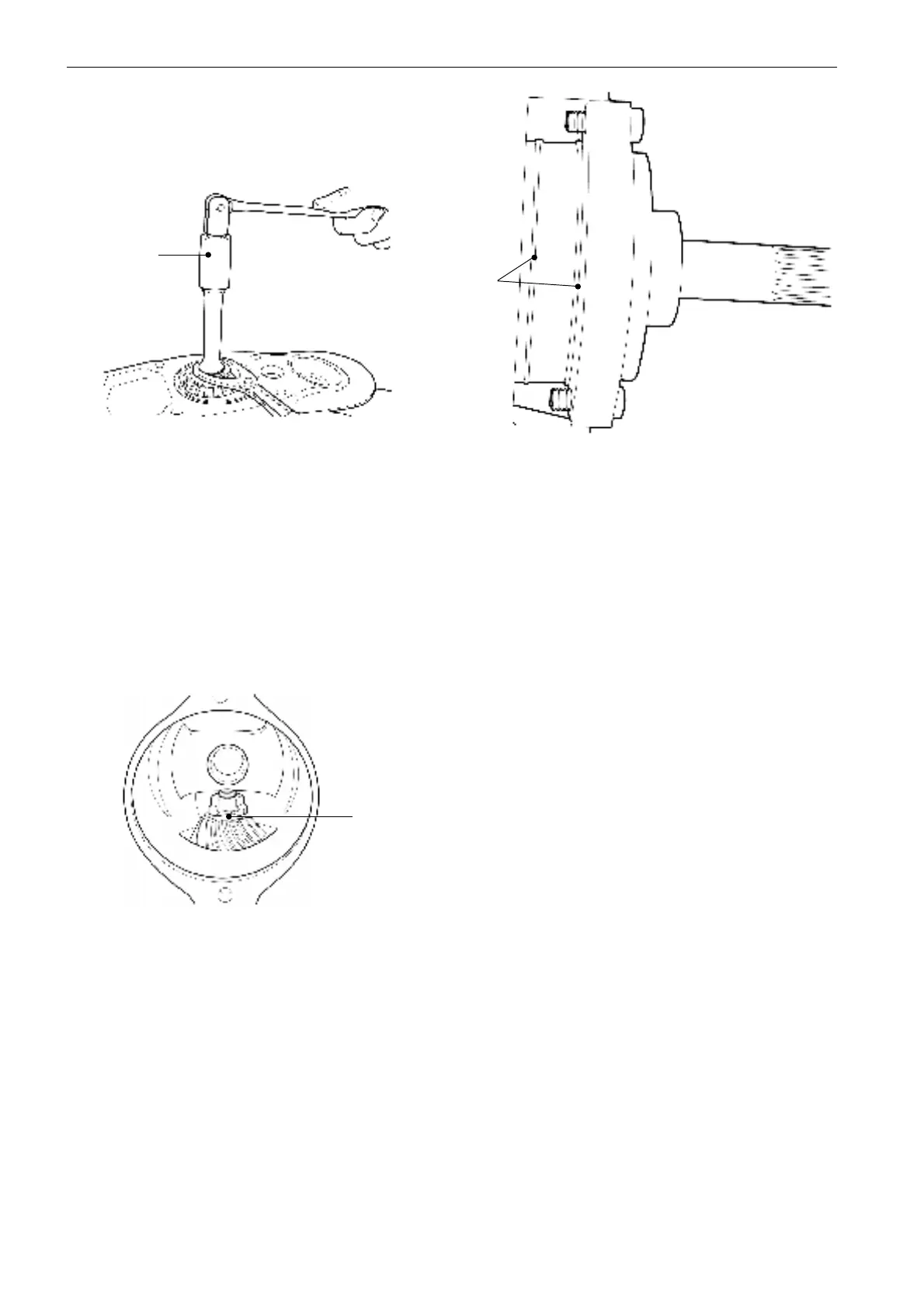

1. Dismantle pinion and gear and clean parts from
marking dye and then assemble with the calculated
shims. Then install the spacer ring, the locking ring
and the nut on the vertical shaft. Tighten the nut and
lock with the locking washer. Use special tool
884830 as a counter hold.
2. Tighten the pinion nut with a torque of 160 Nm
(118 lb.ft.). Then lock the nut with the locking washer
(1). Use special tool 884830 applied at the splines
shaft end as a counter hold.
3. Install the O-rings (1) in the propeller bearing hous-
ing. Coat the contact surfaces and the screws with
sealing compound, Volvo Penta part no. 1161099-5 or
Permatex
®
no. 3. Install the propeller bearing housing
in the gear housing and tighten the 2 Allen-head
screws.
NOTE! Turn the vertical shaft somewhat to allow the
gears to engage. Tightening torque 40 Nm
(29.5 lb.ft.).
1
1
884830
