Volvo Penta AQUAMATIC 290 User Manual

164

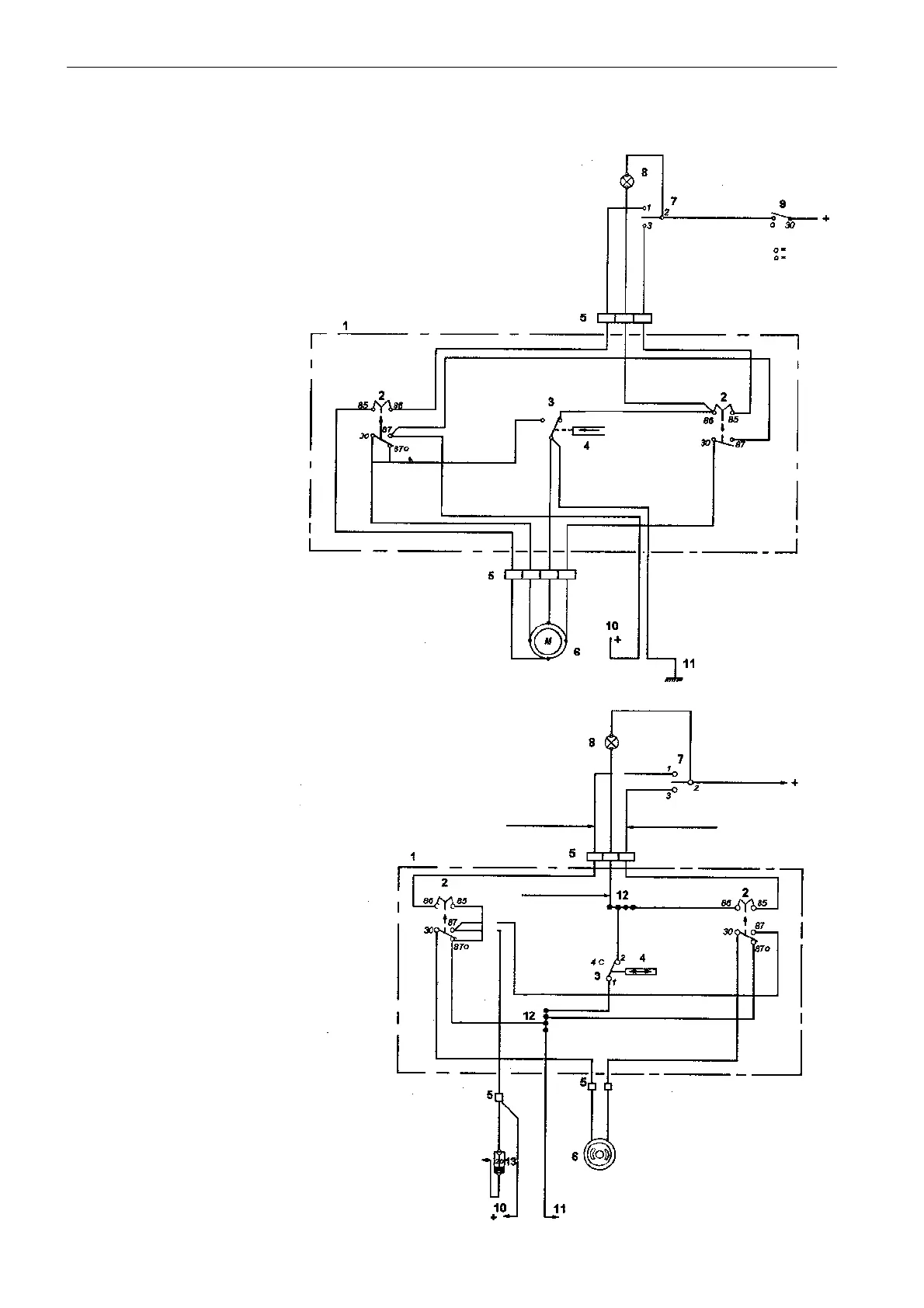

Electrical wiring diagrams
Model 280, tilting device
References:
1. Relay box
2. Relay
3. Limit switch
4. Push rod, retaining pawl
5. Connector
6. Electrical motor
7. Switch
8. Warning light
9. Key switch
10. Connected to 30 (+) on the
starter motor
11. Connected to engine (-)
12. Connector
13. Fuse, 20 Amps
USA model
Diesel
Gas 75
75
Up
Down
GN / Y 1.3
SB 1.3
SB 1.3
GN 1.5
BL 1.5
No
Com
No
Y 1.5
GN / Y 1.5
R 1.5
R 1.5
GN / Y 1.5
BL 1.5
BR 1.5
GN 1.3
GN / Y 1.5
SB 1.5
BL 1.5
BR 1.5
R 1.5
R 1.5
BL 1.5
BR 1.5
BL 1.5
BR 1.5
Y 1.5
GN / Y 1.5
SB 1.5
Up
Down
Y 1.5
SB 2.5
R 2.5
SB 2.5
SB 2.5
SB 2.5
BR 2.5
SB 1.5
BR 1.5
SB 2.5
R 2.5
R 2.5
R 6
Cable colour codes
R= red
SB = black
GN = green
BL = blue
BR = brown
GN/Y = green/yellow
Y = yellow
