Repair instructions
Disassembly, models
280, 285 and 290

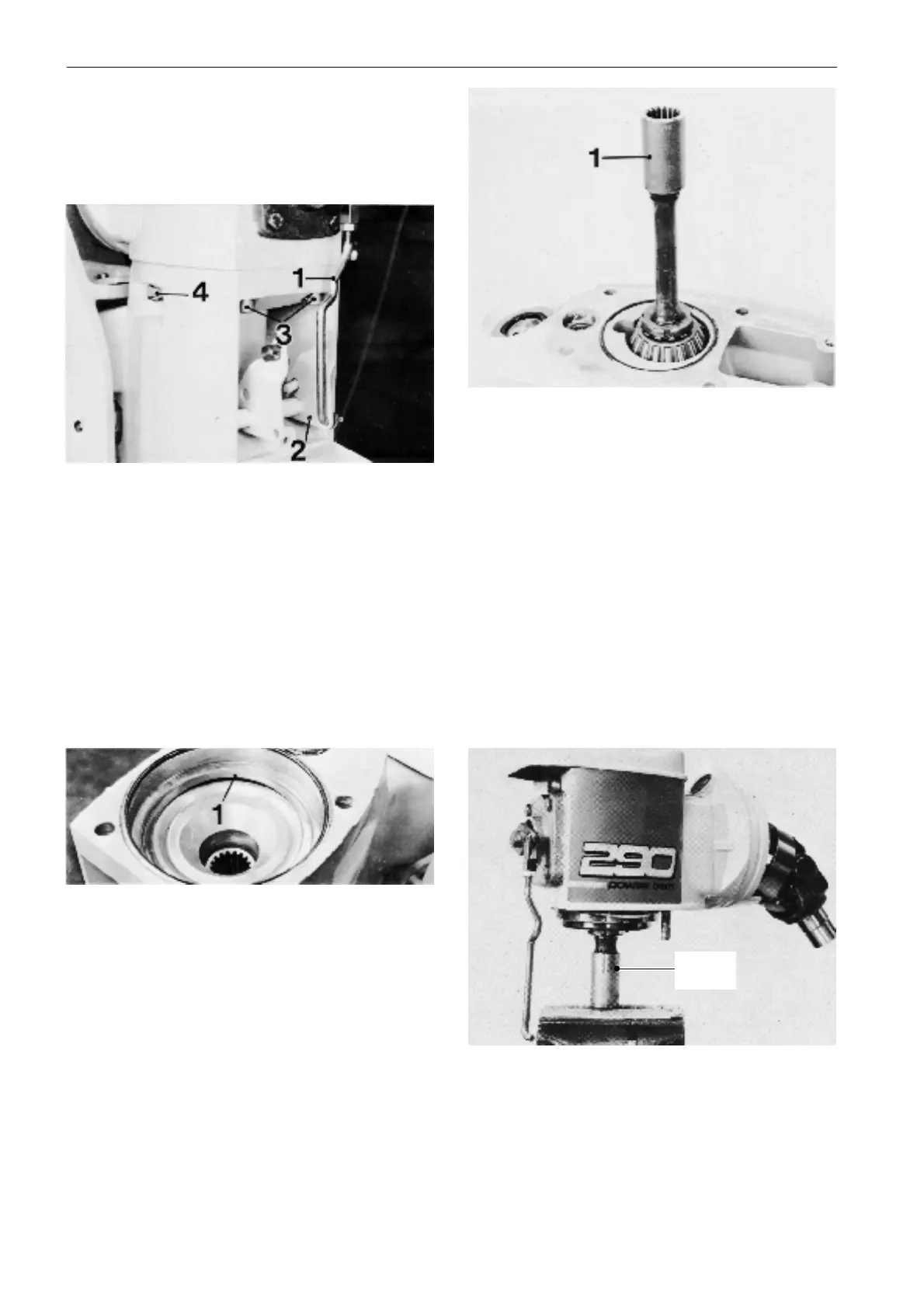

1. Remove the shift rod (1) from the shift plate (2). Re-
move the screws (3) and the nuts (4) holding the in-
termediate housing to the upper housing. Use a rub-
ber mallet to knock the housings apart. Knock care-
fully.
2. Keep check on the number of shims (1) between
the different housings and for all the gear sets in case
neither the gears, housing nor the bearings need to
be replaced. In this case the same shim thickness is
to be used.
3. Remove the 7 screws holding the lower gear hous-
ing to the intermediate housing. Use a rubber mallet
and knock the housings carefully apart. Lift off the
splines sleeve (1).
NOTE! On sterndrives of later manufacture the 4 big-
ger-sized screws are installed with stainless steel
washers. Take care of these washers.
4. Install the upper gear housing in the special tool
884264. This tool, of later manufacture, carries the
part number 884830.
884264
884830
