Trim system

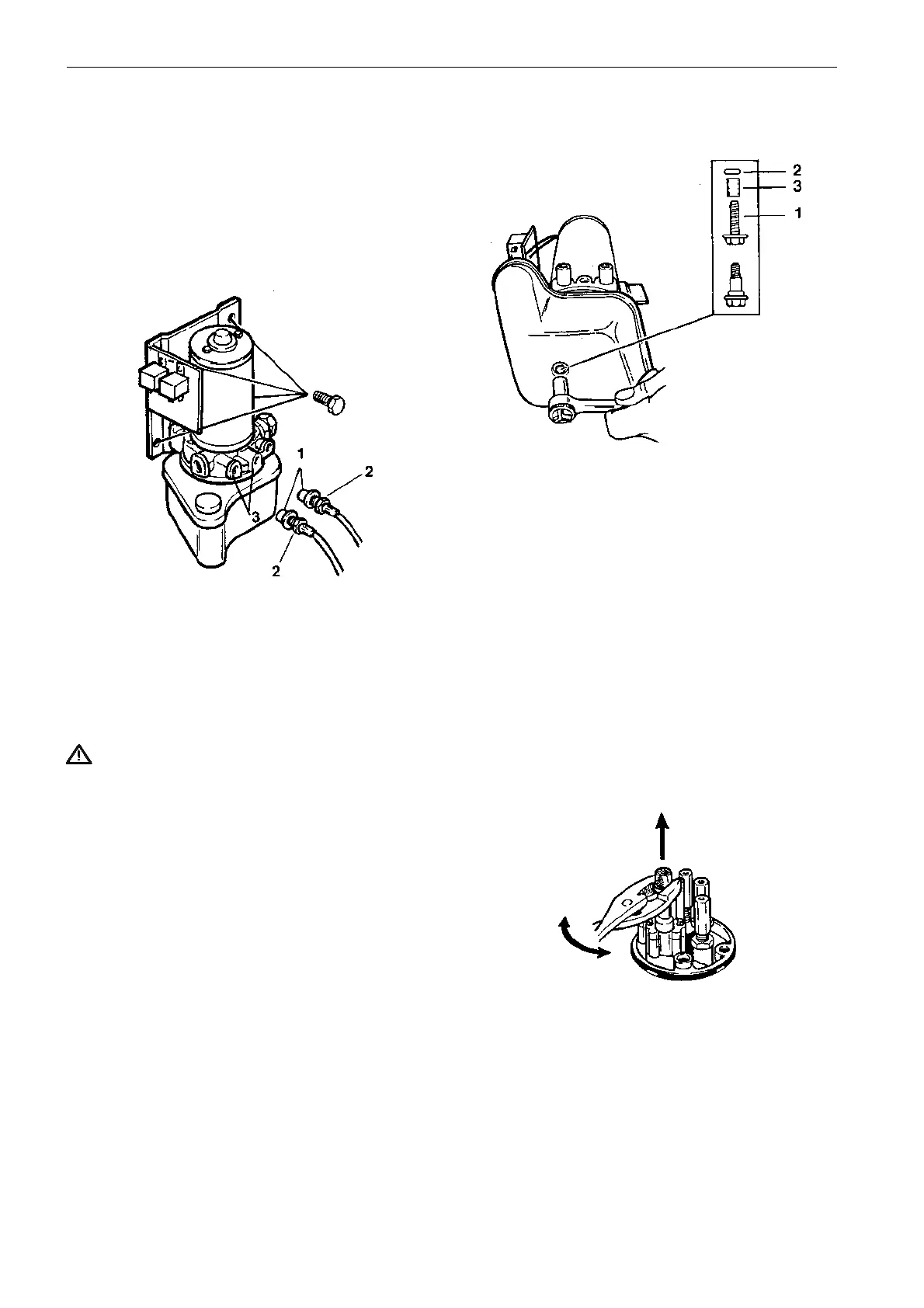

Removing the trim pump from the
boat
Turn off the main battery switch. Disconnect the
trim pump wiring harness, ground cable from the fly-
wheel housing, and the positive (+) cable from the
starter motor.
Note how the hydraulic hoses are connected to the
pump. Place a clean drain pan under the pump as-
sembly. Disconnect the hydraulic hoses. Install pro-
tective caps (1) over the hoses (2) and pump (3) to
prevent dirt from entering. Unbolt the oil pump mount-
ing bracket. Hold the pump upright to avoid oil spill-
age. Drain the oil from the pump.
WARNING! Always exercise great cleanliness
when working with hydraulic systems. Do not al-
low dirt or other impurities to enter the system.
Use lint-free rags when cleaning parts. Always
fill with clean oil of the recommended quality.
Replacing filters
Removing the oil reservoir
Remove the center bolt (1), together with the O-ring
(2) and sleeve (3) that holds the plastic reservoir, us-
ing an 8 mm socket. Remove the reservoir and the
rubber seal (8) (fig. showing the exploded view).
Grip the filter ring with pliers and pull upward while
twisting.
