77
Repair instructions

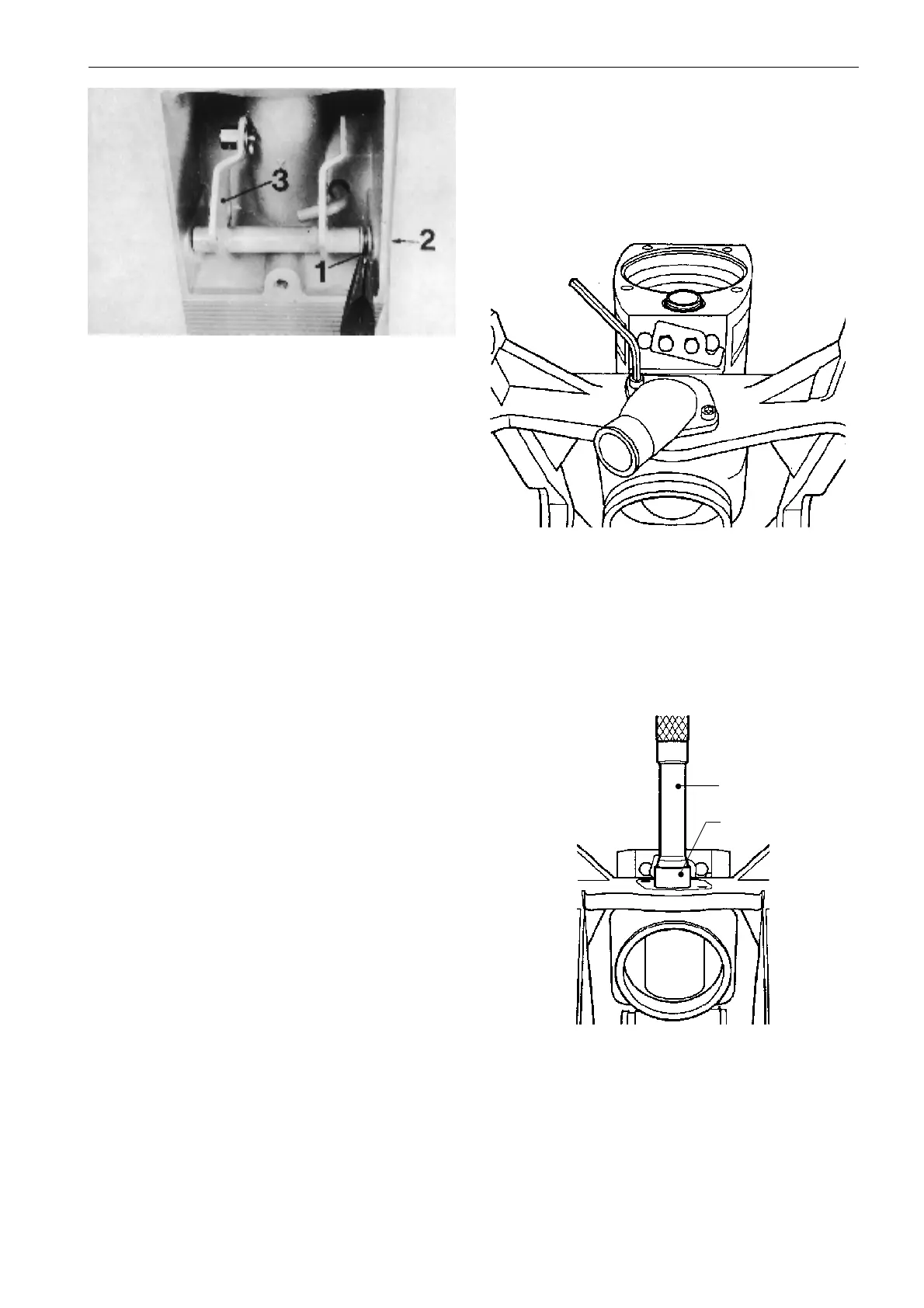

16. Install the shift yoke (3) and push in the shaft (2)
and lock it with the cotter pin (1).
NOTE! A washer must be installed on either side of
the cotter pin.
Reconditioning the
intermediate housing, model
290 and 290A
1. Remove the 2 screws holding the hose connection.
Remove the hose connection and the gasket.
2. Remove the yoke by driving out the steering spin-
dle. Use special tools 884311 and 9991801. Lift up the
attachment device of the trim cylinders and remove
the retaining pawl, the two wear washers, the plastic
washer and the guide washer from the steering yoke.
9991801
884311
