Repair instructions

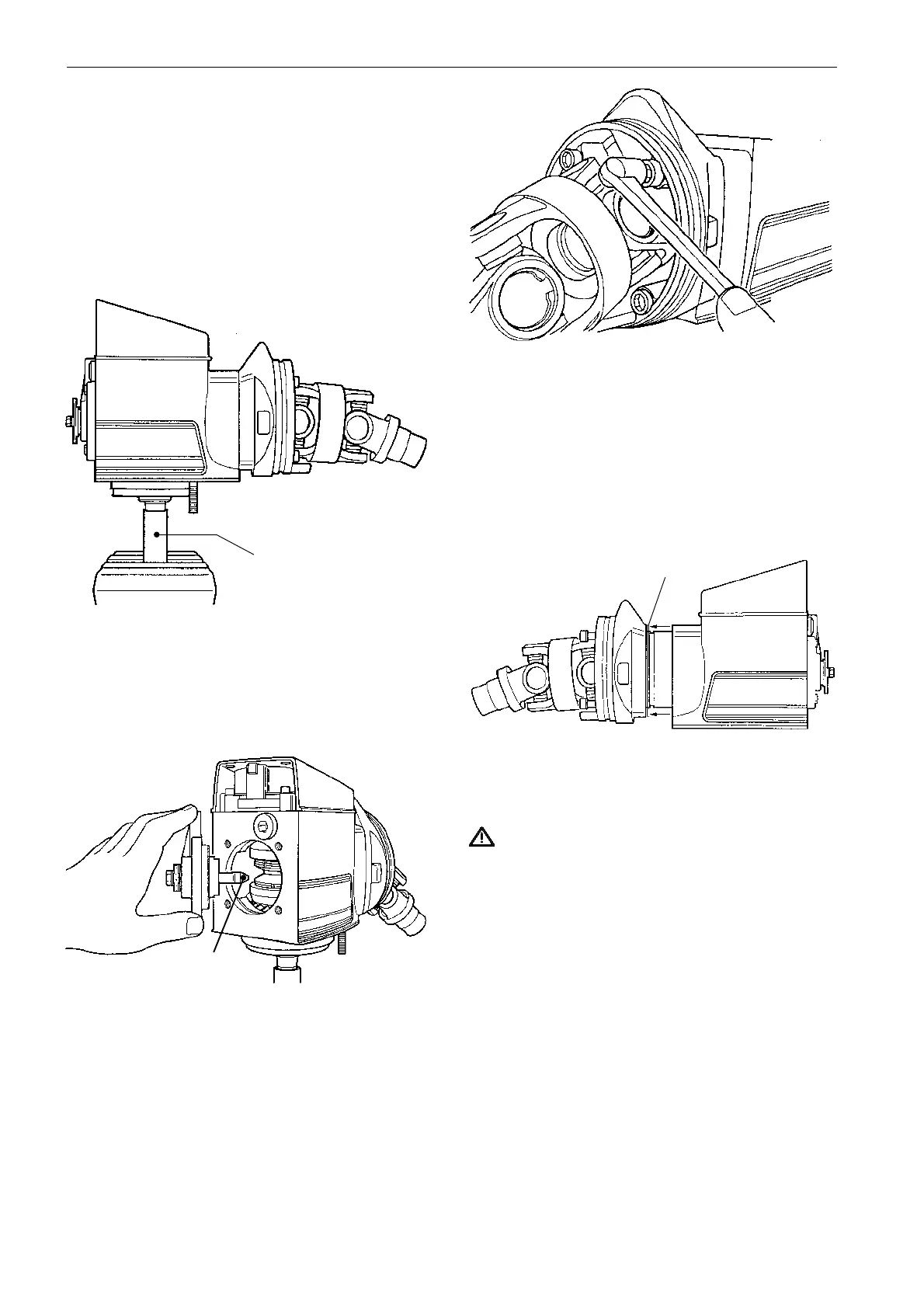

1. Install the upper gear housing on special tool
884830. This special tool, of earlier manufacture, also
carries the part no 884264.
2. Remove the 4 screws holding the shift mechanism
and remove the mechanism.
NOTE! Be sure to remove the shift shoe (1) with the
shift mechanism.
3. Loosen and remove the 4 allen head bolts holding
the double bearing box.
4. Pull out the double bearing box by pulling and turn-
ing simultaneously. Use strap wrench 9999179 to ro-
tate the double bearing box.
IMPORTANT! Do not damage or lose the shims.
Disassembly, models
290A, SP and DP
NOTE! The illustrations show drives model DP, but
the working methods are the same as for models
290A and SP.
884264
884830
1
1
