Repair instructions

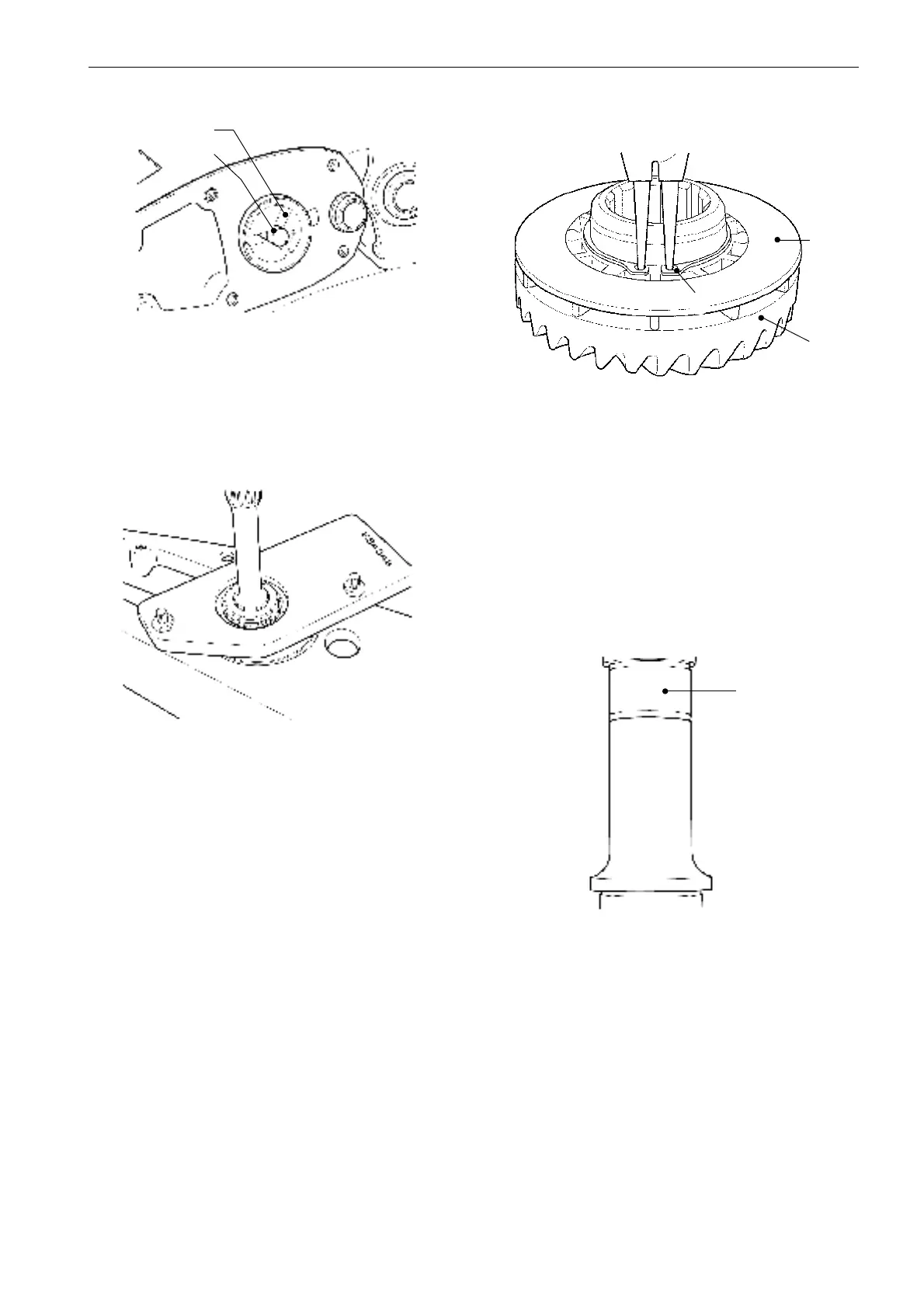

10. Remove the conical roller bearing race in the inter-
mediate housing (if the old bearing can still be used).
Use special tools 884140 and 884143.
11. Insert the bearing race on the roller bearing on the
lower gear housing and install the spanner tool
884348. Insert if necessary shims between the bear-
ing race and the tool to prevent the vertical shaft from
moving axially. Tighten the spanner tool with two
screws and nuts.
The propeller shaft
12. Install the oil deflector (1) and the locking ring (2)
on the gear wheel (3).
NOTE! Make sure that the two holes on the oil deflec-
tor coincide with the carrier pins (on sterndrives of ear-
lier manufacture). On sterndrives of later manufacture
a load pin acts as carrier of the oil deflector.
13. Press on the bearing race (1) on the propeller
shaft (in case it has been dismantled).
3
1
2
1
884143
884140
