82
Repair instructions
Reconditioning the
intermediate housing, models
SP and DP

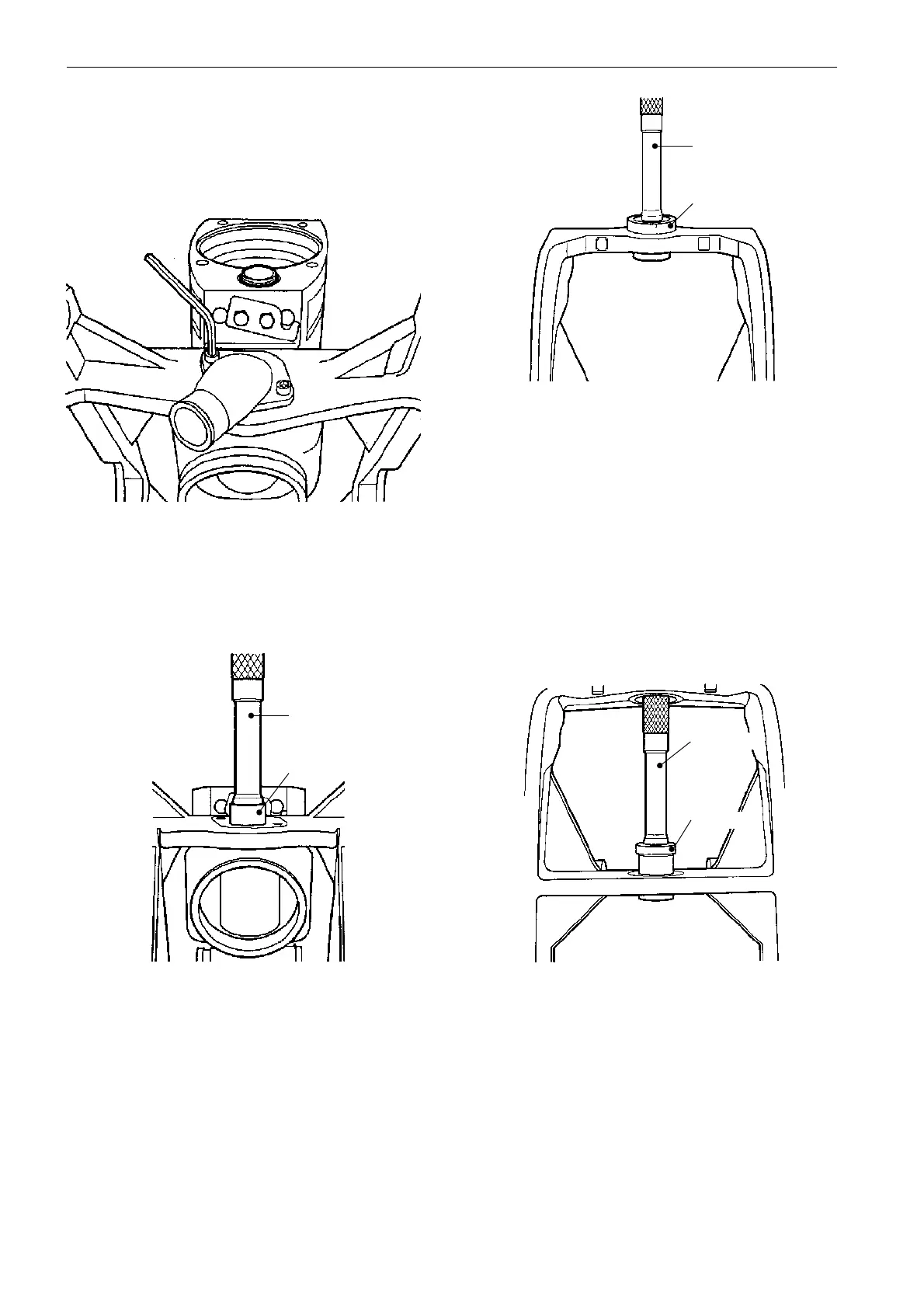

1. Remove the 2 screws holding the hose connection.
Remove the hose connection and the gasket.
2. Remove the hook up fork by driving out the steering
spindle. Use special tools 884311 and 9991801.
3. Press out the lower steering spindle bushing. Use
special tools 884259 and 9991801.
4. Press out the upper steering spindle bushing using
special tool 884259 and 9991801.
9991801
884311
9991801
884259
9991801
884259
