19

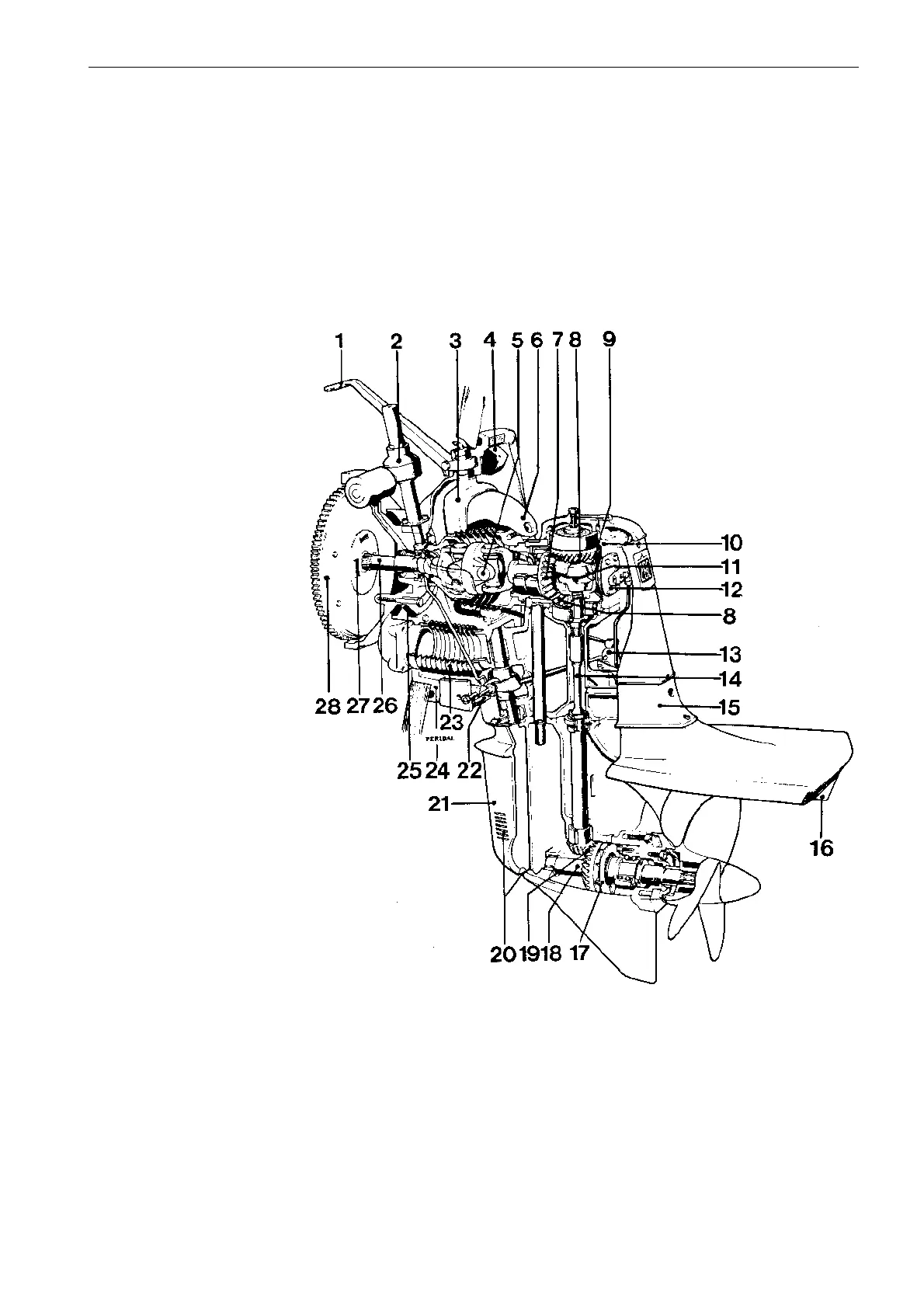

Section through the sterndrive
1. Steering arm
2. Electro-mechanical tilting
device
3. Steering yoke
4. Rubber cushion
5. Universal joint
6. Steering helmet
7. Input gear
8. Forward/reverse gear
9. Forward/reverse cone
10. Upper gear housing
11. Coupling box
12. Shift mechanism
13. Shift plate
14. Vertical shaft
15. Intermediate housing
16. Trim tab
17. Circulation pump
18. Propeller shaft
19. Propeller shaft gear
20. Water intake
21. Lower gear housing
22. Retaining pawl
23. Exhaust bellows
24. Transom shield
25. Supporting rubber cushion
26. Drive shaft
27. Damper plate
28. Flywheel
Design and function
Model 280
