166

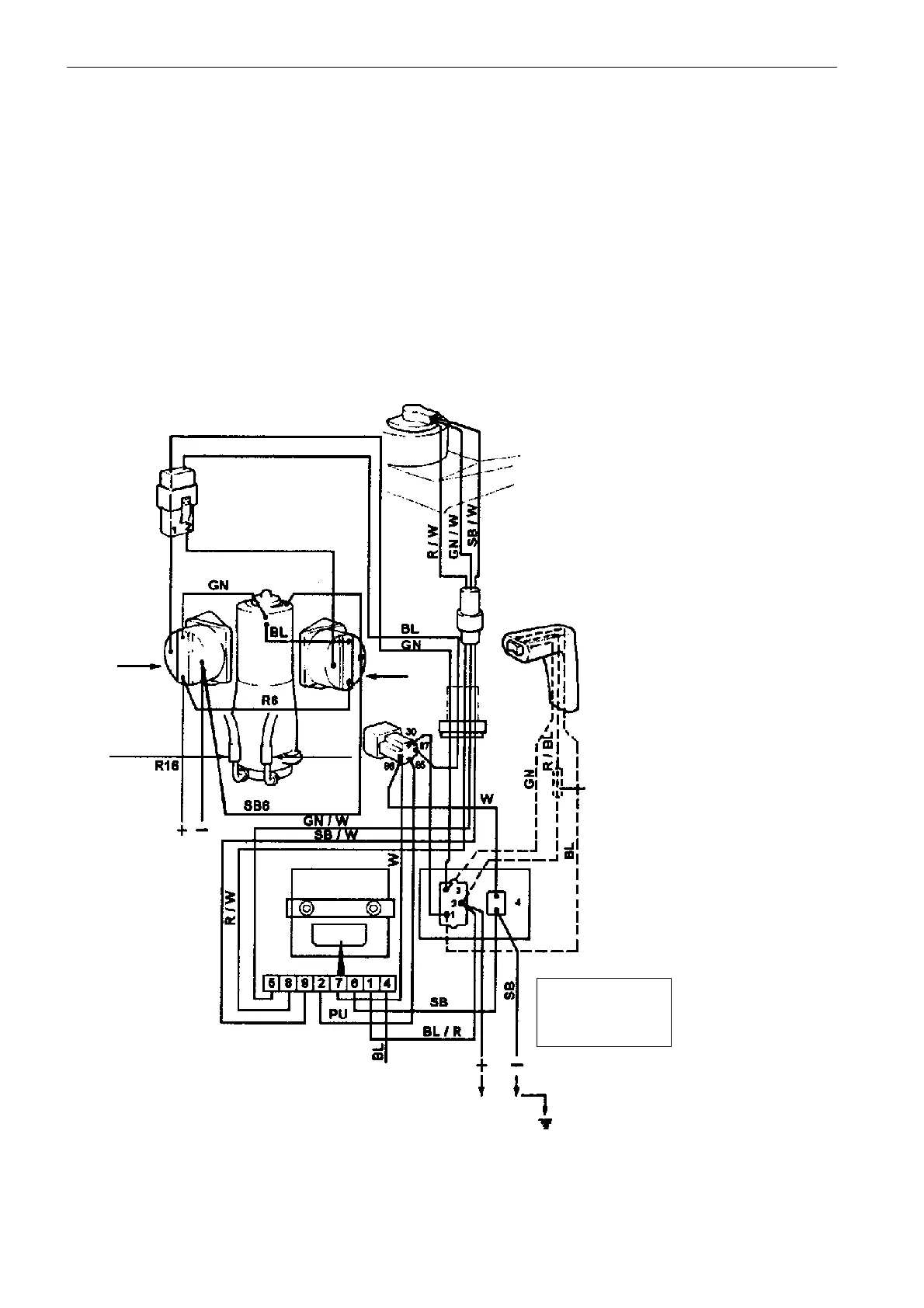

Electrical wiring diagrams
Model 290, Power trim
Earlier model
Cable colour codes
R= red
SB = black
GN = green
BL = blue
W = white
R/W = red/white
GN/W = green/white
SB/W = black/white
BL/R = blue/red
PU = purple
BL/W = blue/white
Cable area 1,5 mm
2
1. Oil pump
2. Fuse 55 amps
3. Trim sender
4. Trim indicator
5. Switch
6. Switch-relay, position ”Beach”
7. Connection instrument panel
8. Instrument lighting
9. Throttle hook-up (optional)
10. Fuse 5 amps
3
Low
pressure
Down
Up
1=Up
2 = Positive (+)
3 = Down
4 = Override button
5
9
2
4
6
7
8
1
10
High
pressure
