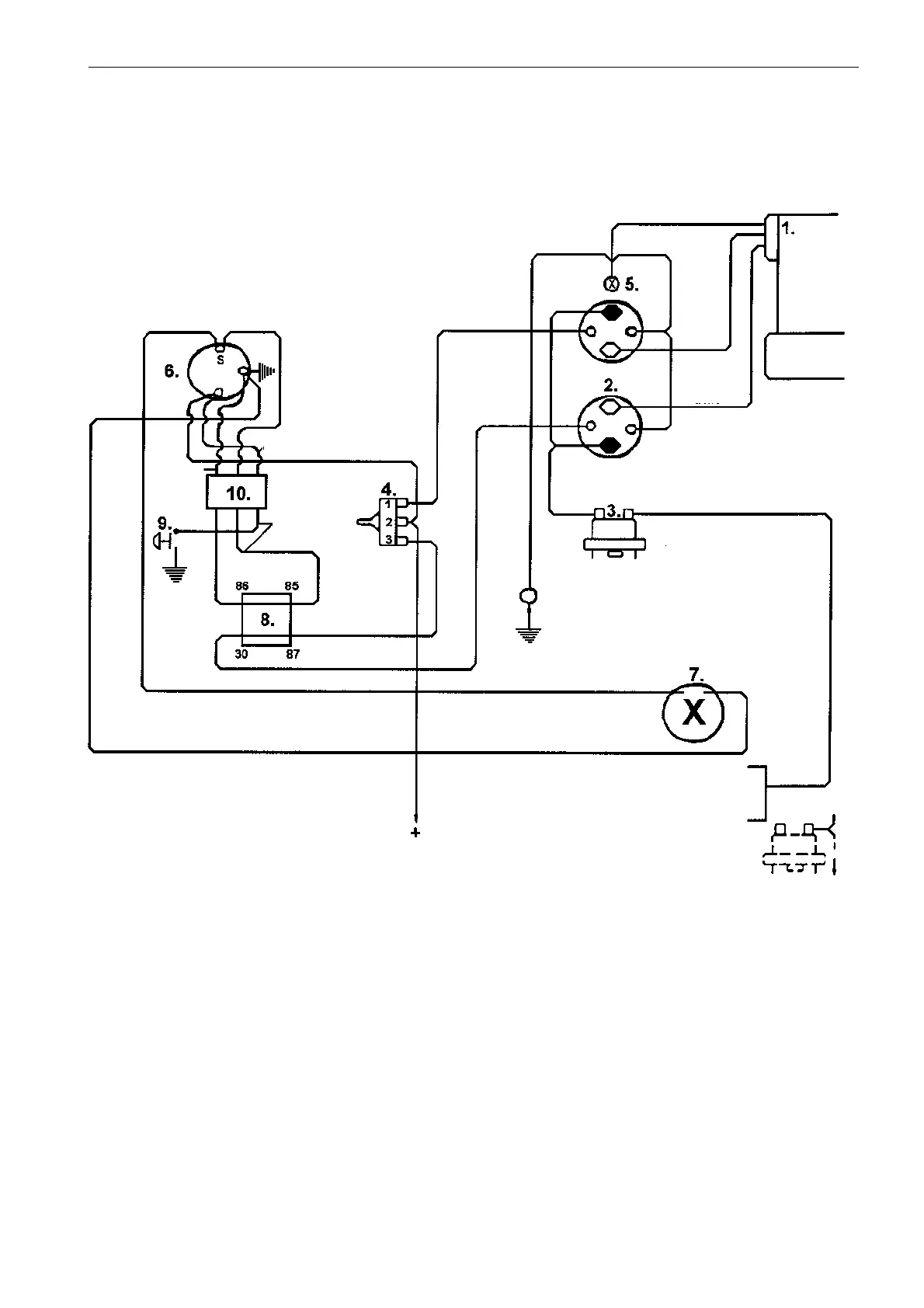

Electrical wiring diagrams
Model 280, Power trim
1. Pump motor
2. Relay
3. Fuse
4. Switch
5. Body
6. Trim gauge
7. Sender
8. Relay
9. Bypass switch
10. Trim limit switch
Cable colour codes
R = red
SB = black
GN = green
BL = blue
W = white
GN/R = green/red
GN/Y = green/yellow
IV/SB = ivory/black
PU = purple
Cable area 1,5 mm
2
Ground
OR
W
IV/SB
PU
GN/R
GN/Y
SB
PU
Power lead
SB
SB
GN
GN
R
R
R
Down
Up
Attach to flywheel housing
To engine fuse
battery side
Battery
BL
