75
Repair instructions
Assembly
Oil all moving parts and the screws prior to as-
sembly.

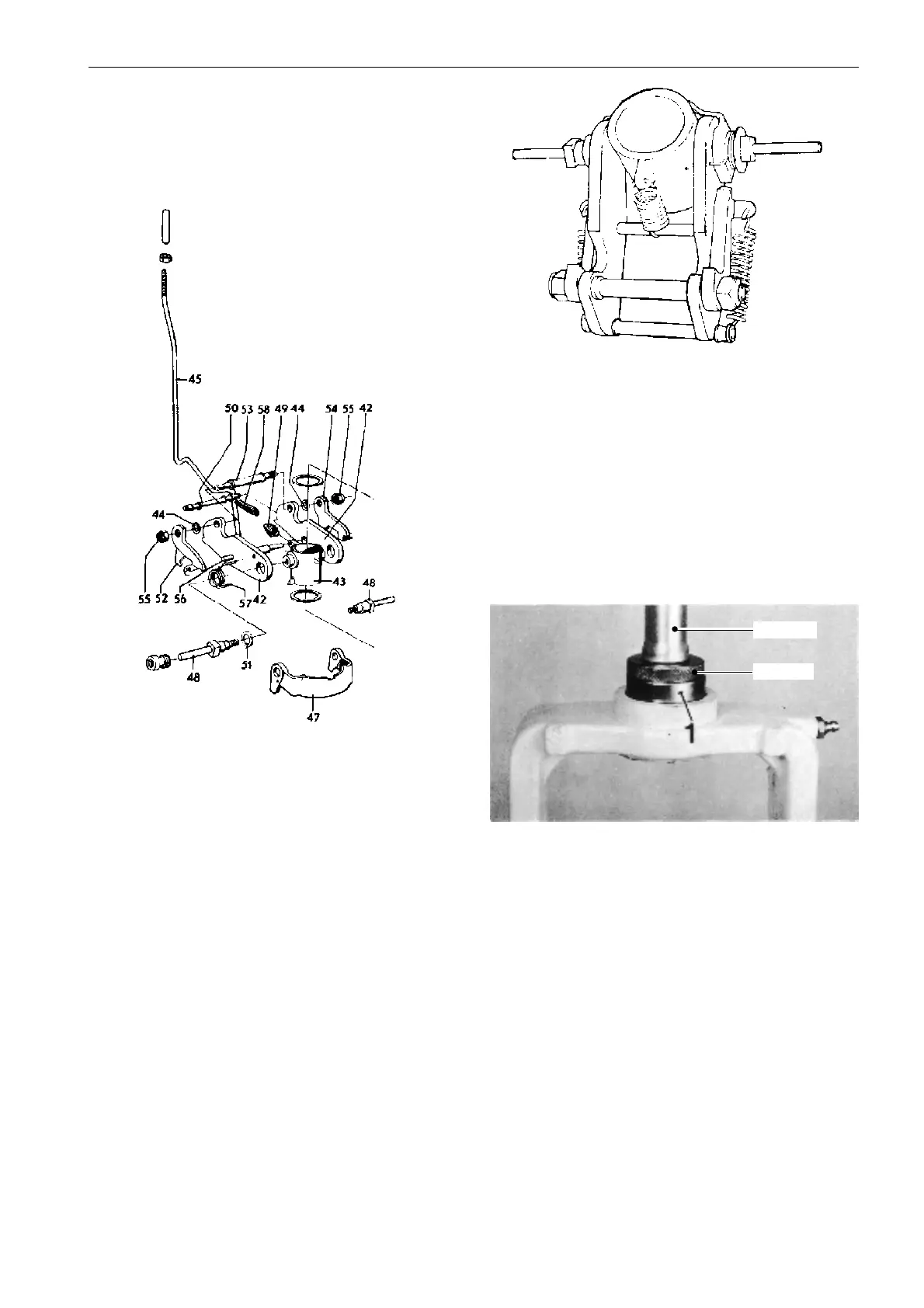

9. Install the shaft (53) on one of the retaining pawls
(42) and the spacer washer (44) and the spring catch
(52). Install one of the nuts (55) on the shaft. Then
place the push rod (45) on the stop shaft (56) and in-
sert the bearing (43) in the retaining pawl half. Then
install the remaining retaining pawl (42) and the
spring catches (54) along with the spacer washer
(44) on the shaft (53) and the bearing (43). Install the
remaining nut (55).
NOTE! Tighten the nuts (55) completely. Then ease
them off approx.
1
/
8
turn in order to make the spring
catches movable without adding a play. Then install
the locking yoke (47) and the shaft journals (48)
along with the spring (57) and the washer (51) in the
bearing (43). Install the spring shaft (50) with the as-
sistance of the springs (58) and install the spring (49)
between the bearing (43) and the stop shaft (56).
10. Paint the retaining pawl with a thin layer of
‘touch-up paint’. Painting is hard to do when the pawl
is assembled.
The picture reflects an assembled retaining pawl.
11. Grease the needle bearing (1) with an universal
type of grease and press it into the center of the yoke.
Use special tool 884259 and 9991801. Turn the
bearing in a way that the tool is pressing against the
side where the material is at the thickest, (where the
text is stamped into the material).
884259
9991801
