Installation- and operating manual Handling device HP140T R09-2011
15/52
Product description
3.3 Technical data
3
3.3.4 Type plate
The type plate is fitted to the housing of the machine and contains the details described
in the illustration.
The illustrated type plate is merely an example of any machine and
is not identical to the actual type plate of the described product.
A second type plate is included in the scope of delivery. This second plate can be moun-
ted at a clearly-visible location on the machine to allow viewing of performance data if the
type plate fitted by the manufacturer is concealed by any other structures.

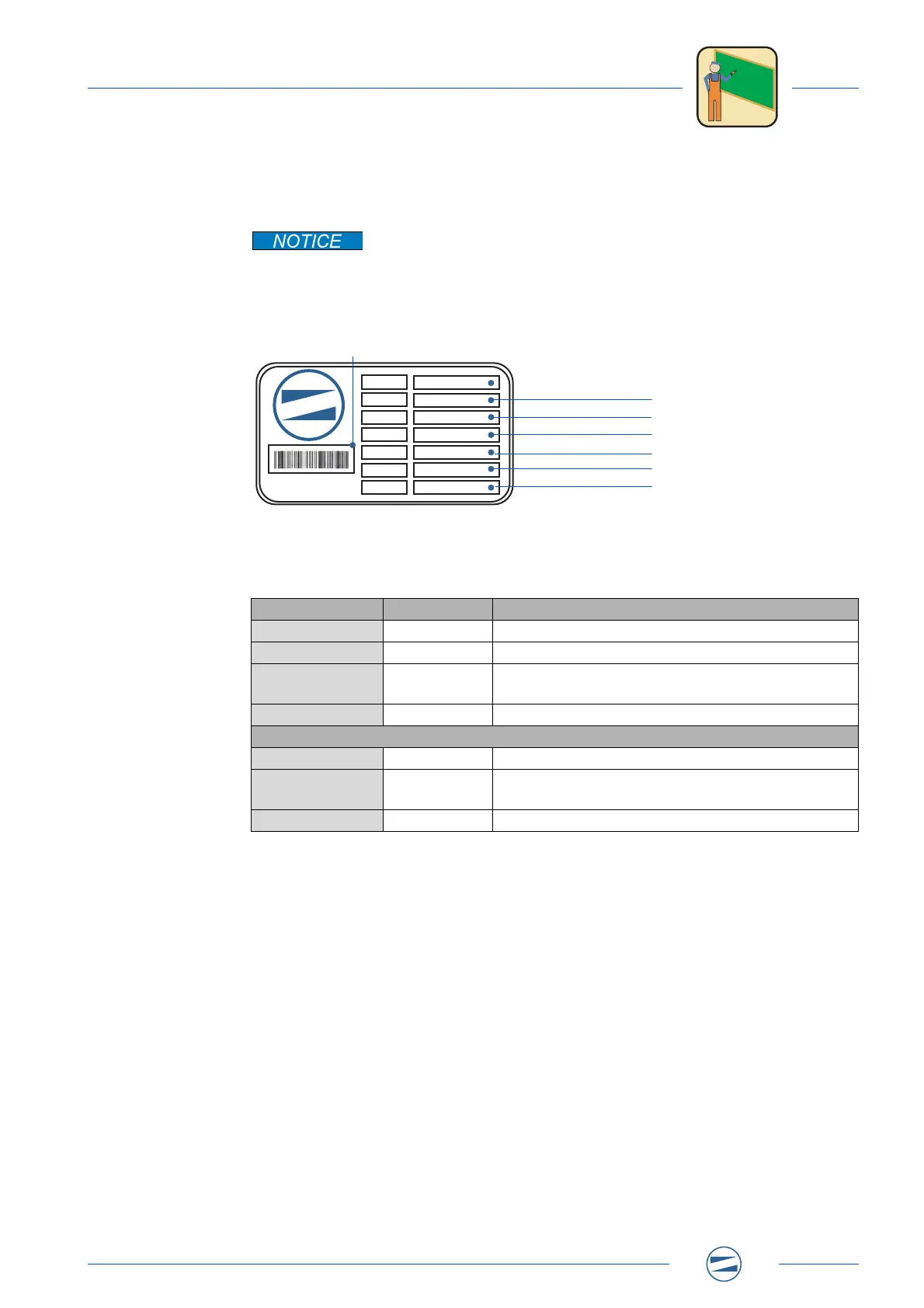

Fig. 2: Example of a type plate
Additional barcode serial number
Version
Type (see table)
Serial Number
Vertical stroke
Horizontal stroke
Measurement system*
Year of construction
Weight
* sinus / cosinus measurement system with pole pitch of 1 mm
Type Encoder Description
HP140T-BB sin/cos 1 Vpp Encoders incremental with interface SIN/COS
HP140T-CB TTL Encoders incremental in customized special design
HP140T-DB SSI sin/cos
Encoders absolute with interface SSI and interface
SIN/COS
HP140T-EB BISS Encoders absolute with interface BISS-C
Special types:
HP140T-BB-CL6 Clean room certificated type
HP140T-xC
Type with special isolated temperature indicator for
Siemens-controller
HP140T-BB-R Type with Hall-Sensor for Rockwell-Controller
type
horiz.
serial
weight
vertical
encoder
year
HPXXXXT - XX
XXXX
XX mm
HPXXXXXX
sin / cos, 1
XX kg
XX mm
www.weiss-gmbh.de
HPXXXT
X
X
WEISS
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
