Product description
3.5 Option with automatic lubrication
3
3.4.3.4 Control lead
3.5 Option with automatic lubrication
Instead of lubricating nipples, connections [1] for automatic lubrication are provided.
 Specifications for the automatic lubrication are described in the respective docu-
mentation.

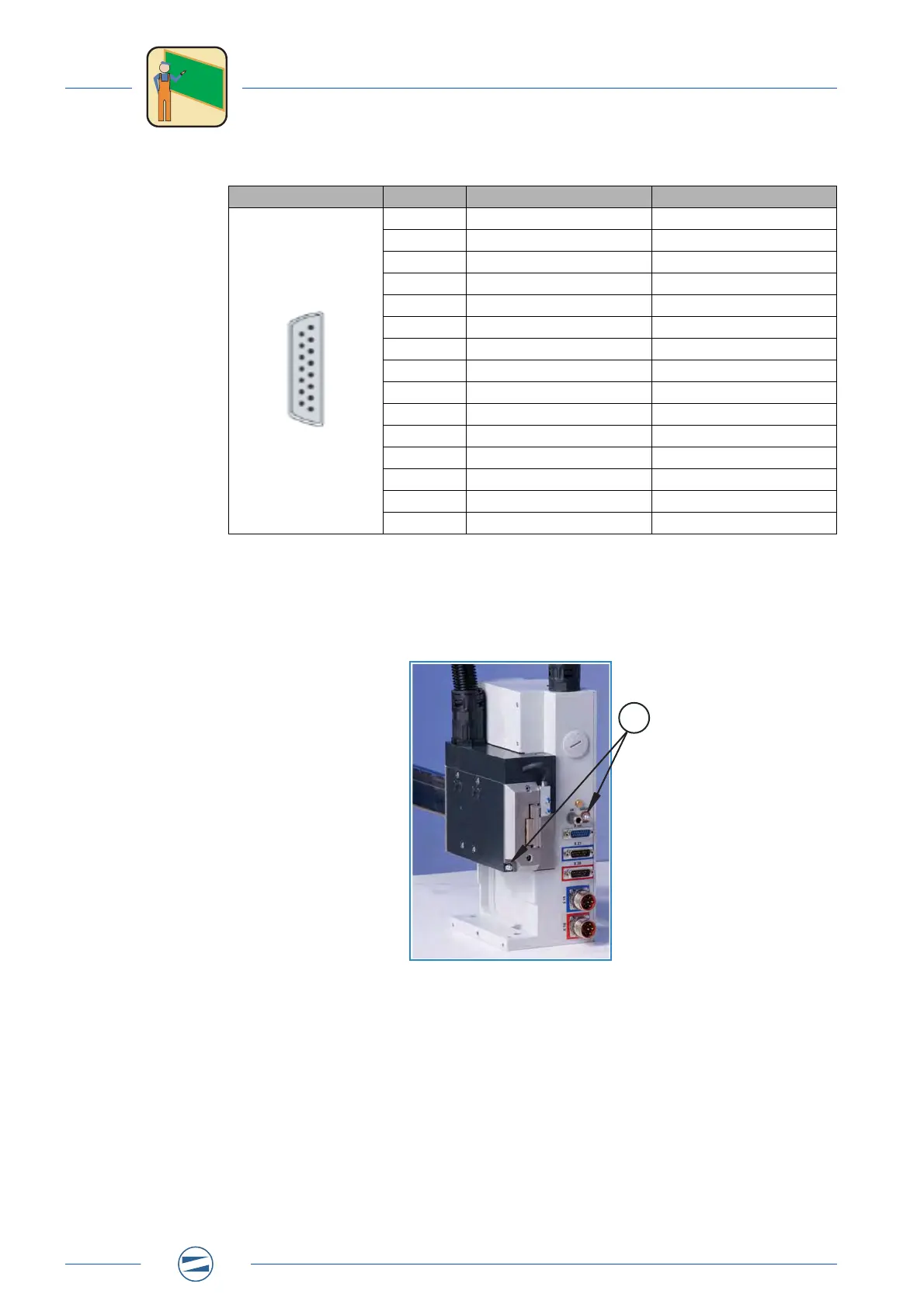

Fig. 10: Connections for automatic lubrication
D-sub plug Pin Name Function
15-pin male
X40
1 +24 V 24 V supply
2 GND GND supply
3 E1 Sensor 1
4 E3 Sensor 3
5E5
6 A2 Valve 2
7A4
8---
9 +24 V 24 V supply
10 GND GND supply
11 E2 Sensor 2
12 E4 Sensor 4
13 A1 Valve 1
14 A3
15 A5
15
1
8
9
1
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
i i i i i i i i i i i i i i i i i
