Installation- and operating manual Handling device HP140T R09-2011
30/52
Installation
5.4 Assembly suggestions
5
5.3.3 Mounting of attachment parts
Regarding the mounting of attachment parts at the housing, the side cover plate of the
HP140T can be bored at appropriate positions.
The side cover plate needs to be removed from the housing before
the bores are made.

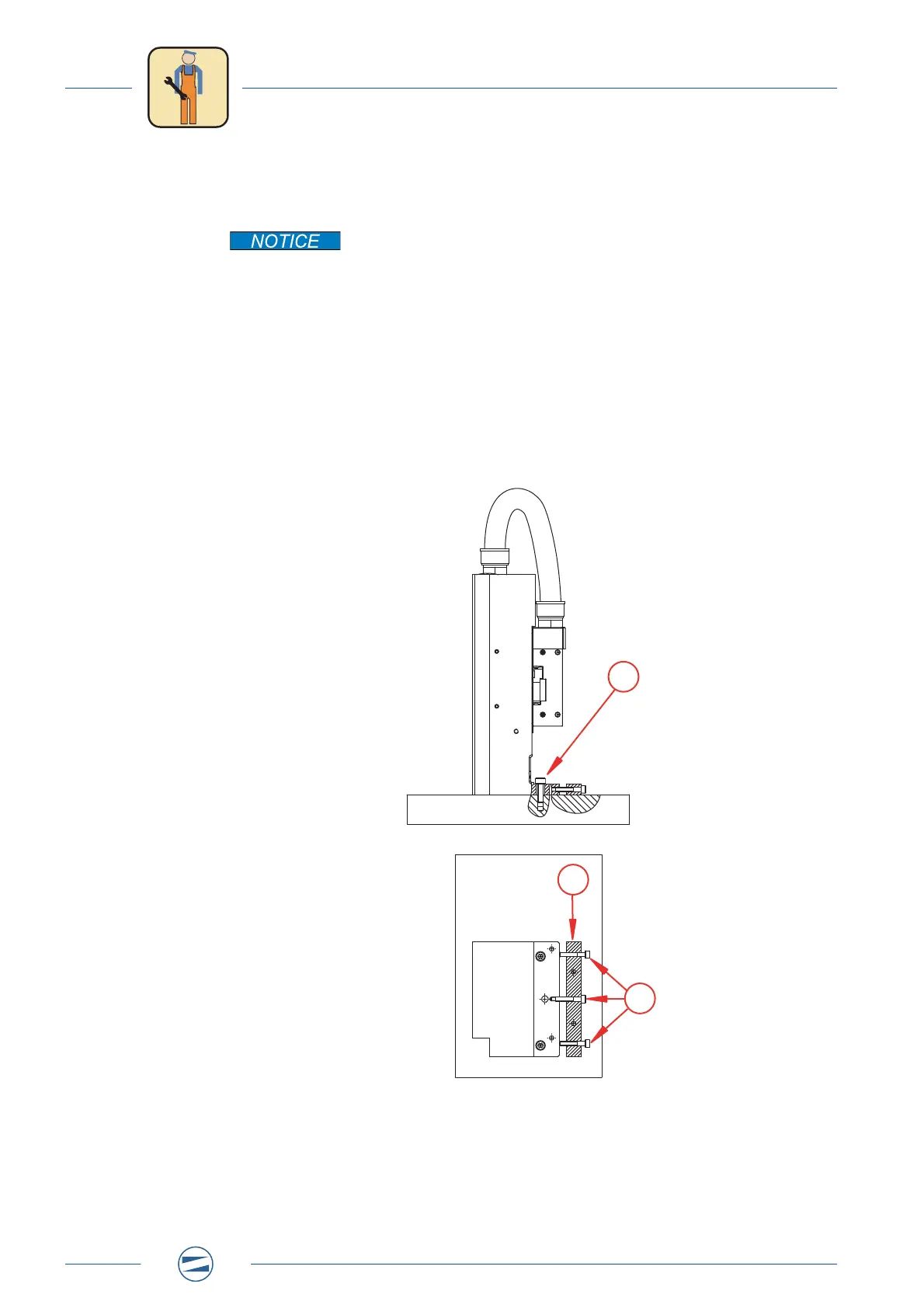

5.4 Assembly suggestions
5.4.1 Option 1 - Adjustment via long holes
1. Bring the Pick & Place to its assembly position.
2. Screw in the two fastening bolts [1], but do not tighten them yet.
3. Align the Pick & Place.
For this purpose, a stop rail [2] with adjusting bolts [3] may be used at the site.
4. Tighten fastening bolts [1].
Fig. 14: Adjustment via long holes
1
2
3
