Installation- and operating manual Handling device HP140T R09-2011

31/52

Installation

5.4 Assembly suggestions

5.4.2 Option 2 - firm pinning

1. Bring the Pick & Place to its assembly position.

2. Screw in the two fastening bolts [1], but do not tighten them yet.

3. Drive a dowel pin into each of the three pin holes [2].

4. Tighten fastening bolts [1].

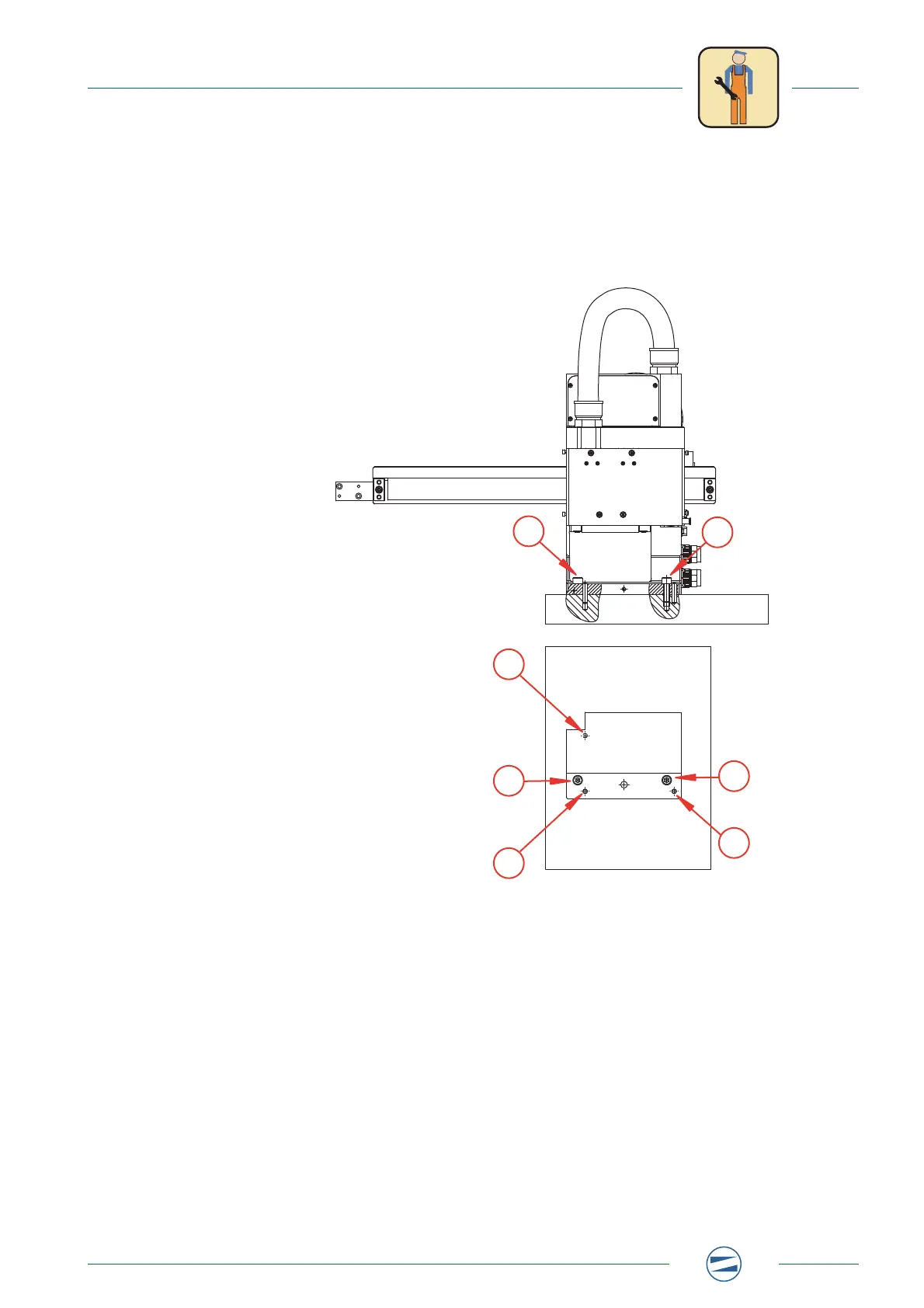

Fig. 15: Firm pinning
