WEISS HP140T Series User Manual

Installation- and operating manual Handling device HP140T R09-2011
22/52
WEISS
Product description
3.4 Electrical connections
3
3.4 Electrical connections
Deliveries with electrics package includes the drive controls and the customised electri-
cal lines.
The connections for the vertical axle are marked red.
The connections for the horizontal axle are marked blue.
3.4.1 Plug-in connections

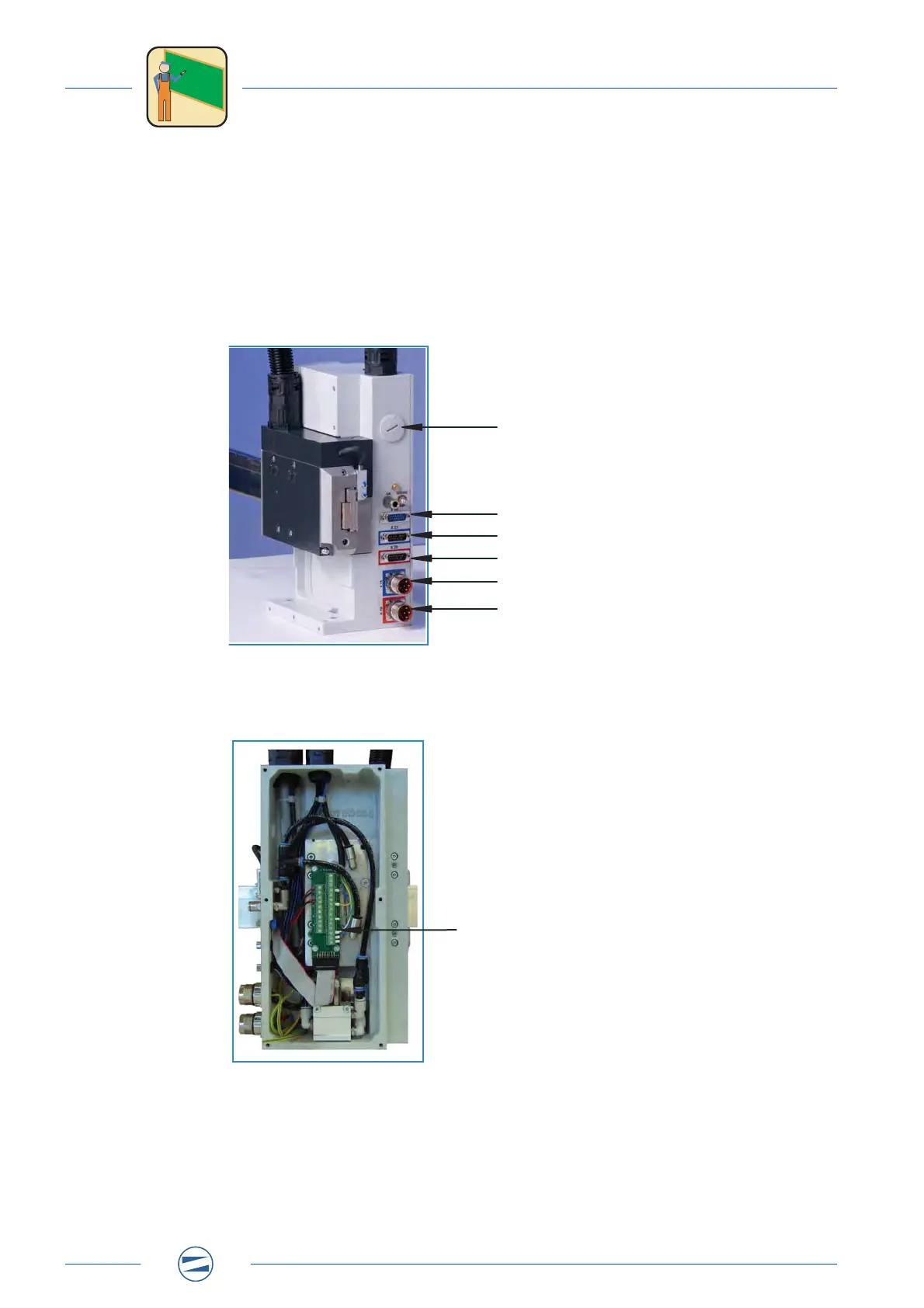

Fig. 8: Plug-in connections
3.4.2 Terminals
Fig. 9: Terminals
Wire-running possibilities
X40 - Digital inputs / outputs
X21 - Measurement system, horizontal motor
X20 - Measurement system, vertical motor
X11 - Connection, horizontal motor
X10 - Connection, vertical motor
A board with terminals for applying digital inputs and
outputs can be found inside the housing.
It is possible to apply 5 inputs and 5 outputs.
The connection to the control is realised by the X40
connector.
