Control Panel
The Control Panel consists of multiple LEDs, a display, and several function buttons. These buttons are
used to navigate the menu system, perform functions, and select modes of operation.

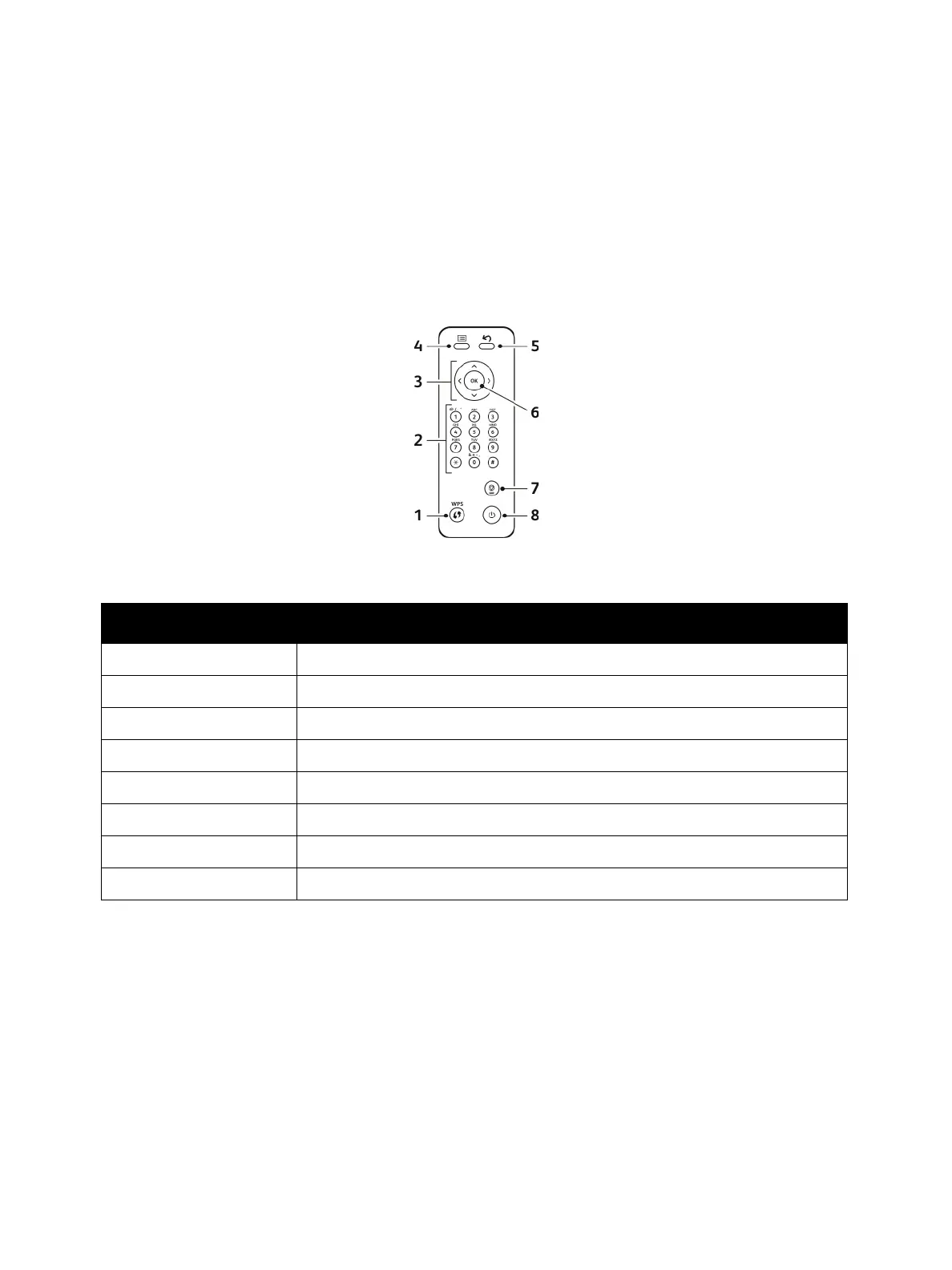

Phaser 3330 DN/DNM Control Panel Button Descriptions
Item Description
1 Wi-Fi Protected Services Used for wireless network connectivity
2 Key Pad Enters information into the printer
3 Arrows Navigates available values by moving to the next or previous options.
4 Menu Enters the menu mode and scrolls through the available menus
5 Back Sends you back to the upper menu level.
6 Ok Confirms the selection on the display.
7 Cancel Stops the current job.
8 Power Turn the power on and off with this button.

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
