Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-126
DADF Registration Sensor, DADF Feed Sensor
Parts List 8.2 WorkCentre 3345 Lower DADF
1. Remove the DADF (page 4-116)

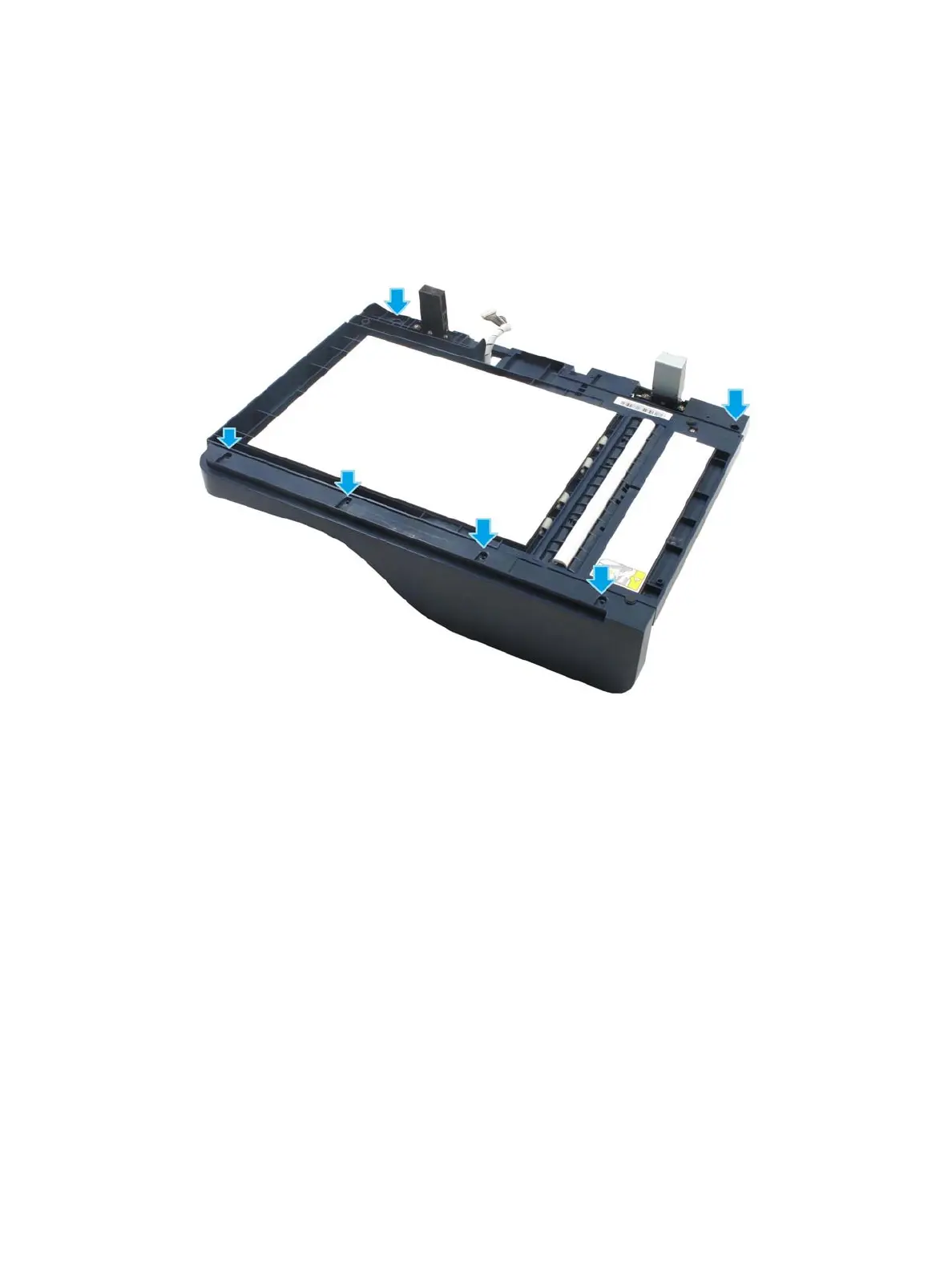

2. Remove 6 screws (silver, flanged, tap, 10 mm) from the bottom of the DADF.
