Xerox Phaser 3330 Service Manual

Maintenance
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
6-9
Ta g M a t r i x
Change Tag Introduction
This section describes all of the tags associated with the machine., as well as multinational
applicability, classification codes, and permanent modification information.
Important modifications to the machine are identified by a Tag Number which is recorded on a Tag
Matrix. The Tag Matrix label is on the inside of the Front Door assembly. If the Front Door is replaced,
the Tag Matrix Label must be peeled off and placed on the new Front Door.
The Tag information may include:
•Tag Number
•Class
•Use
• Manufacturing Serial Number range
•Purpose
•Name
•Description
•Kit Number
• Parts List reference
Classification codes
A Tag Number may be required to identify differences between parts that cannot be interchanged or
differences in diagnostics, repair, installation or adjustment procedures.
A Tag Number may also be required to identify the presents of optional hardware, special Non-volatile
memory programming or whether mandatory modifications have been installed. Each Tag Number is
given a classification code to identify the type of change that the Tag has made. The classification
codes and their descriptions are listed in Table 1.

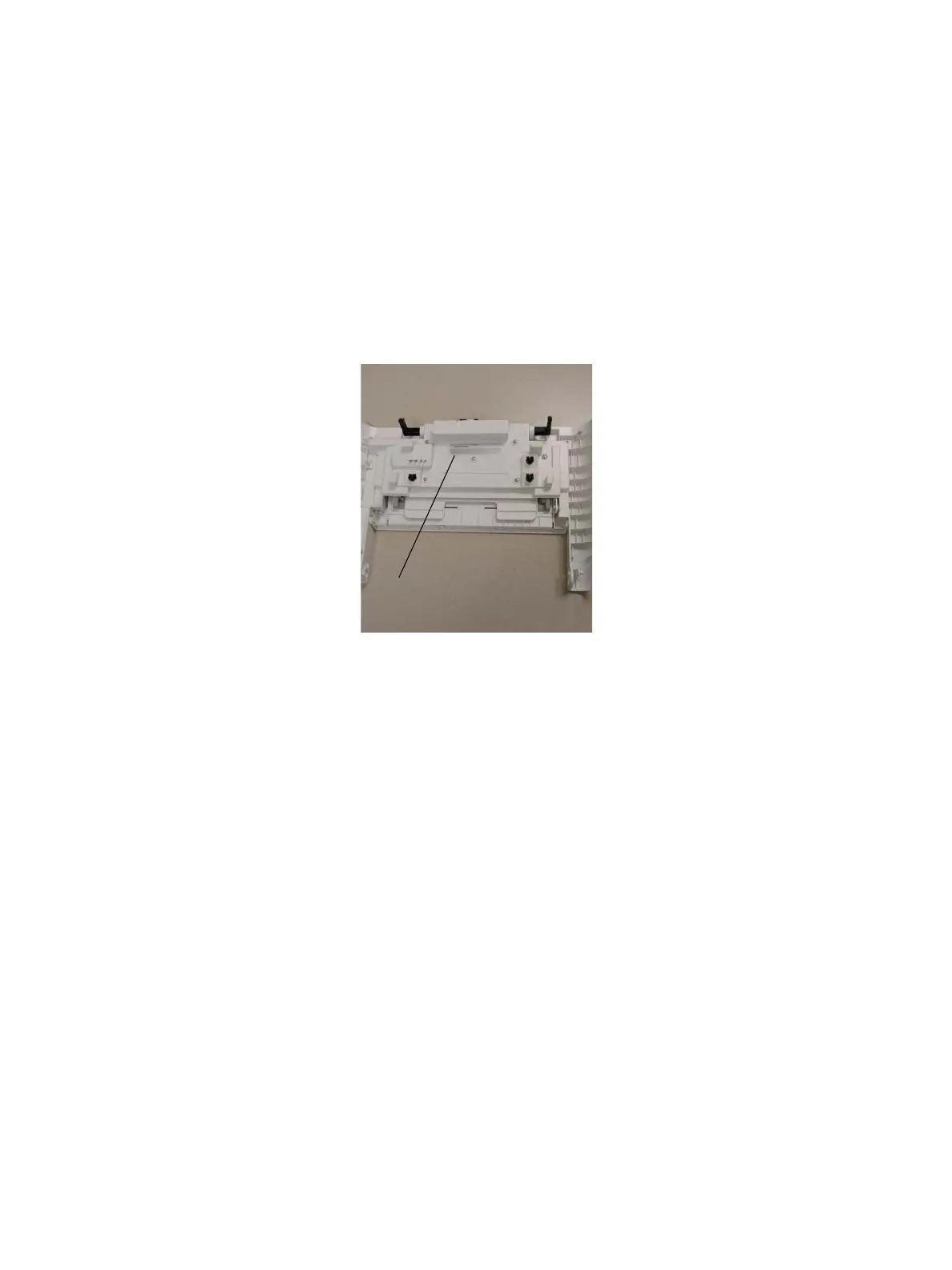

Tag Matrix Label

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
