Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-151
Optional Tray 2 Main Motor
Parts List 12.3 Optional Tray Frame ETS
1. Disconnect the Optional Tray harness.
2. Lift printer from the optional Tray.
3. Remove the Optional Tray 2 Right Side Cover (page 4-149).

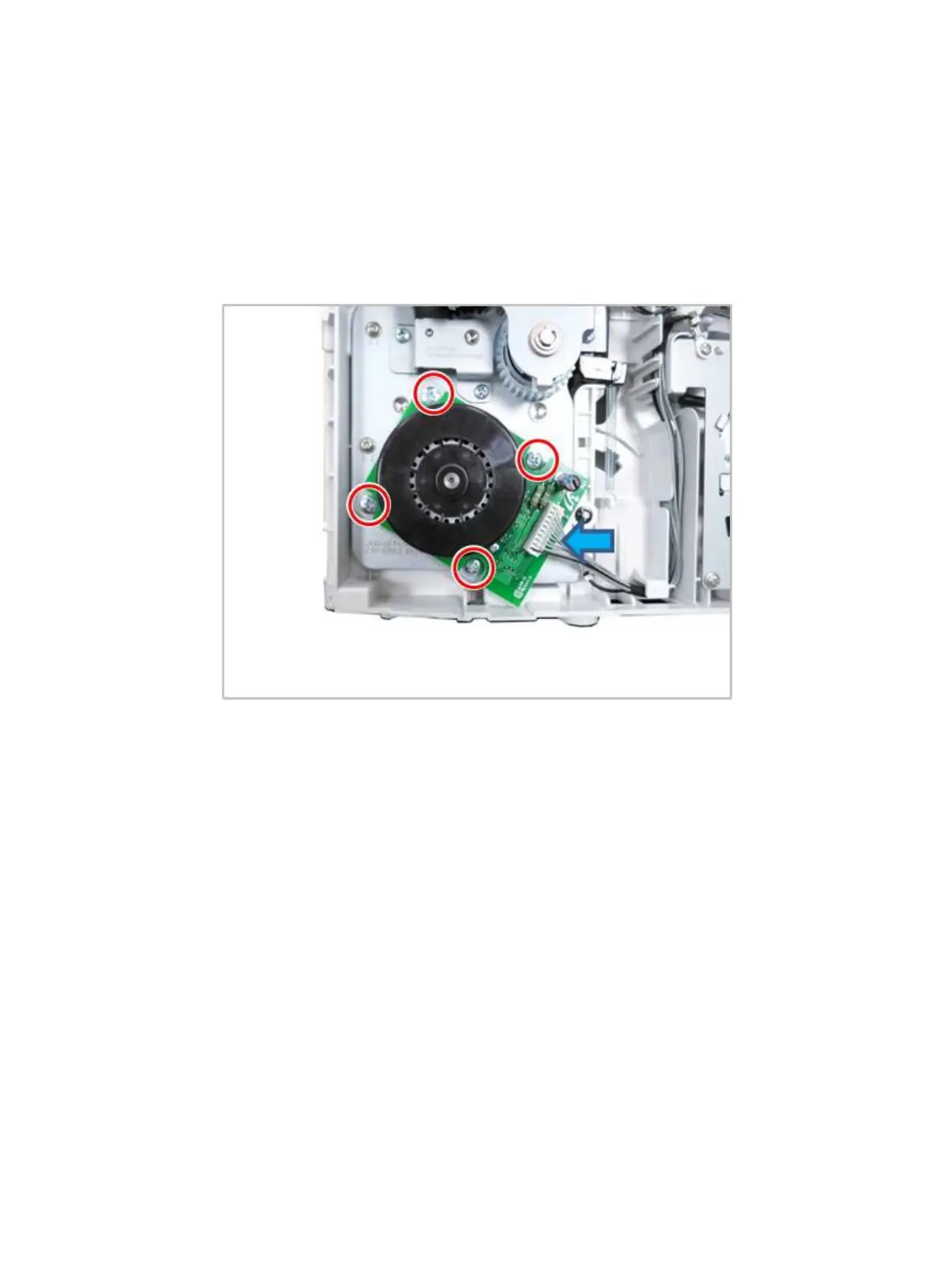

4. Unplug the motor connector, and remove 4 screws.
5. Release the Optional Tray 2 Main Motor (Parts List 12.3 Optional Tray Frame ETS, PL 12.3.7).
