Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-118
DADF Pick Up Unit
Parts List 8.1 WorkCentre 3345 SCANNER and DADF

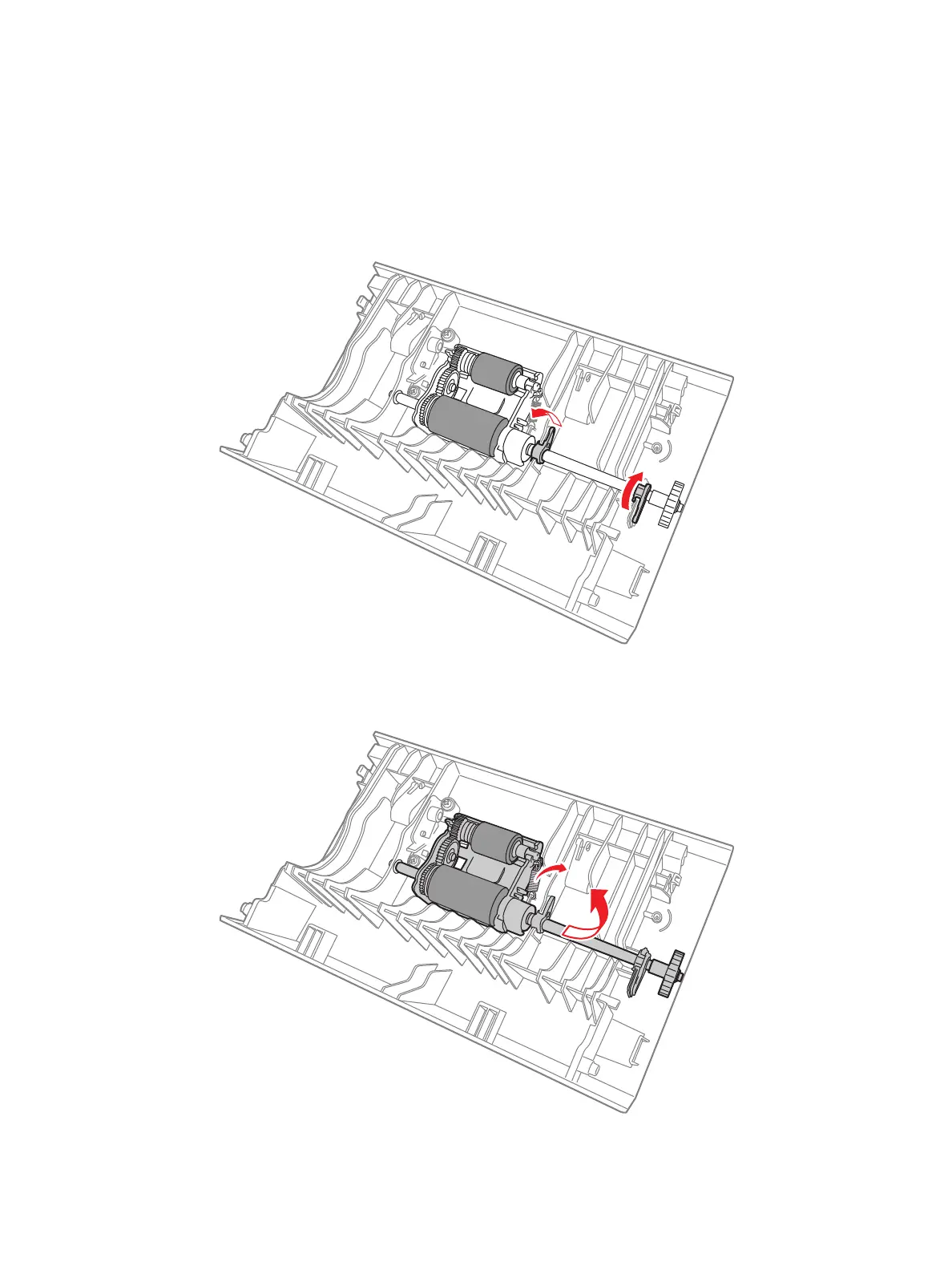

1. Remove the DADF Cover (page 4-117).
2. Release the shaft holders (2).
3. Remove the spring and then remove the DADF Pick Up Unit (Parts List 8.1A WorkCentre 3345
DADF, PL 8.1A.16).
s3320-130
s3320-131

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
