DMU-2000 DATA MANAGEMENT UNIT Page 1
DMU
TRX
KEYBOARD
Supplied Connection Cable
MONITOR
~AC IN
~AC IN
Antenna

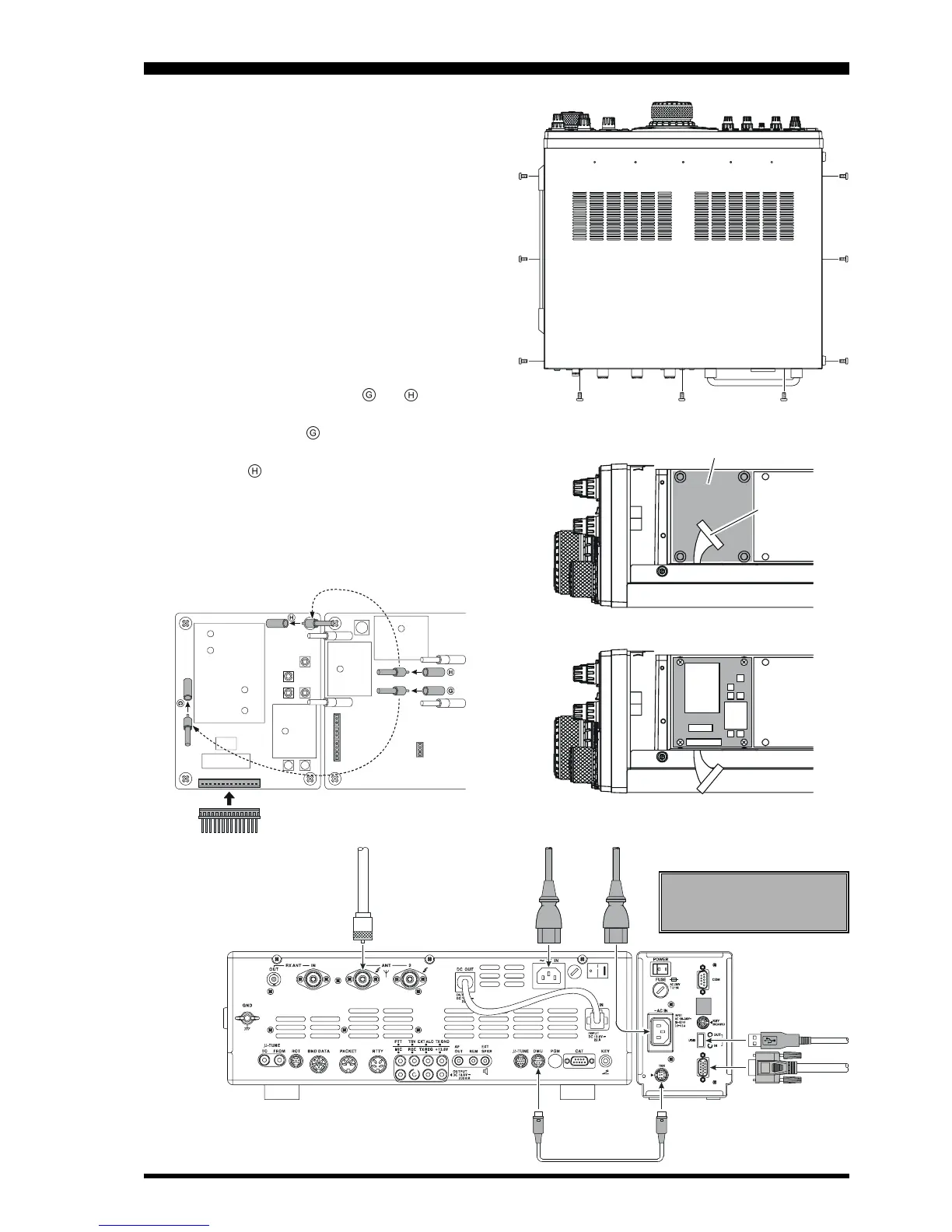

INSTALLATION AND CONNECTION
1. Make certain that all cables are disconnected from
the transceiver.
2. Referring to Figure 1, remove the three screws from
each side of the transceiver, and three screws from
the top edge of the rear panel. Slide the top cover to-
ward to the rear about 1/2 inch (1 cm), then remove
the top cover.
3. Refer to Figure 2 for the mounting location for the
SCOPE Unit. Locate the 14-pin plug taped on the chas-
sis. Remove the tape and remove the 14-pin plug from
the chassis.
4. Mount the SCOPE Unit using the supplied four screws
(Figure 3).
5. Referring to Figure 4, plug the 14-pin plug which was
removed from the chassis in the previous step into
the J7002 connector on the SCOPE Unit.
6. Locate the Coaxial plugs
(
labeled
and
)
installed
in jacks (J4508 and J4507) on the RX-2 Unit. Un-
plug the Coaxial plug
( )
from the RX-2 Unit and
plug it into the J7003 on the SCOPE Unit. Unplug the
Coaxial plug
( )
from the RX-2 Unit and plug it into
the J7001 on the SCOPE Unit (Figure 4).
7. Replace the top cover and its nine screws.
8. Assemble the transceiver, Data Management Unit,
after-market Display, and after-market Keyboard (if
used) pursuant to Figure 5.
Figure 1
Figure 2
Figure 3
SCOPE Unit Mounting Location
14-pin Plug
Figure 4
14-pin Plug
SCOPE Unit
RX-2 Unit
Figure 5
Move the Coaxial plug
Move the Coaxial plug
Keep a inch (2.5 cm) of space on ei-
ther side of the DMU-2000 to pre-
vent the overheating.
