Page 11FT-450 OPERATION MANUAL
I NSTALLATION

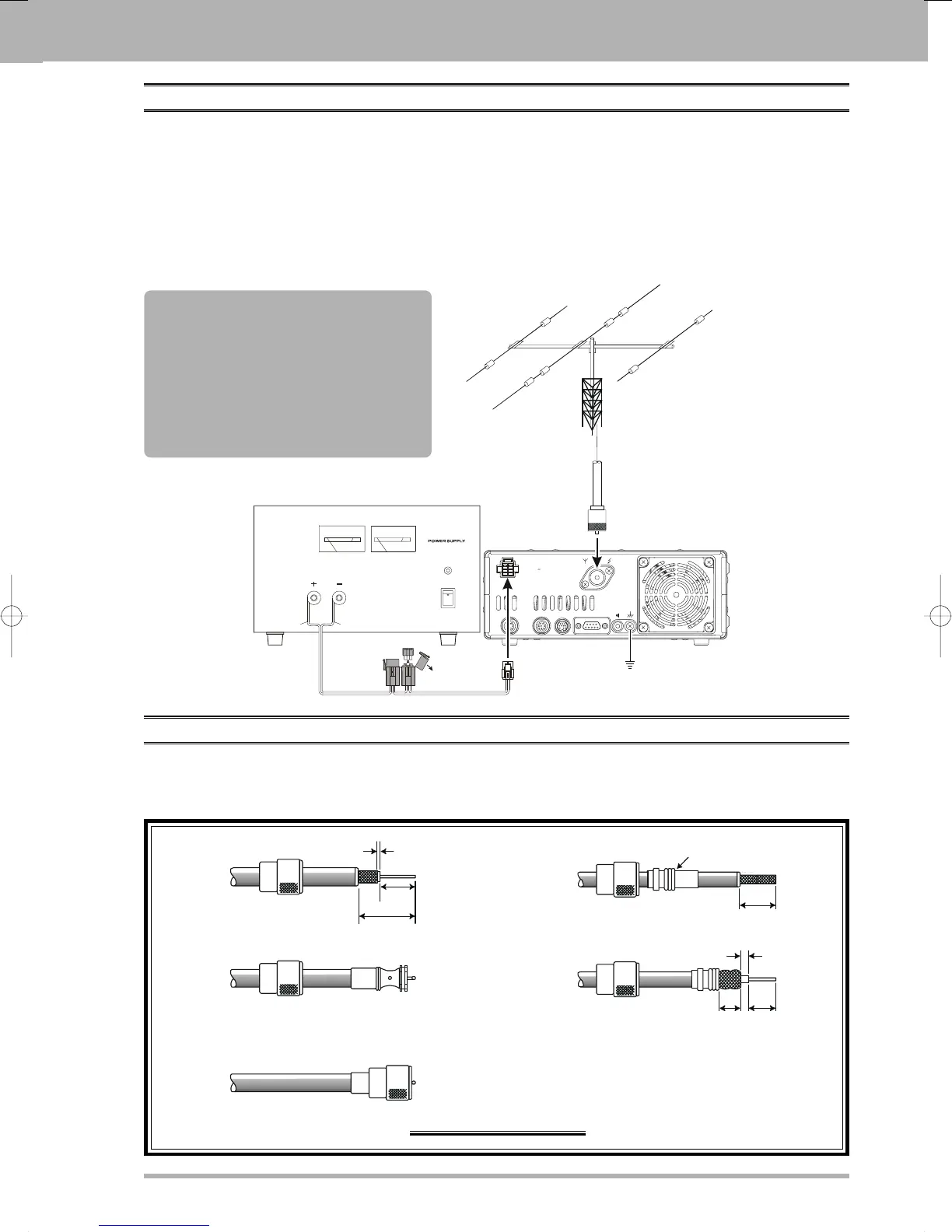

CONNECTION OF ANTENNA AND POWER SUPPLY
The FT-450 is designed for use with any antenna system providing a 50 Ohm resistive impedance at the desired
operating frequency. Every effort should be made to ensure the impedance of the antenna system is as close as
possible to the specified 50-Ohm value. Note that the “G5RV” type antenna does not provide 50-Ohm imped-
ance on all HF Amateur bands, and an external wide-range antenna coupler must be used with this antenna
type.
Any antenna to be used with the FT-450 must, ultimately, be fed with 50 Ohm coaxial cable. Therefore, when
using a “balanced” antenna such as a dipole, remember that a balun or other matching/balancing device must
be used to ensure proper antenna performance.
1/16''
3/4''
1 1/ 8''
3/4''
Adapter
1/8''
5/8''3/8''
TYPICAL PL-259 INSTALLATION
ABOUT COAXIAL CABLE
Use high-quality 50-Ohm coaxial cable for the lead-in to your FT-450 transceiver. All efforts at providing an
efficient antenna system will be wasted if poor quality, lossy coaxial cable is used. This transceiver utilizes
standard “M” (“PL-259”) type connector.
AC Power Supply
FT-450
CAUTION
Permanent damage can result if improper supply
voltage, or reverse-polarity voltage, is applied to
the FT-450. The Limited Warranty on this trans-
ceiver does not cover damage caused by applica-
tion of AC voltage, reversed polarity DC, or DC volt-
age outside the specified range of 13.8V ±10%.
When replacing fuses, be certain to use a fuse of
the proper rating. The FT-450 requires a 25A fast-
blow fuse.
INPUT
DC 13.8 V
22 A
ANT
GND
EXT
SPKR
CATLINEARTUNERDATA
A
N
T
E
N
N
A
A
0 5 20 30 40
POWER
ON
OFF
RED BLACK
FUSE: 25A
V
0 5 10 15 20

Yaesu FT-450 Specifications

General

Impedance	50 ohms
Supply Voltage	13.8 V DC
Supply Voltage Tolerance	±15%
Image Rejection	70 dB or better
Frequency Range Receive	30 kHz - 56 MHz
Modes	SSB, CW, AM, FM
AM Power Output	25 W
Weight	3.6 kg
Receiver Sensitivity SSB	0.2 µV (12 dB SINAD)
