Yaesu Mark-V FT-1000MP Field User Manual

2-1

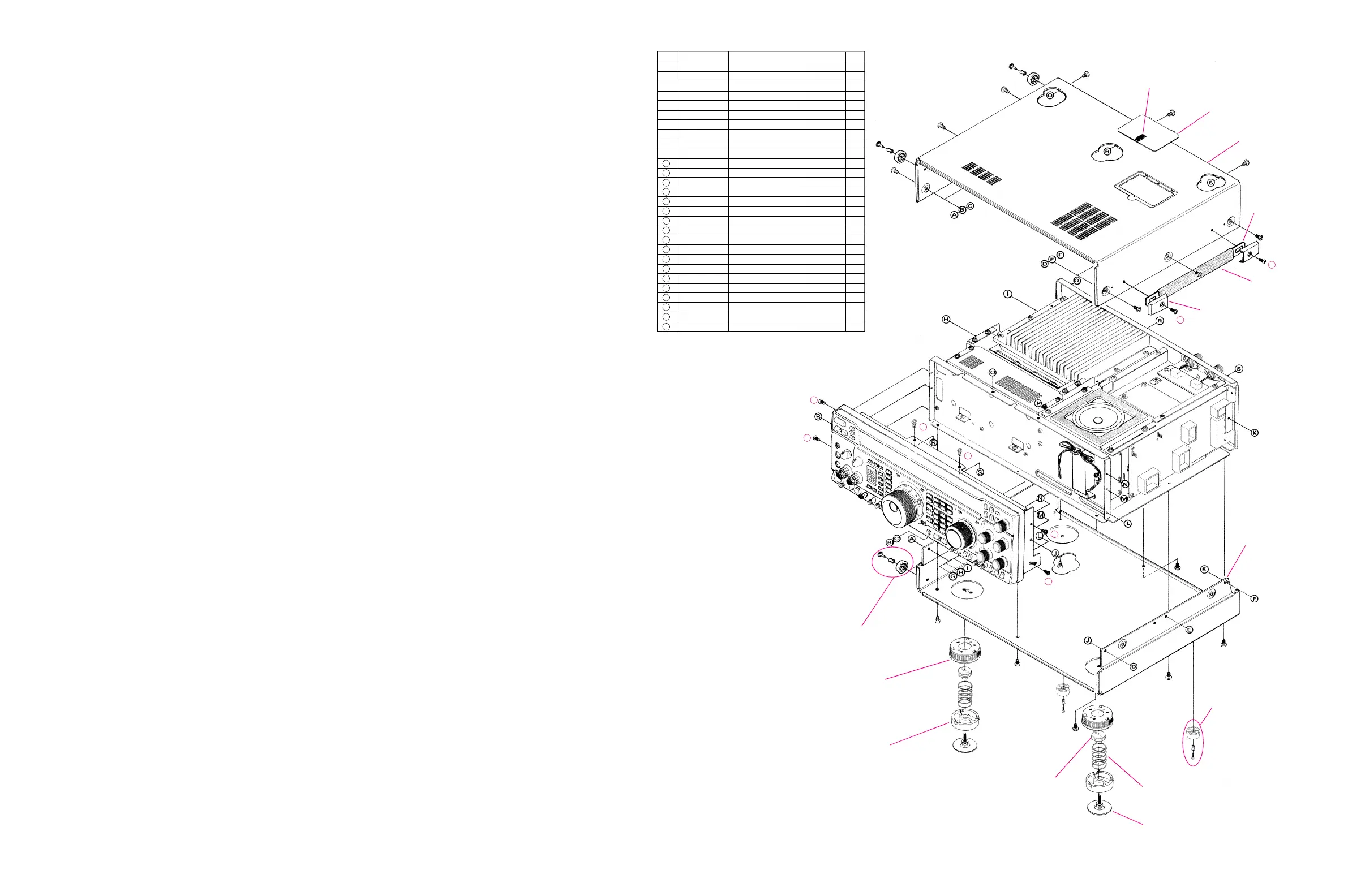

Exploded View & Miscellaneous Parts
RA0391000
CASE (BOTTOM)
S4000042
CASE LEG FT-015 (X2pcs)
R0133740
COIL SPRING (X2pcs)
R7133800
WASHER (X2pcs)
R3133080
COLLAR (X2pcs)
R3514230
LEG (X2pcs)
R3514220
LEG (X2pcs)
R0901050C
CASE (TOP)
R0151720
CASE (COVER)
R3151730
HOOK
R4115020
HANDLE HOLDER
R3084746
HANDLE
R0115070
HANDLE CORE
S4000025
FOOT FF-008 (X4pcs)
Ç
Ç
Ç
Ç
Ç
Ç
Ç
12
12
Ç
Ç
Ç
Ç
Ç
Ç
Ç
Ç
Ç
18
18
18
18
13
13
È
È
REF. VXSTD P/N Description Qty.
À U00308001 PAN HEAD SCREW M3X8 1
Á U00520002 PAN HEAD SCREW M5X20NI 1
 U03306001 SEMS SCREW ASM3X6 14
à U04206001 SEMS SCREW HSM2.6X6 4
Ä U20306001 BINDING HEAD M3X6 12
Å U75703650 PLANE WASHER W3X8X0.5 FIBER 1
Æ U20308001 BINDING HEAD M3X8 4
Ç U20406007 BINDING HEAD M4X6B 16
È U22416007 SEMS SCREW HM4X16B 2
É U23306001 TAPTITE SCREW M3X6 4
11
U24305001 TAPTITE SCREW M3X5 41
12
U24306001 TAPTITE SCREW M3X6 137
13
U31415020 OVAL HEAD SCREW M4X15SUS 2
14
U24306007 TAPTITE SCREW M3X6B 14
15
U24308001 TAPTITE SCREW M3X8 10
16
U24310001 TAPTITE SCREW M3X10 6
17
U31306001 OVAL HEAD SCREW M3X6 6
18
U34306001 TAPTITE SCREW M3X6 5
19
U60300301 HEX NUT N3 1
20
U65500102 WING NUT N5NI 1
21
U65500002 FLANGE NUT N5NI 1
22
U70003001 PLANE WASHER FW3 4
23
U70005002 PLANE WASHER FW5NI 2
24
U73005002 TOOTHED LOCK WASHER IW5NI 2
25
U75703850 PLANE WASHER W3X8X1 FIBER 1
26
U9900062 TAPTITE SCREW M1.6X3NI#3 2
27
Q6000115 TERMINAL B-5 (M3) 2
28
S5000102 TAPTITE SCREW M2X4 4
