Warnings:
Dashes in the
display:
No data are re-
ceived from the GPS.
Verify the correct
configuration (n0=00)
of the display con-
nected to the GPS.
➤
➤

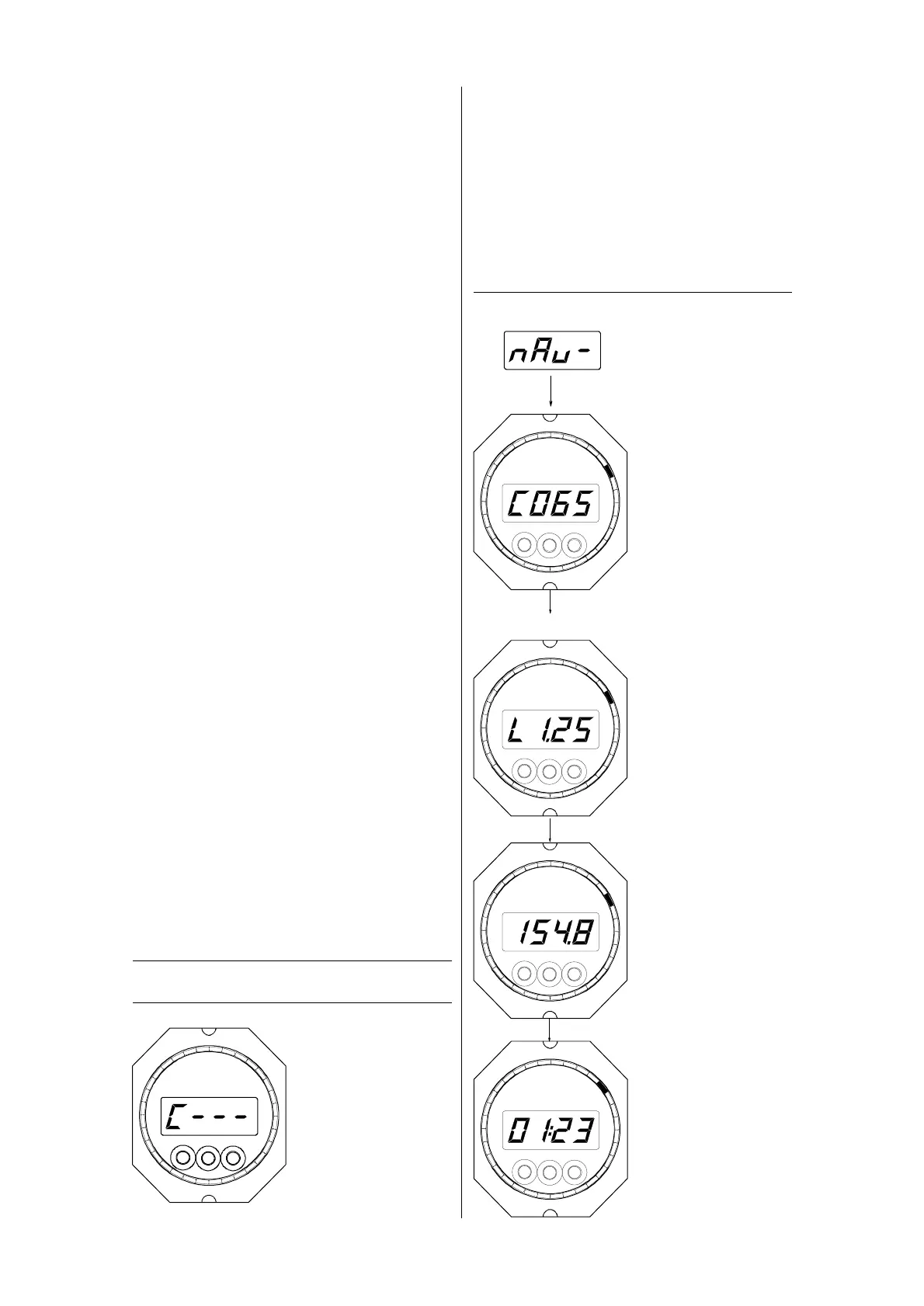

NavFunction:
After accessing the NAV Function at the sec-
ondary display level, you may switch between
programmed track "C", XTE, distance to way-
point and time to WP with the right button.
Programmed Track:
bearing to WP
The programmed mag-
netic track (bearing to way-
point) is displayed on the
LCD. Great circle or
rhumb line, according
to the GPS setup.
The analog LED-
pointer displays the
target heading to in-
tercept and follow the
programmed route.
➤
➤
➤
➤
Cross Track Error
The lateral deviation
from the programmed
track (left or right
from zero to 9,999
NM).
The analog LED-
pointer displays the
target heading to
intercept and follow
the programmed route.
➤
➤
Distance to Waypoint
Distance to the
active waypoint, as
received from the
GPS (great circle or
rhumb line, according
GPS-set-up).
The analog LED-
pointer displays the
target heading to inter-
cept and follow the pro-
grammed route.
➤
➤
Time to Way-
point
Estimated elapsed
time to waypoint
(hours and minutes)
derived from ground
speed and distance. .
Vocal Heading
Alarm
Echo-Box-1 required. With a compass in
the system, the heading alarm can be armed.
This is done by selecting the depth function
on a display unit and then pressing the right
button briefly.
The "E" will change into an "F" (full alarm).
To switch it off, press the left button; an "E"
(echo alarm only) will be displayed again (no
heading alarm).
For language selection (English or Ger-
man) see Echo Box Installation.
