31

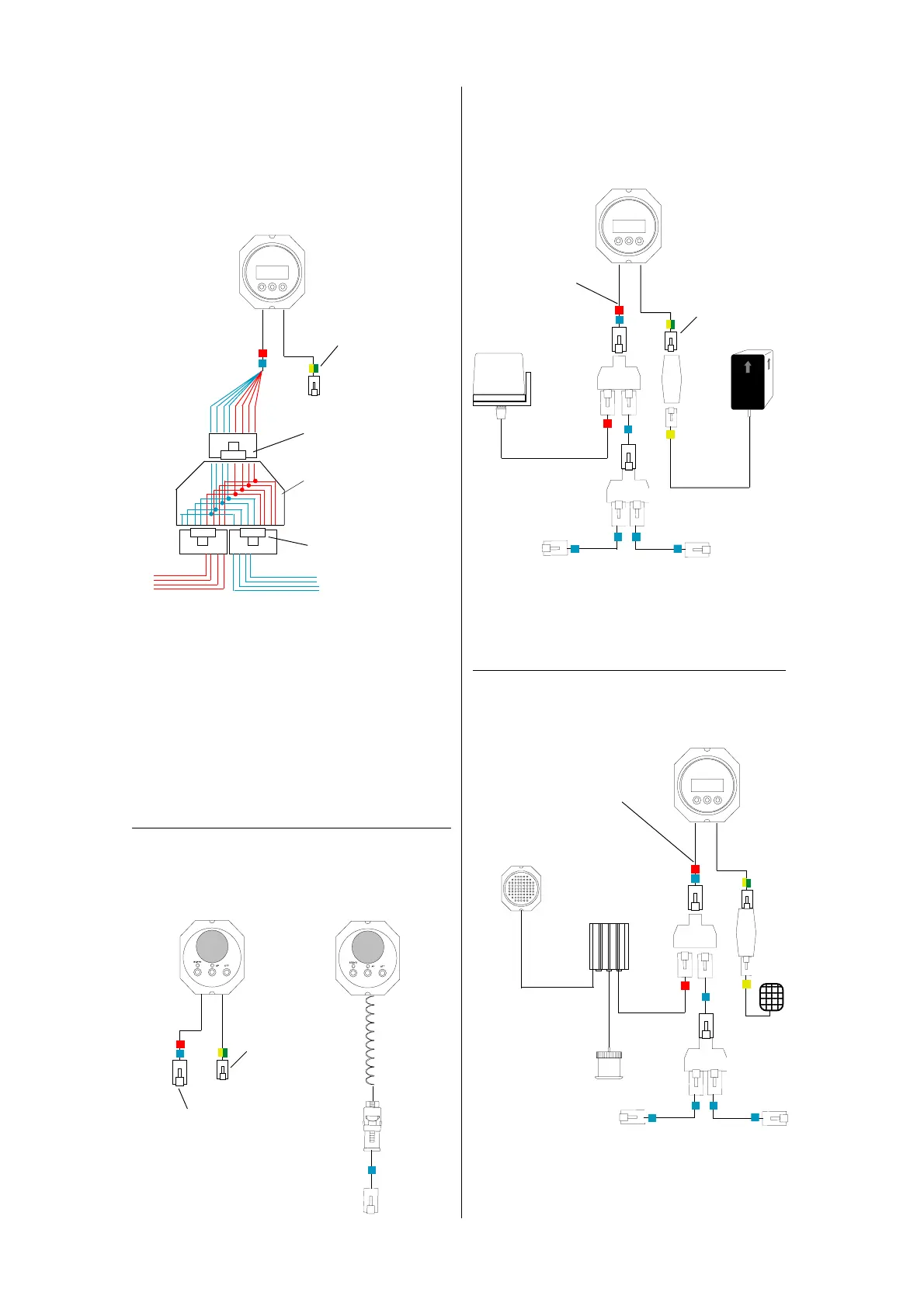

Compass Sensor and
Sonic Heading Gyro
Echo Box and Sensor
Echo
Box
Alarm Speaker
(only Echo-Box-1)
Bus, Power and
NMEA0183
Steering Wheel for
fixed installation
Servo Steering Wheel
Steering Wheel for
mobile installation
Display
The Flux Gate Sensor is connected to the
NMEA0183 input of the display.
Attention: use only the bus distributor
next to that display unit!
Bus, Power and
NMEA0183
Sonic
Heading
Gyro
Display
NMEA0183 Connection:
NMEA0183 equipment (like the Flux Gate
Sensor) is connected via the NMEA0183 Con-
nection of a display unit. Attention: use only
the bus distributor next to a display unit!
The NMEA-wires are not present in the bus
cable!
Remote
FBW unit:
only Bus
and Power
Bus
Flux Gate
Sensor
The Echo-Box is connected via the NMEA-
0183 Connection of a display unit.
Attention: use only the bus distributor
next to that display unit!
Bus
Depth
Sensor
NMEA
0183
NMEA0183
Sensor input:
(only Sonic
Heading-Gyro)
Bus, Power and
NMEA0183
Bus
Bus
Depth Alarm
(Echobox-2)
Display
12345678
12345678
12345678
CAN Bus
cable:
pin nr. 1..4
NMEA0183
cable:
pin nr. 5..8
3-way RJ-45 Dis-
tributor
The CAN Bus cable (blue markings) does
not carry the NMEA0183 wires (5 to 8).
Therefore it is not possible, to connect
NMEA0183 equipment (like a Flux Gate Sen-
sor or a GPS) to the CAN Bus. NMEA0183
devices can only be connected to the distribu-
tor that sits directly at a Display Unit.
RJ-45 plug
RJ-45 plug
Analog
Sensor
Analog
Sensor
12345
12345
12345
12345
12345
12345
