Yamaha Enduro 8 User Manual

Trim Flap Function
Mode Pre Selection
Analogue LED pointer
for Flap Angle
24

➤
➤
➤

➤

➤
➤
➤

➤

➤
➤
➤

➤
Mode Activa-
tion
Pre select a desired mode with the SE-
LECT-button and activate it with the ENTER-
button.

➤
➤
➤

➤
Warnings

➤
➤
➤

➤
The LCD is
blinking,
when a new
mode has
been pre se-
lected, but
not yet acti-
vated with
the ENTER-
button

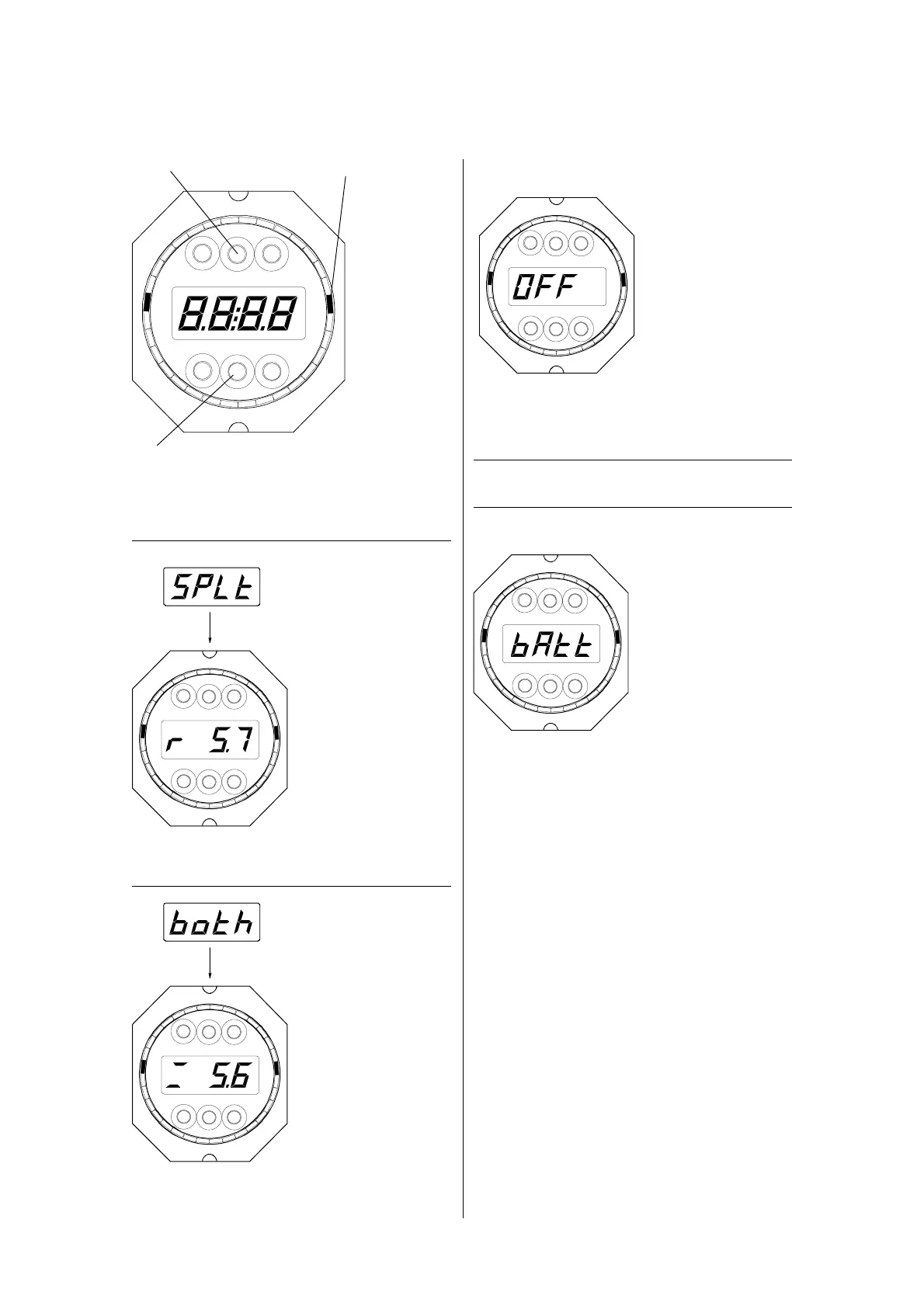

Manual Split Mode
The left and right flap
can be moved indepen-
dently with the up and
down arrow buttons.
This mode works
also in the case of a
defective flap angle
sensor. The flap posi-
tion must then be
checked visually,
since there would be
no display of it.
Upper and lower flap
angle limit (t6: and t7:) are
not valid in this mode.
Manual "both"-
Mode
The selected flap
angle will be automati-
cally maintained by
both flaps.
The upper and
lower flap angle limits
(t6: and t7:) will be
observed in this
mode.
OFF-Mode
The TRIMBOX will
be in OFF-mode
initially, when power
is turned on.
If the trim box is
not powered or not
connected to the
bus, the LCD will
also show OFF and
the flap angle LED's will
stay dark.
Low Battery
Alarm
The battery alert
comes on when the
supply voltage has
dropped below 10
Volts. It disappears
only after voltage has
increased above 11
Volts. The display stops
working below 9 Volts.
