3 - 32
CHK
ADJ
CHECKING THE COOLING SYSTEM
EB303230
CHECKING THE COOLING SYSTEM
1. Remove:
• bottom cowling
• front cowling
Refer to “COWLINGS”.

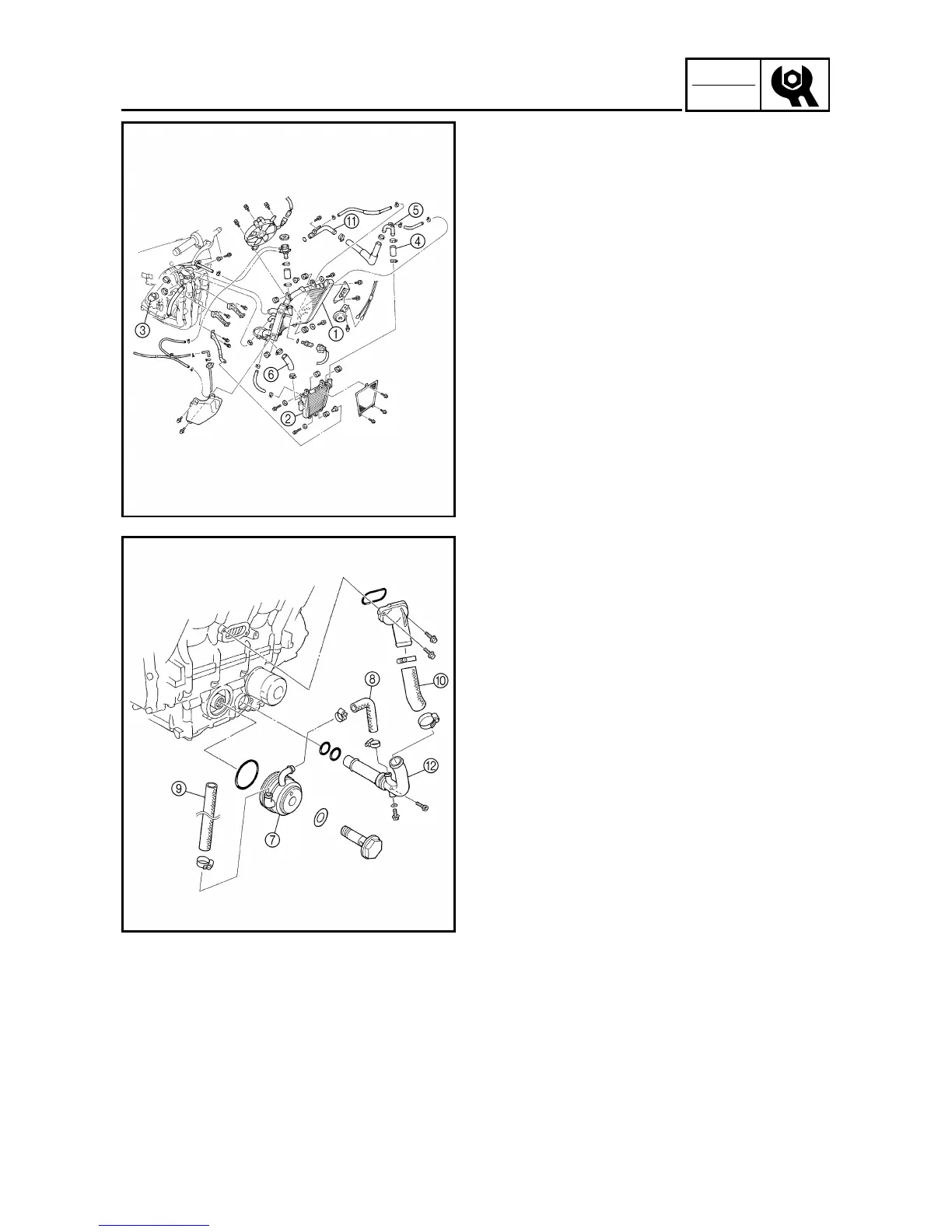

2. Check:
• upper radiator 1
• lower radiator 2
• radiator inlet hose 3
• radiator outlet hose 4
• radiator outlet pipe 5
• radiator joint hose 6
• oil cooler 7
• oil cooler inlet hose 8
• oil cooler outlet hose 9
• water jacket joint inlet hose 0
• water pump inlet pipe A
• water pump outlet pipe B
Cracks/damage → Replace.
Refer to “COOLING SYSTEM” in chap-
ter 5.
3. Install:
• front cowling
• bottom cowling
Refer to “COWLINGS”.
