8 - 31
–+
ELEC
ELECTRICAL CONTROL SYSTEM

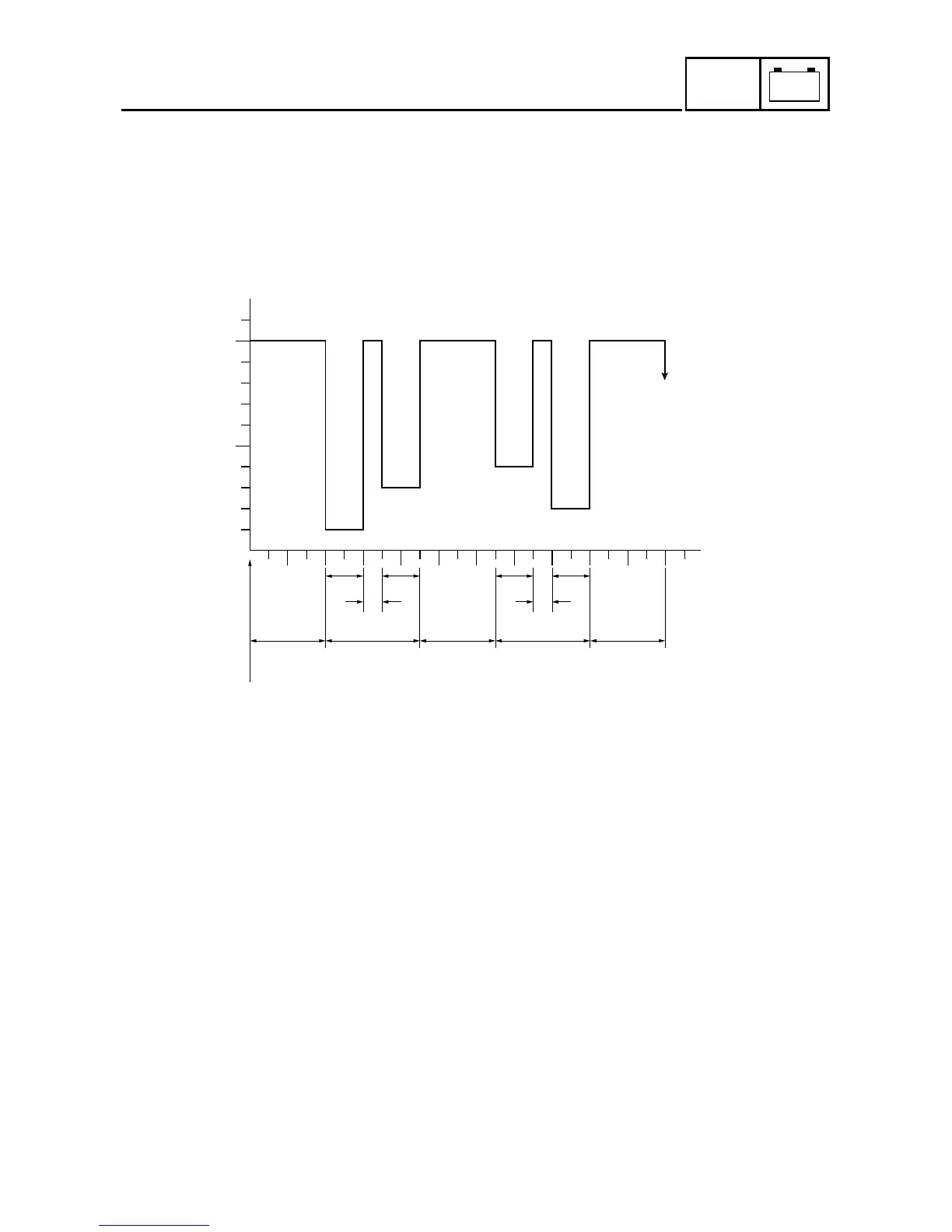

Tachometer display sequence (engine not running)
1
10,000 r/min for 2.0 seconds
2
First condition code (13 = intake air pressure sensor)
3
Second condition code (42 = speed sensor)
4
1st digit of condition code for 1.0 second
5
10,000 r/min for 0.5 second
6
2nd digit of condition code for 1.0 second
51
0
Time
(seconds)
5
0
10
Revolution
(
×
10
3
r/min)
46
5
12
46
5
1
1
3
Repeat
Main switch is turnd on
366
368
