2 - 26
SPEC

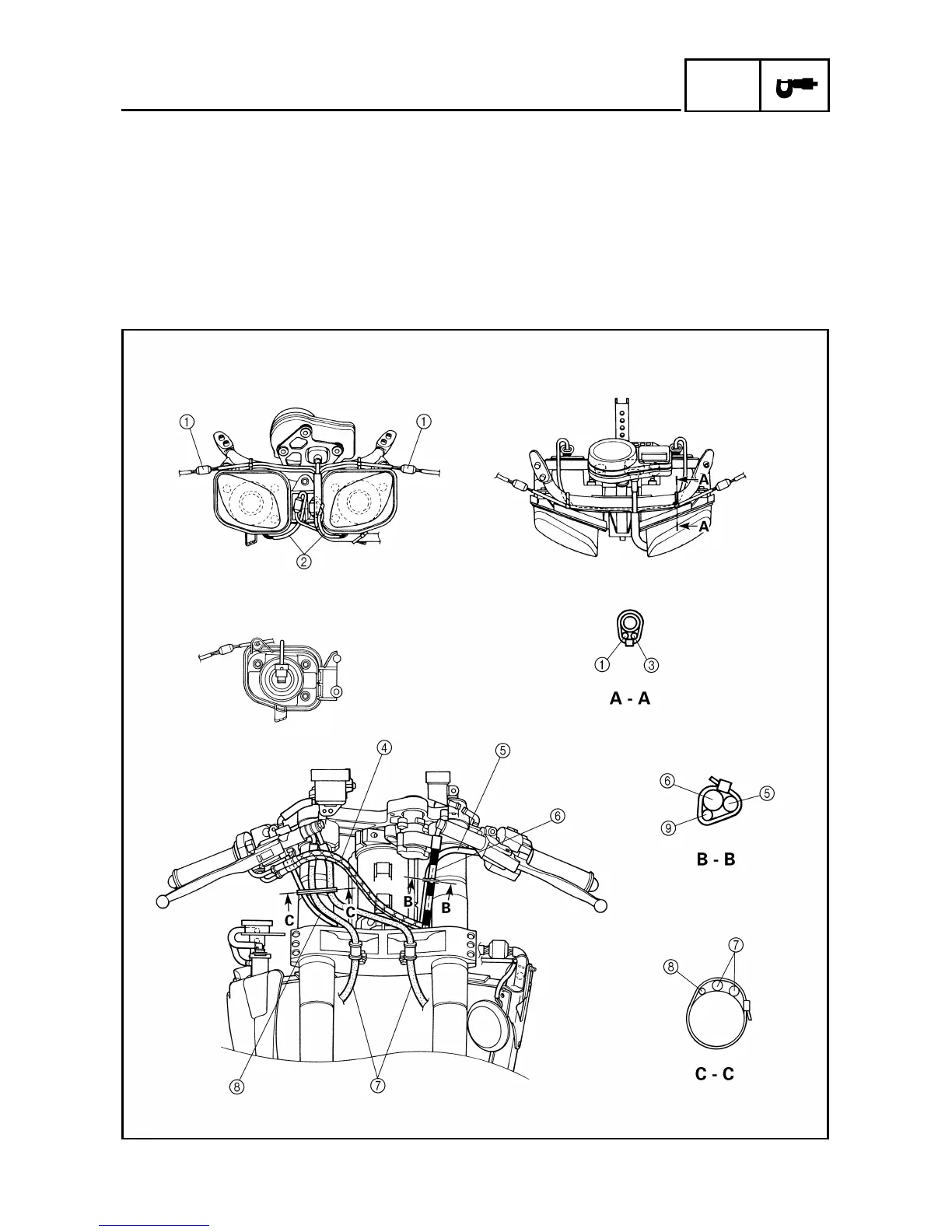

CABLE ROUTING
1 Front turn signal coupler
2 Auxiliary light lead
3 Headlight lead
4 Throttle cable
5 Left handlebar switch lead
6 Clutch hose
7 Front brake hose
8 Right handlebar switch lead
9 Main switch lead
CABLE ROUTING
