7 - 22
CHAS
EB702301
Order
Job/Part
Q’ty
Remarks

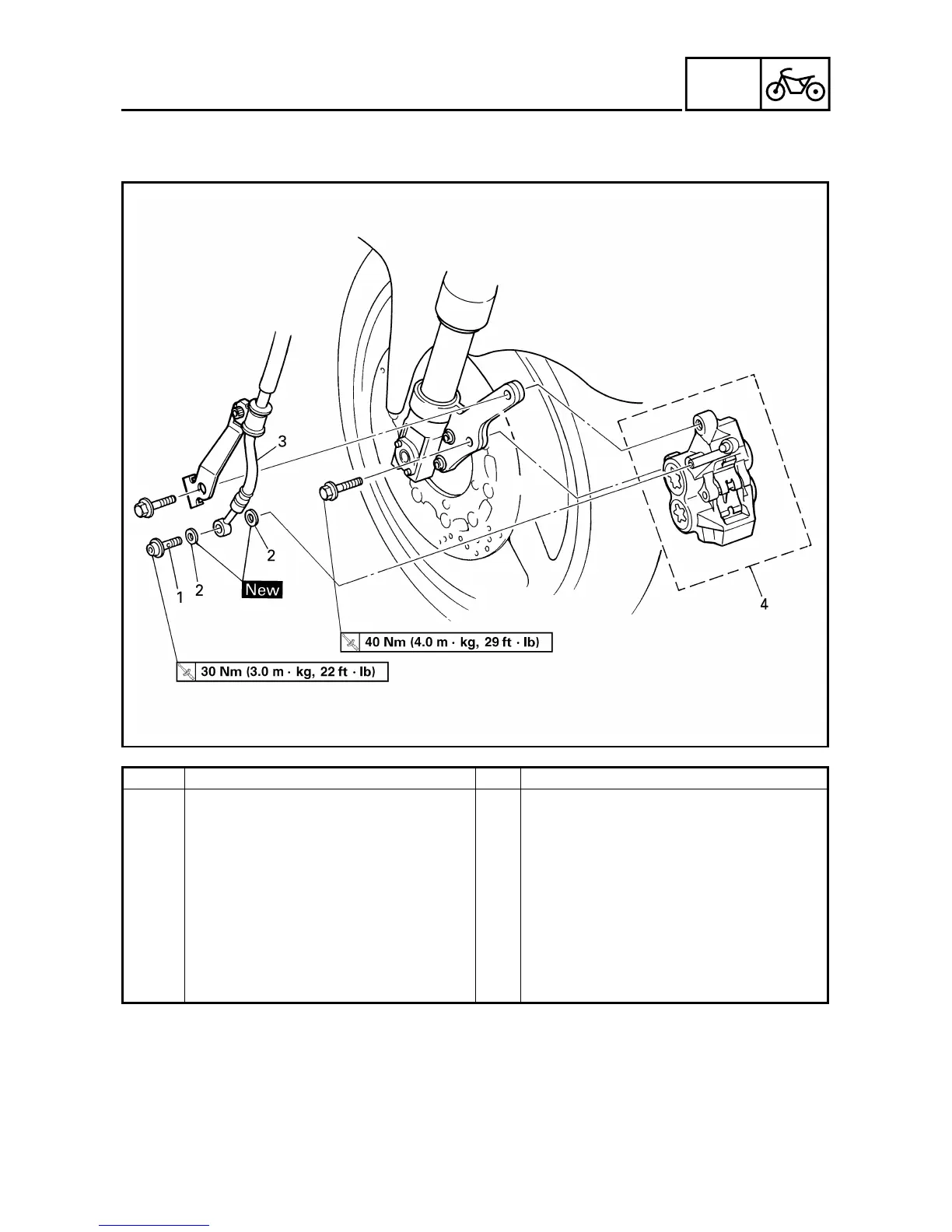

Removing the front brake calipers
Remove the parts in the order listed.
The following procedure applies to
both of the front brake calipers.
Brake fluid
Drain.
1
Union bolt
1
2
Copper washer
2
3
Brake hose
1
4
Brake caliper
1
For installation, reverse the removal
procedure.
FRONT AND REAR BRAKES
