Yamaha YZFR7P User Manual

3 - 41
CHK
ADJ
ADJUSTING THE SHIFT PEDAL/
ADJUSTING THE DRIVE CHAIN SLACK
EB304081

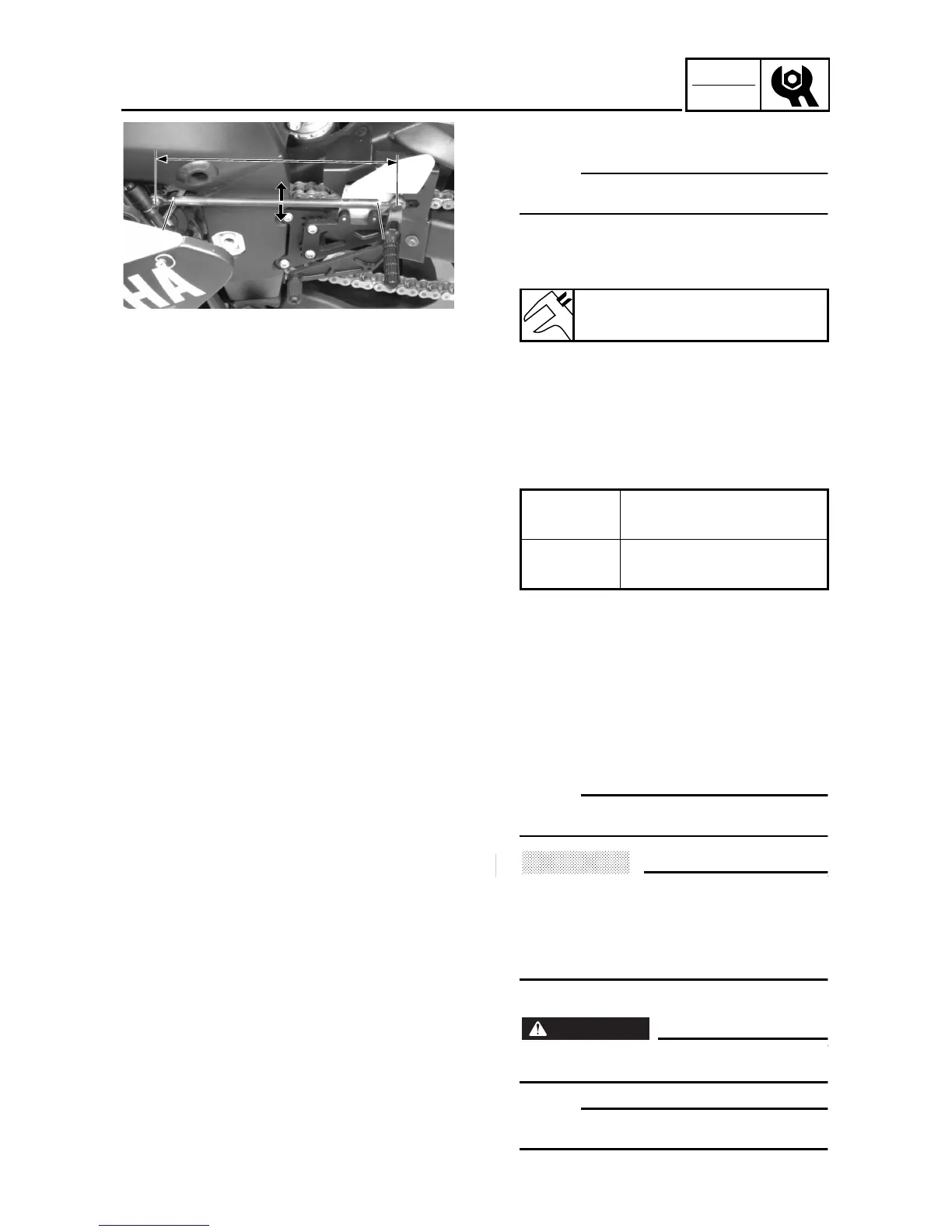

ADJUSTING THE SHIFT PEDAL
NOTE:
The shift pedal position is determined
by the installed shift rod length a.
1. Measure:
• installed shift rod length a
Incorrect → Adjust.
2. Adjust:
• installed shift rod length a
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
a. Loosen both locknuts 1.
b. Turn the shift rod 2 in direction b or
c to obtain the correct shift pedal
position.
c. Tighten both locknuts.
d. Make sure that the installed shift rod
length is within specification.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
Installed shift rod length
294 mm (11.57 in)
Direction b
Installed shift rod length
decreases.
Direction c
Installed shift rod length
increases.
1

1

1

1

aa
bb
cc
EB304092
ADJUSTING THE DRIVE CHAIN SLACK
NOTE:
The drive chain slack must be checked at
the tightest point on the chain.
ACHTUNG:
CAUTION:
A drive chain that is too tight will over-
load the engine and other vital parts,
and one that is too loose can skip and
damage the swingarm or cause an acci-
dent. Therefore, keep the drive chain
slack within the specified limits.
1. Stand the motorcycle on a level surface.
WARNING
WARNING
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
