ENG
4 - 8
CAMSHAFTS
EB401000
CAMSHAFTS
Order
Job/Part
Q’ty
Remarks

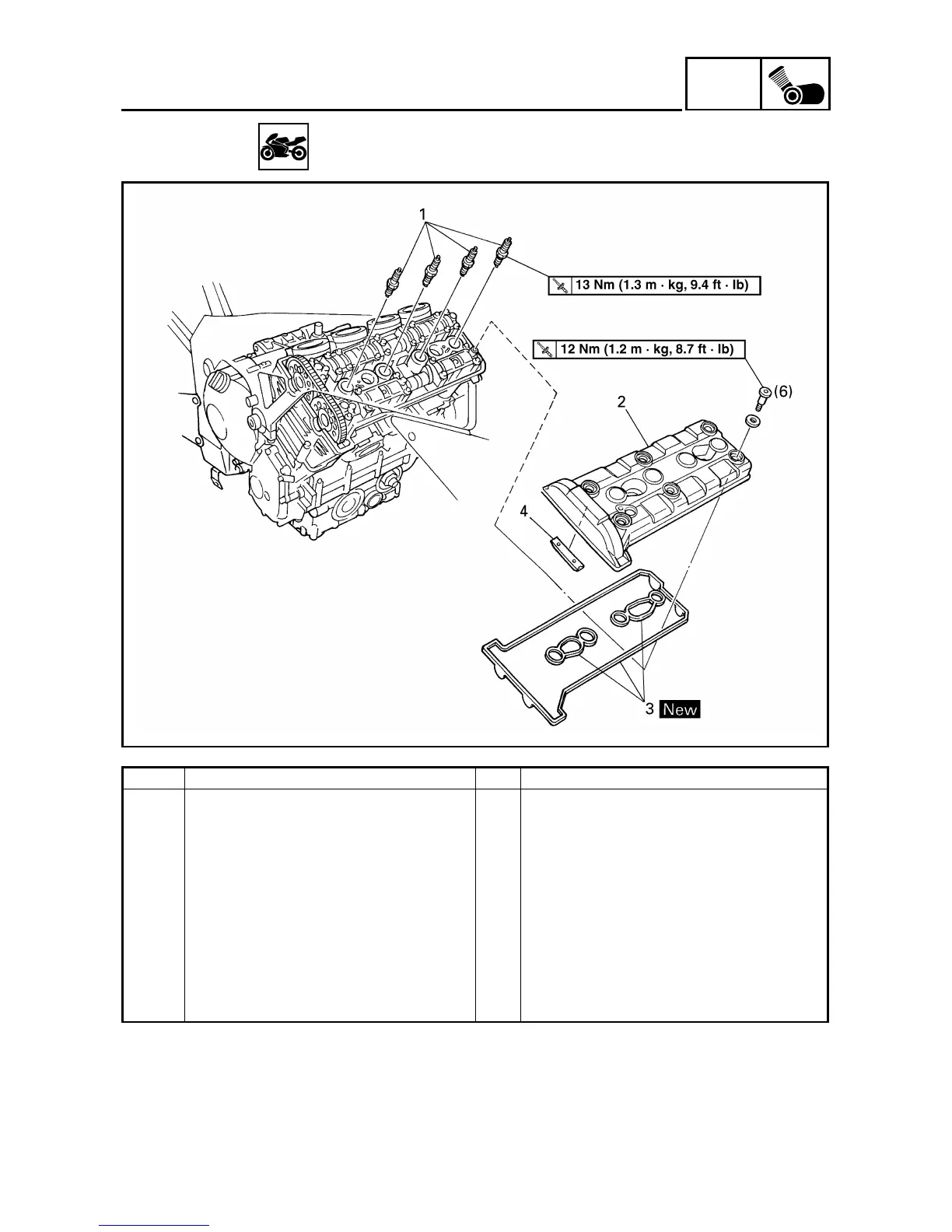

Removing the cylinder head cover
Remove the parts in the order listed.
Carburetor assembly
Refer to “
CARBURETORS” in chapter 6.
Radiator assembly and thermostat
assembly
Refer to “RADIATOR AND THERMO-
STAT” and “THERMOSTAT ASSEM-
BLY” in chapter 5.
1
Spark plug
4
2
Cylinder head cover
1
3
Cylinder head cover gasket
1
4
Timing chain guide (top side)
1
For installation, reverse the removal
procedure.
