TRANSMISSION
EB413100

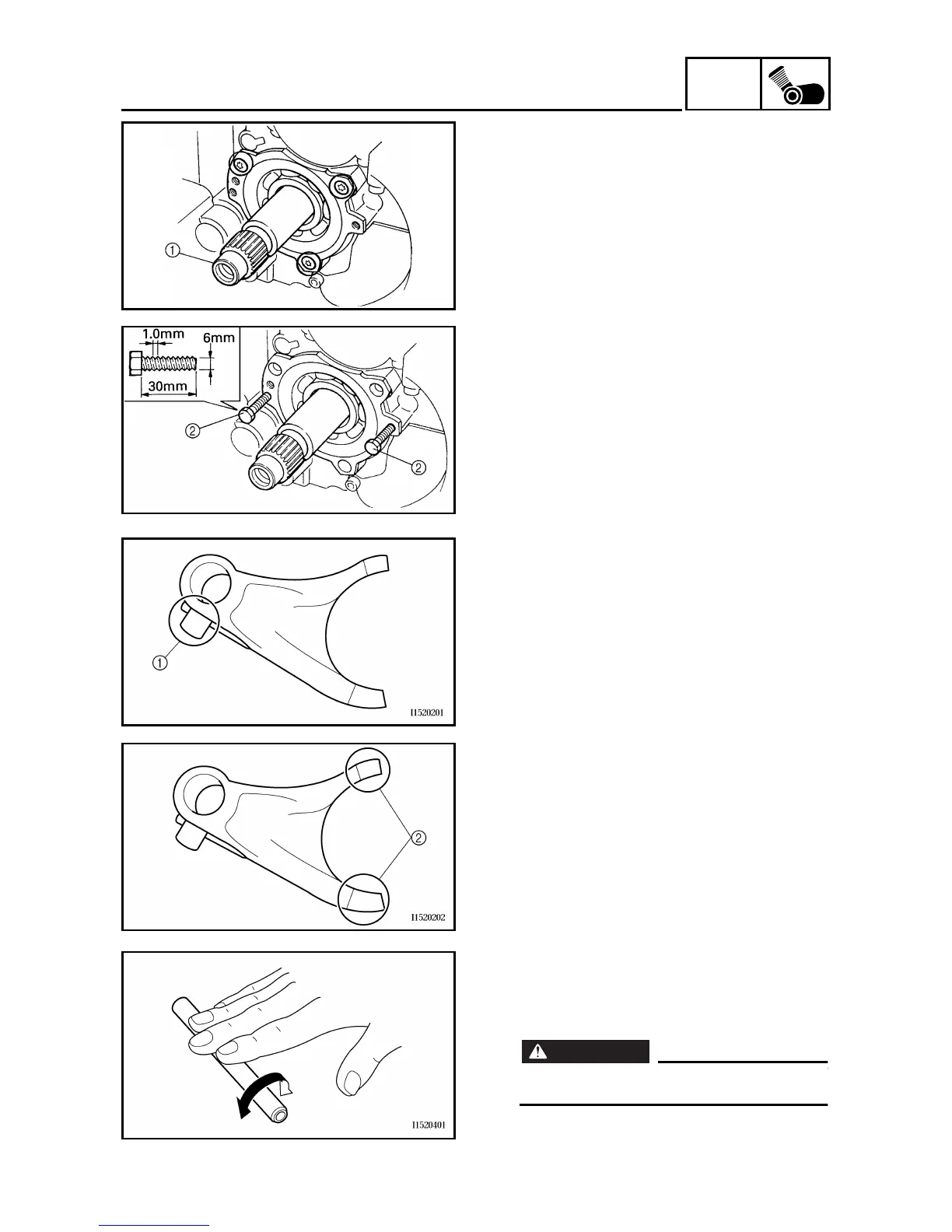

REMOVING THE TRANSMISSION
1. Remove:
• main axle assembly 1
(with the Torx

wrench T30)
â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼
a. Insert two bolts 2 of the proper size,
as shown in the illustration, into the
main axle assembly bearing housing.
b. Tighten the bolts until they contact
the crankcase surface.
c. Continue tightening the bolts until the
main axle assembly comes free from
the upper crankcase.
â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–²
EB413400
CHECKING THE SHIFT FORKS
The following procedure applies to all of
the shift forks.
1. Check:
• shift fork cam follower 1
• shift fork pawl 2
Bends/damage/scoring/wear →
Replace the shift fork.
2. Check:
• shift fork guide bar
Roll the shift fork guide bar on a flat
surface.
Bends → Replace.
WARNING
WARNING
Do not attempt to straighten a bent
shift fork guide bar.
