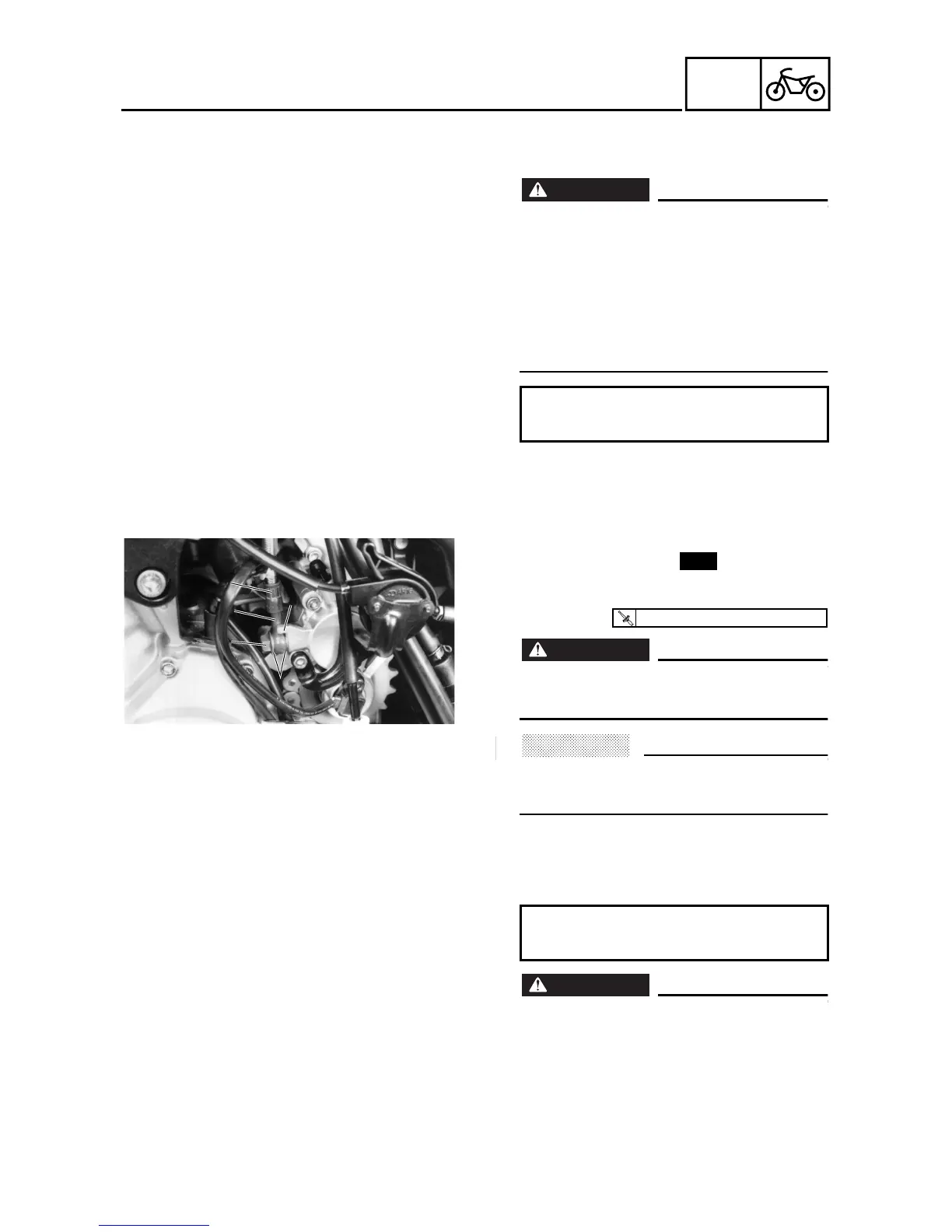

ASSEMBLING AND INSTALLING THE
CLUTCH RELEASE CYLINDER
WARNING
WARNING
• Before installation, all internal clutch
components must be cleaned and
lubricated with clean or new clutch
fluid.
• Never use solvents on internal clutch
components as they will cause the oil
seal and dust seal to swell and distort.
• Whenever a clutch release cylinder is
disassembled, replace the oil seal and
dust seal.
Recommended clutch fluid
Brake fluid DOT 4
1. Check:
• copper washer 1
• clutch hose 2
• union bolt 3
WARNING
WARNING
Proper clutch hose routing is essential
to insure safe motorcycle operation.
Refer to “CABLE ROUTING”.
ACHTUNG:
CAUTION:
When installing the clutch hose onto the
clutch release cylinder, make sure that
the pipe a touches the projection b.
2. Fill:
• clutch fluid reservoir
(with the specified amount of the rec-
ommended clutch fluid)
WARNING
WARNING
• Use only the designated clutch fluid.
Other clutch fluids may cause the rub-
ber seals to deteriorate, causing leak-
age and poor clutch performance.
• Refill with the same type of clutch
fluid that is already in the system.
Mixing clutch fluids may result in a
harmful chemical reaction, leading to
poor clutch performance.
Recommended clutch fluid
Brake fluid DOT 4
2
2
3
3
aa
1
1
bb
New
T
R
.
.
26 Nm (2.6 m · kg, 19 ft · lb)
