7 - 52
CHAS
EAS00313

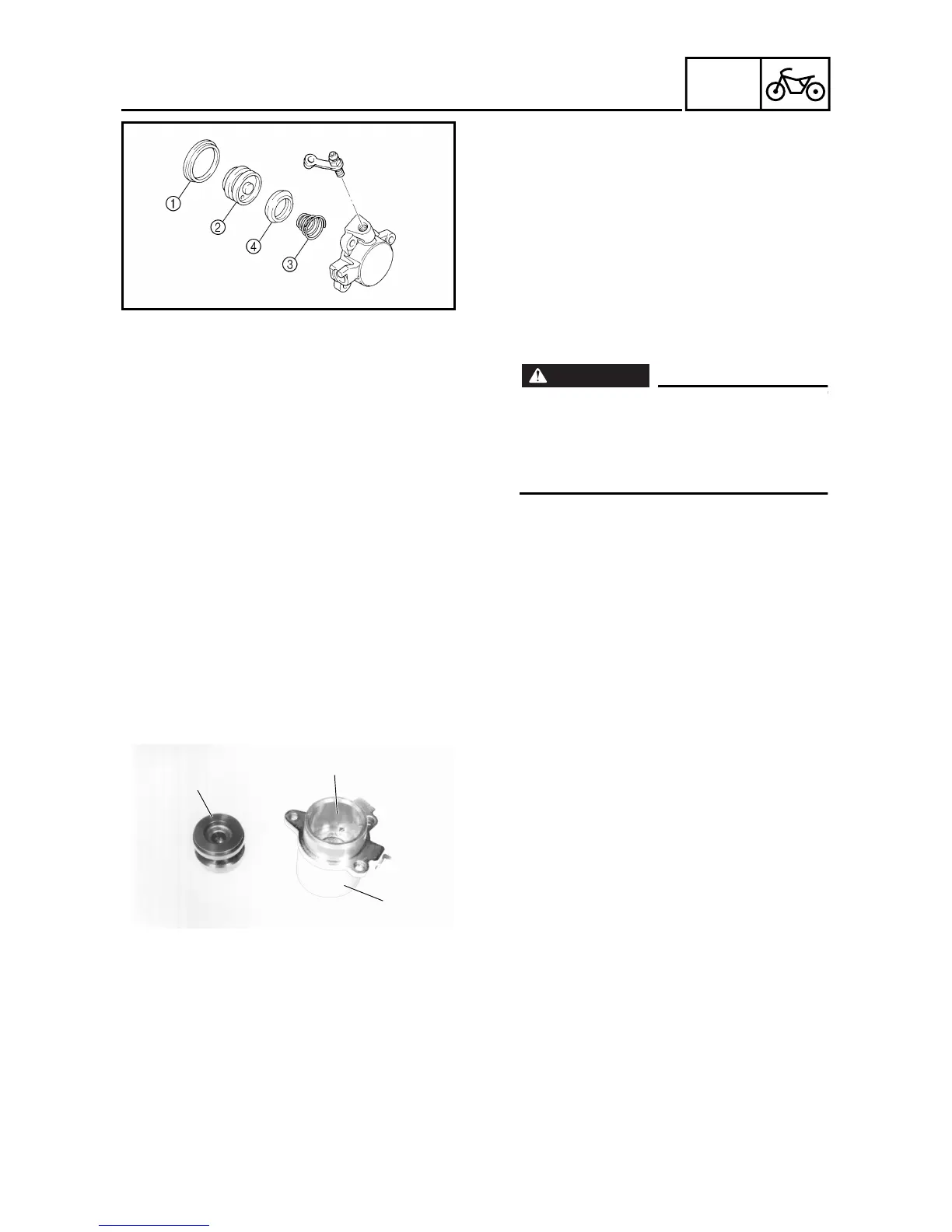

DISASSEMBLING THE CLUTCH RELEASE
CYLINDER
1. Remove:
• dust seal 1
• clutch release cylinder piston 2
• spring 3
• oil seal 4
▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼ ▼
a. Blow compressed air into the clutch
hose joint opening a to force out the
piston from the clutch release cylin-
der.
WARNING
WARNING
• Cover the clutch release cylinder with
a rag. Be careful not to get injured
when the piston is expelled from the
clutch release cylinder.
• Never try to pry out the clutch release
cylinder piston.
b. Remove the clutch release cylinder oil
seal.
▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
EAS00314
CHECKING THE CLUTCH RELEASE
CYLINDER
1. Check:
• clutch release cylinder body 1
Cracks/damage → Replace the clutch
release cylinder.
• clutch release cylinder 2
• clutch release cylinder piston 3
Rust/scratches/wear → Replace the
clutch release cylinder and clutch
release cylinder piston as a set.
1

1

2

2

3

3

HYDRAULIC CLUTCH
