5 - 5
COOL
1
3
2
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)

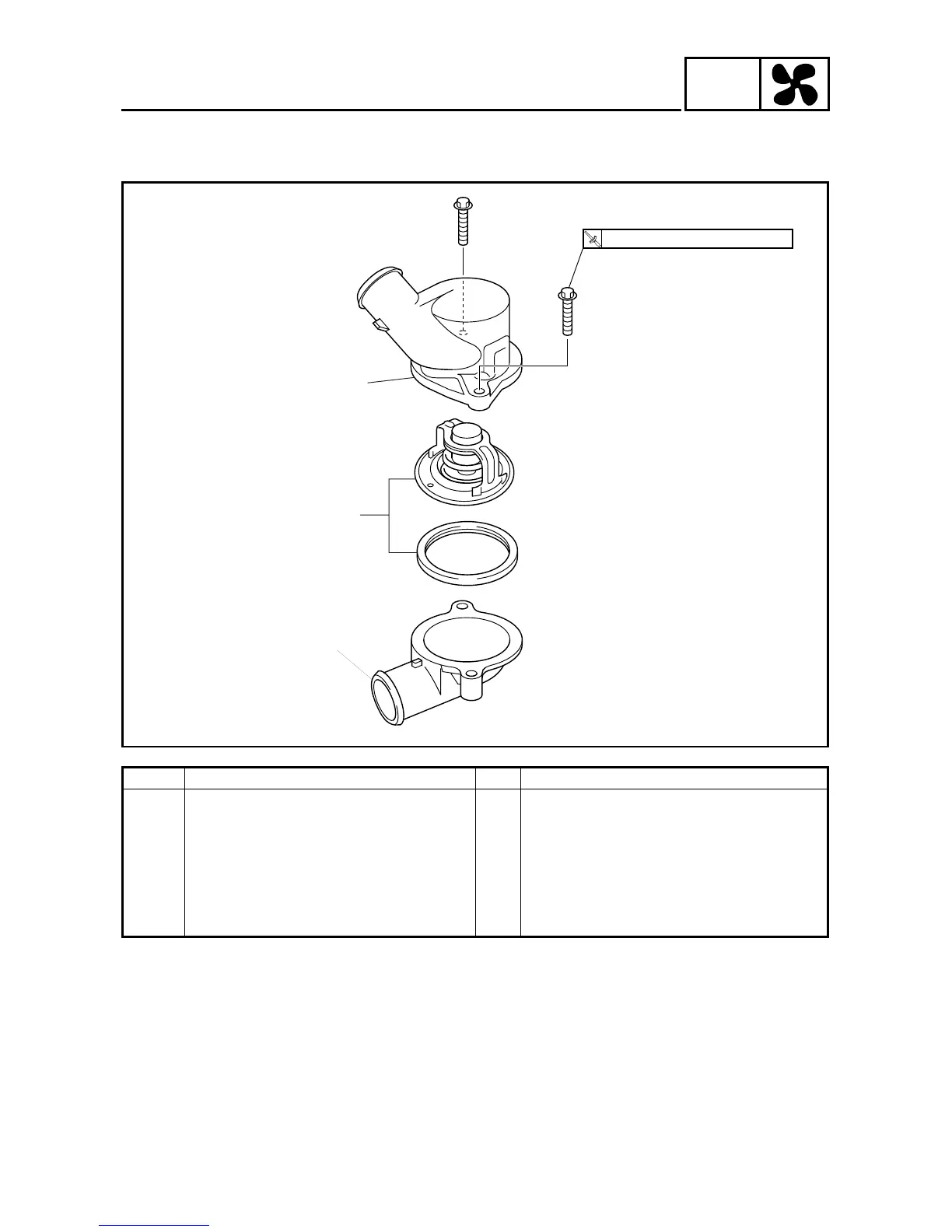

RADIATOR AND THERMOSTAT
EB502010
Order
Job/Part
Q’ty
Remarks
Disassembling the thermostat
assembly
Remove the parts in the order listed.
1
Thermostat housing cover
1
2
Thermostat
1
3
Thermostat
housing
1
For assembly, reverse the disassembly
procedure.
