CAMSHAFTS

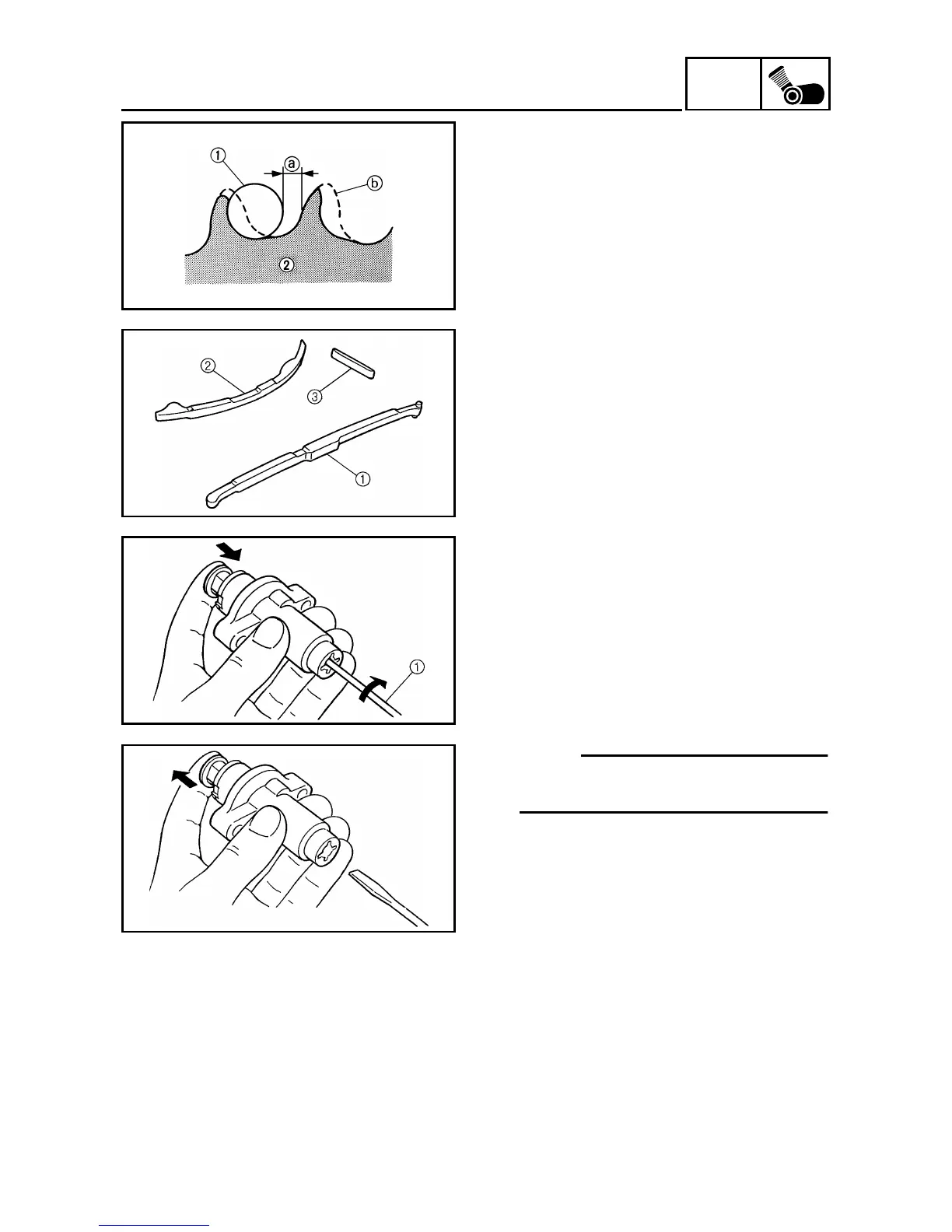

2. Check:
• camshaft sprocket
More than 1/4 tooth wear a → Replace
the camshaft sprockets and the timing
chain as a set.
a 1/4 tooth
b Correct
1 Timing chain roller
2 Camshaft sprocket
3. Check:
• timing chain guide (exhaust side) 1
• timing chain guide (intake side) 2
• timing chain guide (top side) 3
Damage/wear → Replace the defective
part(-s).
EB401430
CHECKING THE TIMING CHAIN
TENSIONER
1. Check:
• timing chain tensioner
Cracks/damage/rough movement →
Replace.
â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼ â–¼
a. Lightly press the timing chain ten-
sioner rod into the timing chain ten-
sioner housing by hand.
NOTE:
While pressing the timing chain ten-
sioner rod, wind it clockwise with a thin
screwdriver 1 until it stops.
b. Remove the screwdriver and slowly
release the timing chain tensioner
rod.
c. Make sure that the timing chain ten-
sioner rod comes out of the timing
chain tensioner housing smoothly. If
there is rough movement, replace the
timing chain tensioner.
â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–² â–²
