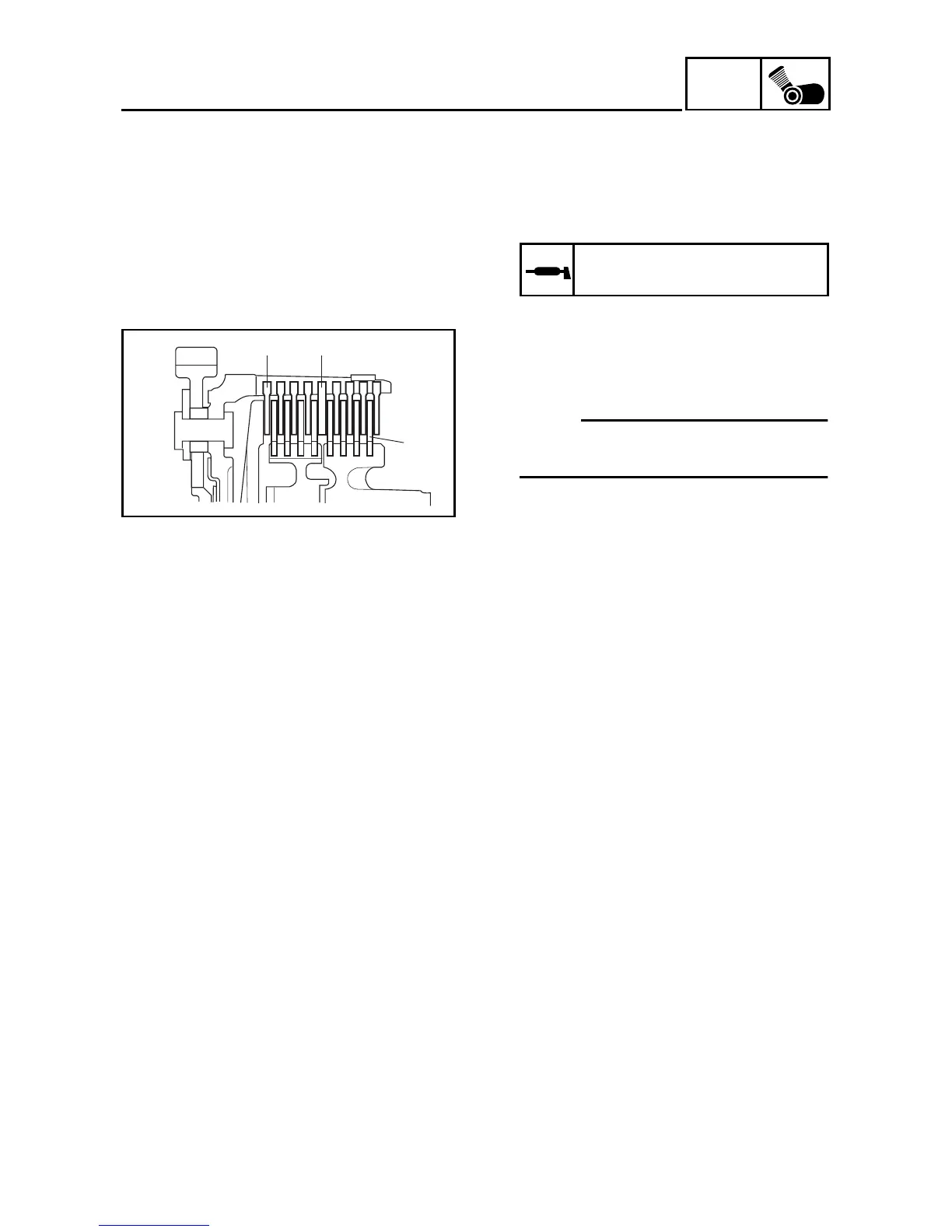

4 - 47
ENG
CLUTCH
4.
Bend the lock washer tab along a flat
side of the nut.
5.
Lubricate:
•
friction plates
•
clutch plates
(with the recommended lubricant)
Recommended lubricant
Engine oil
6.
Install:
•
friction plates
1
- 3.00 mm (0.12 in)
•
clutch plates
2
•
friction plate
3
- 3.85 mm (0.15 in)
NOTE:
First, install a friction plate and then
alternate between a clutch plate and a
friction plate.
1
3
2
178
180
