ENG
4 - 52
OIL PAN AND OIL PUMP
EB411003
Order
Job/Part
Q’ty
Remarks

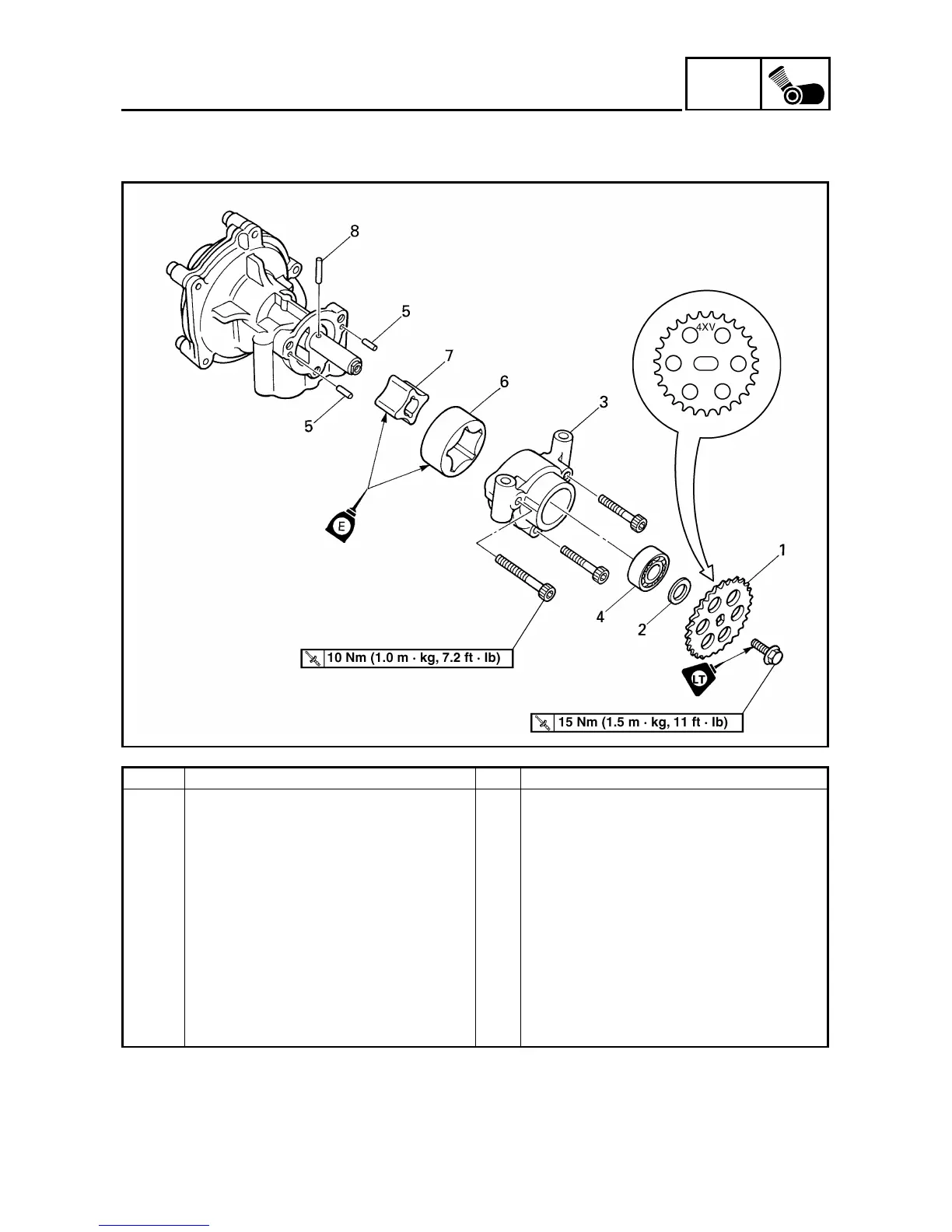

Removing the oil pump
Remove the parts in the order listed.
1
Oil/water pump assembly driven
sprocket
1
2
Washer
1
3
Oil pump housing
1
4
Bearing
1
5
Pin
2
6
Oil pump outer rotor
1
7
Oil pump inner rotor
1
8
Pin
1
For installation, reverse the removal
procedure.
